Crnak out mechanism replacement

Handy Person from 27707

Sep 13, 2024 2:10 pm

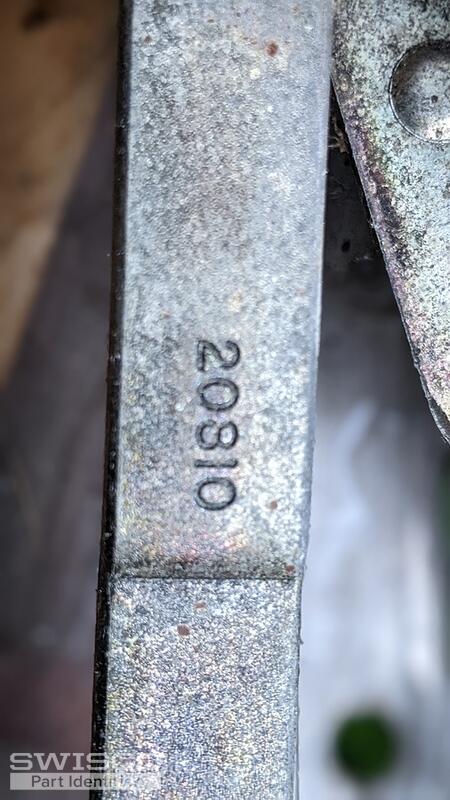

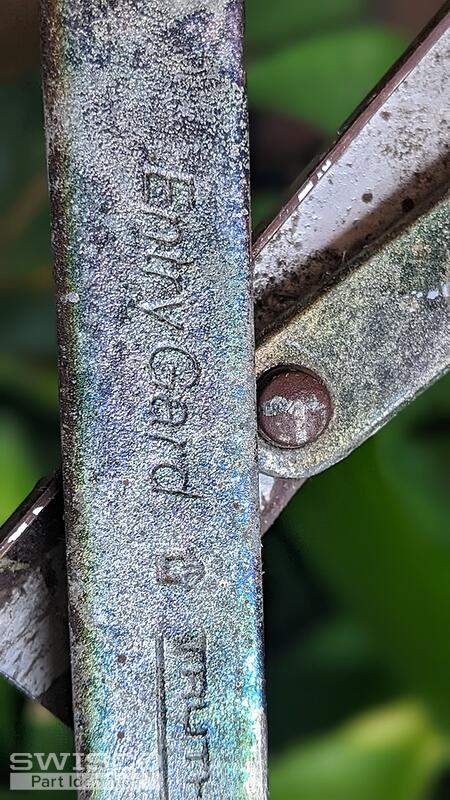

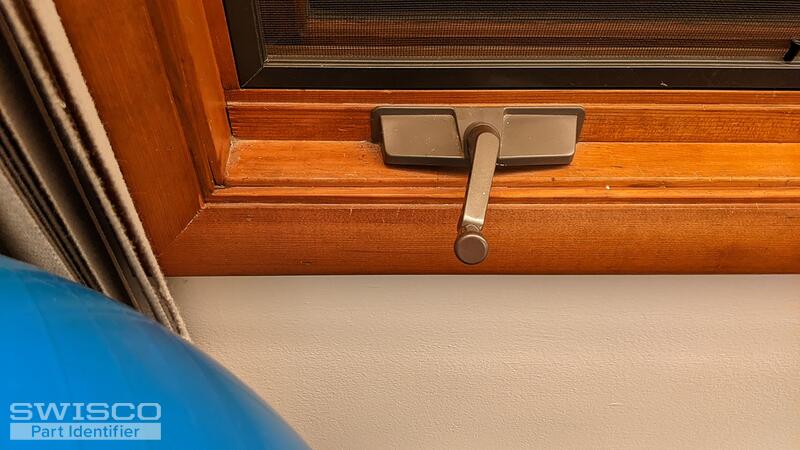

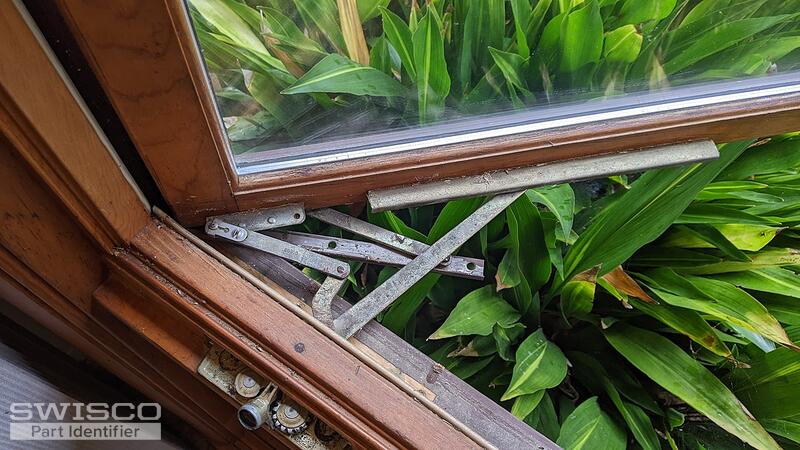

These were Peachtree windows that were put in about 35 years ago. As you can see from the photos it opens out to the left. The number on the mechanism is 2081. And the wrds on the mechanism are Entry Gard TRUTH

5 user uploaded images

4 Replies

Jasmine from SWISCO

Sep 17, 2024 4:34 pm

Thanks for contacting us! Your Peachtree window operator can be replaced with the 39-032 EntryGard Dual Arm Operator. The link arm from this operator appears to be connected to the 39-517 Clip-Stud Bracket. I am confident this is the replacement you'll need but be sure to look over the dimensions.

You'll find the compatible handles, covers, and other hardware tagged below.

Dimensions for 39-032

Handy Person from 27707

Sep 28, 2024 4:07 pm

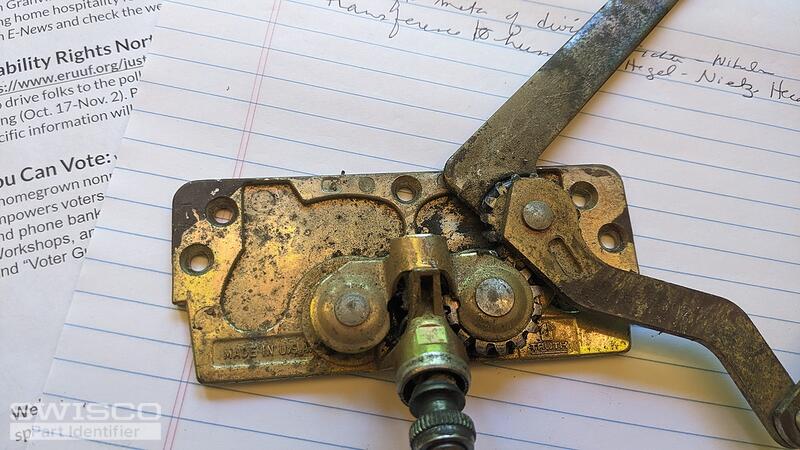

You previously recommended the Entry Gard Dual Arm Operator Product Code: 39-032 as a replacement for the broken mechanism in my Peachtree window, but the photos I sent you were taken with some of the mechanism concealed in the window. When I was finally able to get the mechanism out of the window and measure it, The arms look to be identical to those of the Entry Gard Dual Arm Operator Product Code: 39-032. However, the base was different. It is 4 7/8 inches in length X 2 1/6 inches wide, The outer holes are 3 15/16 inches apart on center. The holes in the middle are 4 7/16 apart on center. Just want to make sure the Entry Gard Dual Arm Operator Product Code: 39-032 b will work before ordering. Thanks. Michael

1 user uploaded image

Jasmine from SWISCO

Sep 30, 2024 9:23 am

Your casement window operator is an older version of the 39-032. Since the installation hole spacing is the same, this operator should work well for your repairs.

This is the best replacement match we have for your operator.
