Custom Balance
Stamp: "27 1/2 3 EL Caldwell"
Quantity:2
Shoe width: 7/8"

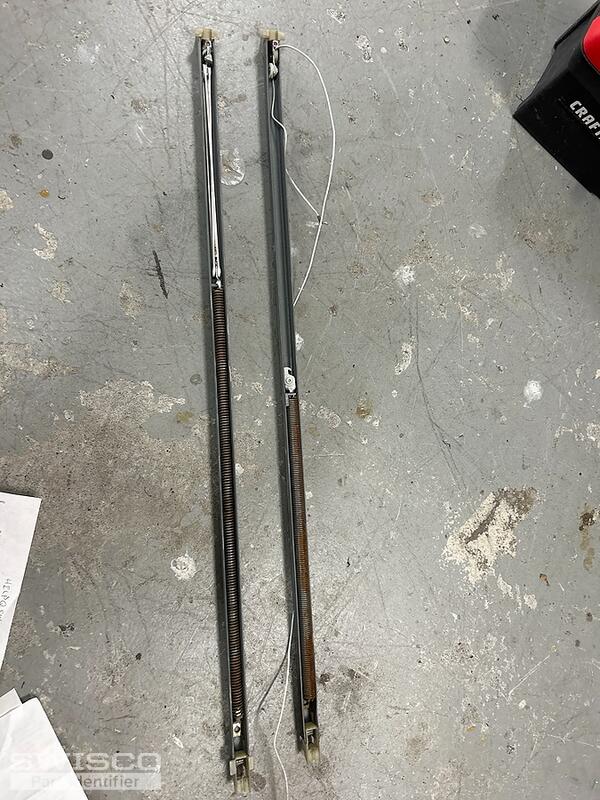

Thanks for reaching out to us! We can help with this though it must be a custom order due to the channel length and 7/8" shoe depth. However, it looks like you may be showing two different balances here. One has winged top and bottom fittings while the other has a wingless top fitting and winged bottom fitting. Can you confirm if the wings broke off? You can also check an identical window in the house, if possible, as a reference.
Hey there, Emily isn't here today but I'll do my best to assist you.
It's very odd for a window to have two different balance configurations installed on either side. They should be identical. That means someone must have installed the wrong part in this window at some point in the past, but I have no way of determining which one.
As this is a custom order, you'll need to decide which one you want us to make for you. The one that has a non-winged top or the one that has the winged top.
As for the shoe, at 7/8" deep, that would be our 15-029.
Once you verify which version of these balances you want, we can move forward with this custom order.
Thank you for your follow up and assistance.

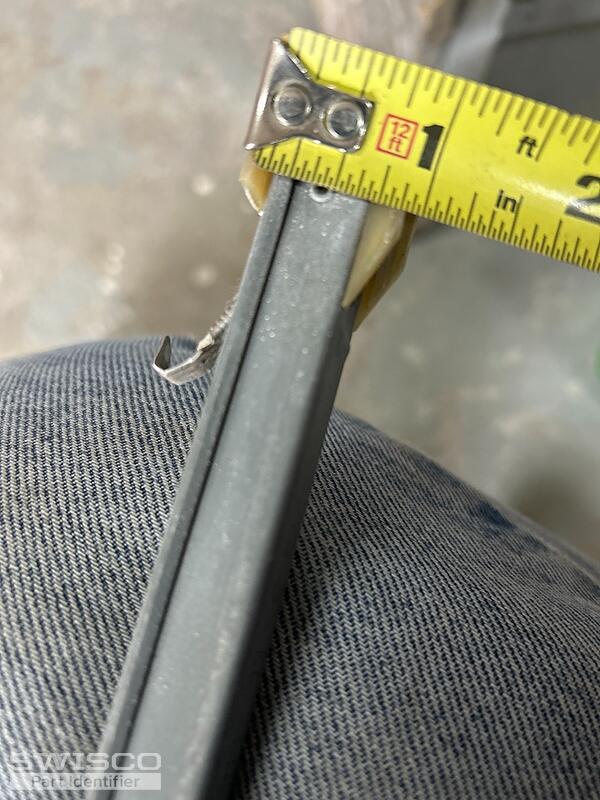

I was able to re-measure the bottom shoe, and can confirm that it is actually 1", and not 7/8".
The length is 28-1/2", and has a stamp that says "27.5-3". But the weight of the sash is 23lbs.
For the winged vs. non-winged, we will take the winged top and bottom balance, at a quantity of (2).
Thank you!
Thanks for verifying! That would be our Series 380, but custom made with a special 28-1/2" long metal channel.
Please give me a little time to confirm the availability of this size and I'll get back to you ASAP!
Thank you so much for your patience! We're good on our end. I'll go ahead and email you a purchase link and price quote that will let you add 2 of these to your cart. You may then checkout as normal.
