A quick learner from USA says:
The metal to metal length is 34", it is a series 385. The weight of my window is 40lbs.

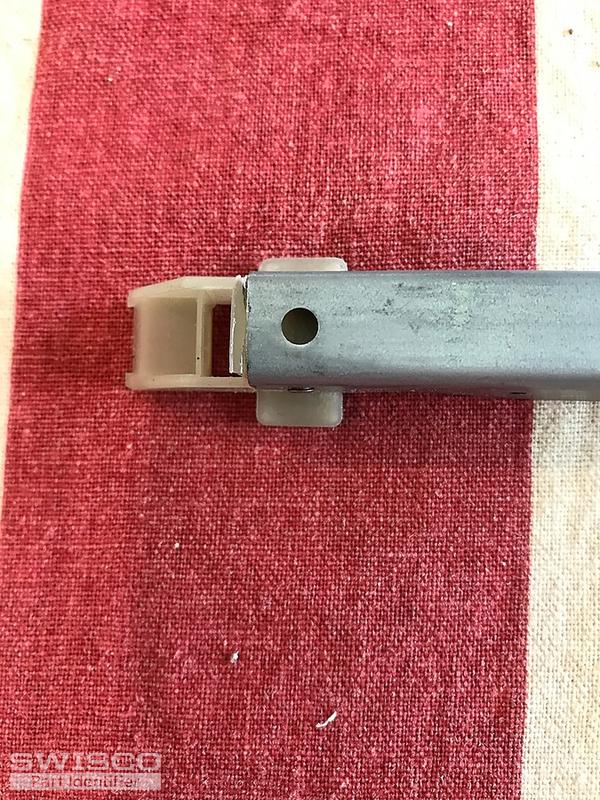

Thumbnail of the uploaded file named image_123927839 (1).JPG
Thumbnail of the uploaded file named image_123927839 (2).JPG
Thumbnail of the uploaded file named image_123927839 (3).JPG
Thumbnail of the uploaded file named image_123927839.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-34 or S385-34 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. The stamp on the back of your metal channel should tell you what spring strength option you need, but you can also look at the chart under the product description and choose the option that will support a 40-pound sash.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
