Custom Balance Request

Start a new Discussion

Friend

Mar 28, 2024 3:24 pm

Shoe width: 1-1/16"
Metal Length: 28"
Stamp: "27 5"

3 user uploaded images

5 Replies

Friend

Mar 28, 2024 3:50 pm

I don't know if you got this additional info in the email I sent so here it is again in case you need it.

The metal lips sticks out about a 1/16" on each side of the back side for a total of 5/8" wide on the back side, and 1/2" wide on the front side. Hope that helps.

Emily from SWISCO

Apr 1, 2024 10:58 am

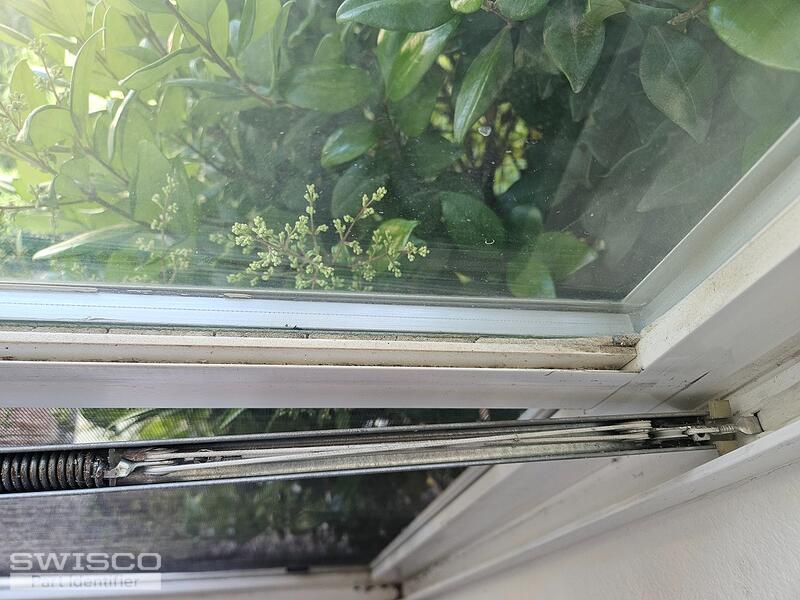

Hello there! Thank you for reaching out to us. We should be able to help with this. Could you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? Can you also confirm the number of balances you're looking to replace?

Friend

Apr 1, 2024 1:41 pm

need 2

1 user uploaded image

Emily from SWISCO

Apr 1, 2024 2:43 pm

Thanks so much! Based on what I see here, this doesn't appear to be a custom balance. I believe you can use either the Series 380 or Series 385 with the 2750 stamp option. I noted that you said the depth of the bottom shoe is 1-1/16" deep but that isn't something we can supply.

However, I do wonder if it measured 1-3/32" deep originally and then wore down over time from use. If that isn't the case, you could always shave down the shoe to the desired depth. Just note that modified parts can't be returned for a refund. Our return policy can be found here just in case.

Comparison of the S378, S380 and S385 balance shoes.
