Custom Balance inquiry

Question

Marvin all wood windows from early 1990's.

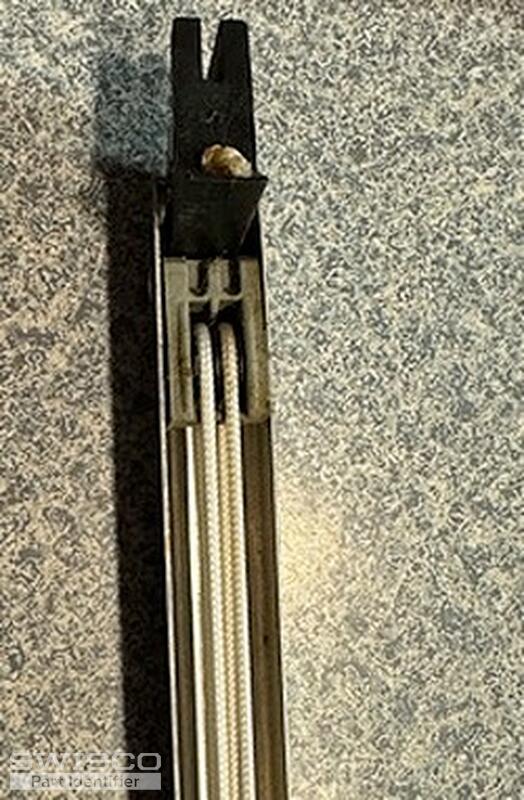

Metal balances on the sides w the springs in them need replacing as the ropes inside broken.

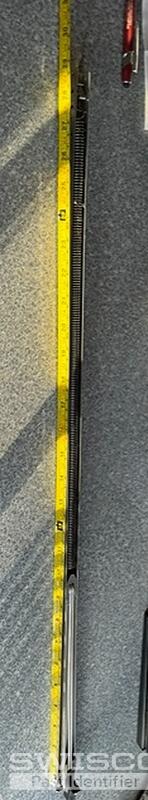

28" on some bars, 16" and 24

Casey · Accepted Answer

Hello,

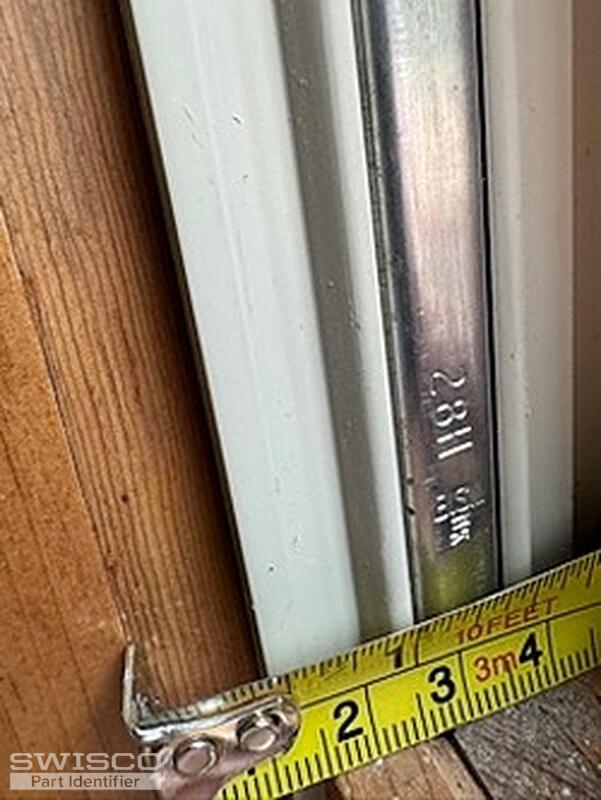

Your balance resembles the S751 at first glance. You'll need to confirm if your assembly has the same ribbed channel, a rivet at the top for installation and uses the 15-014 locking shoe shown below. I'd also recommend double-checking the length of your metal channels since the 28HD stamp balance shown in your photos looks like it may be longer than 28". Take a look and let us know what you come up with.

How to measure the length of the Series 751 channel balance.

Dimensions for 15-014
