Cutout width for the 26-122?

Home Owner from Boulder, CO
What is the cutout width for the 26-122 vent lock?
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

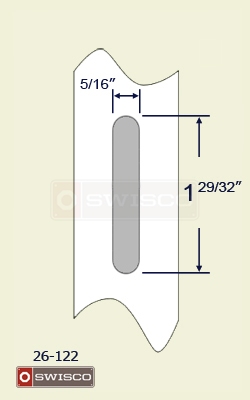

Hello! Please see the diagram below, which displays the cutout width for the 26-122 Vent Lock.

I'm happy to answer any other questions you may wish to know.

cutout width diagram

Quick Learner from North Carolina
Is it ok to install these into new vinyl windows that did not have them from the factory?
Casey
Casey from SWISCO
SWISCO
Expert

These vent latches are designed to install in a precut opening in the sash frame, so installing them on your window will be more trouble than it's worth. That said we do offer the 26-387, a surface mount kit that's applicable on a variety of windows. Take a look at the video below to see if this could work for your application.
