Casement hardware

A quick learner says:
July 21, 2022
the operating track, arm, hinge bar, hinge post, black plastic hinge guide for 9700 series casement window. 6 foot by 2 foot made by MI Home products. they gave me this address. the windows are 1996
Thumbnail of the uploaded file named IMG_4070.JPG
Thumbnail of the uploaded file named IMG_4069.JPG
A home owner from Chattanooga TN says:
July 22, 2022

I was asked to send measurements

If y0u are facing the window the sash operator is on the right side

One of the pictures has the word truth on it

Brenda coe

This is from a 9700 series MI Home window. casement 6 foot by 2 foot. purchased in 1996

I need the whole mechanism the picture is from another identical window that works. I cannot open the window that needs the operating system.

Thumbnail of the uploaded file named IMG_4088.jpg

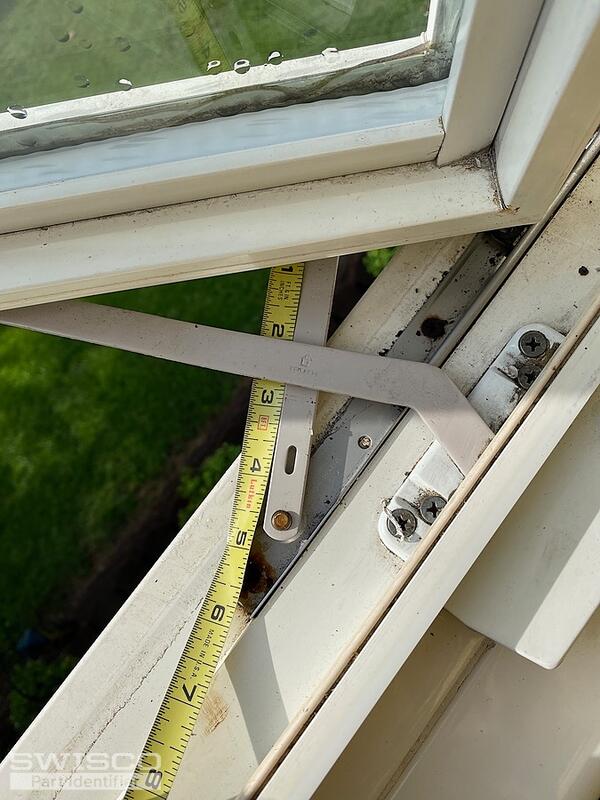

Thumbnail of the uploaded file named IMG_4087.jpg

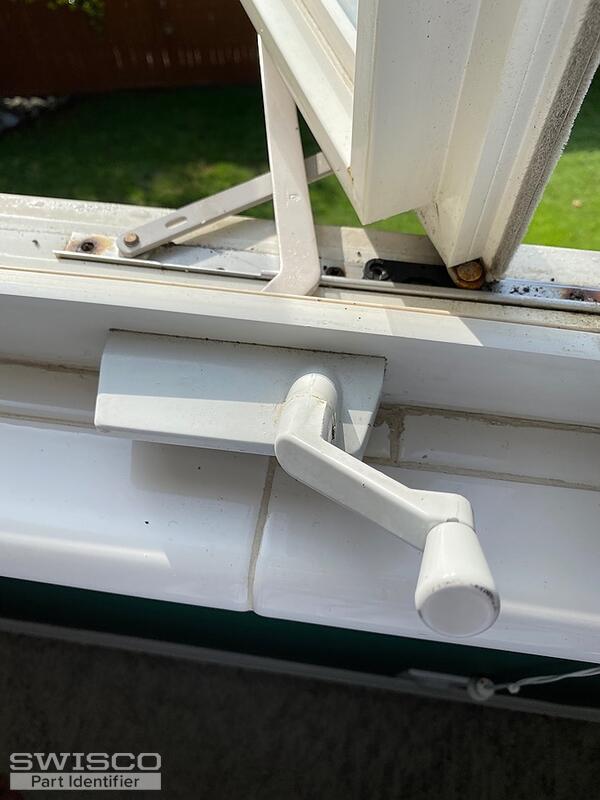

Thumbnail of the uploaded file named IMG_4085.jpg

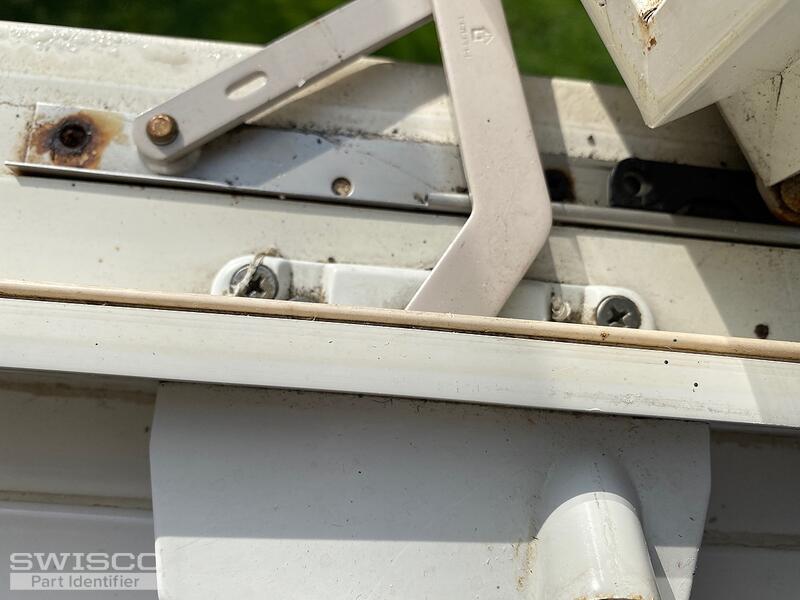

Thumbnail of the uploaded file named IMG_4084.jpg

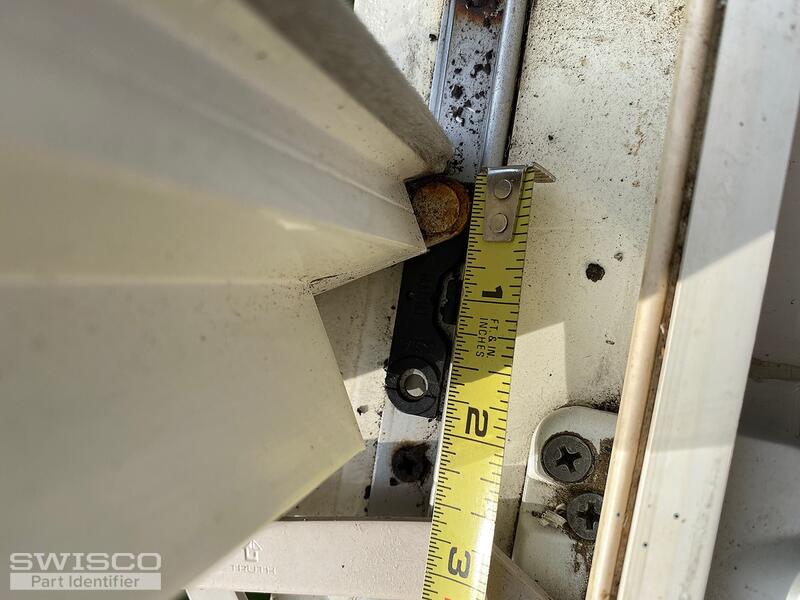

Thumbnail of the uploaded file named IMG_4083.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 26, 2022

Hello,

For your operator, take a look at the three options we've related for you and compare the length of the arms to your assembly, as well as the related items shown on each product page.

Your hinge assembly reminds me of the 36-048. Take a look and see how the specification compare. Please note that the plastic track slide shown in your last photo is not available separately. Thanks for posting!
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-254E
$28.15
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
