A friend from Ontario Canada says:
May 30, 2021
Need part number for
Spiral Balances,3/8 30" long blue tip, 3/8 34" long Orange tip

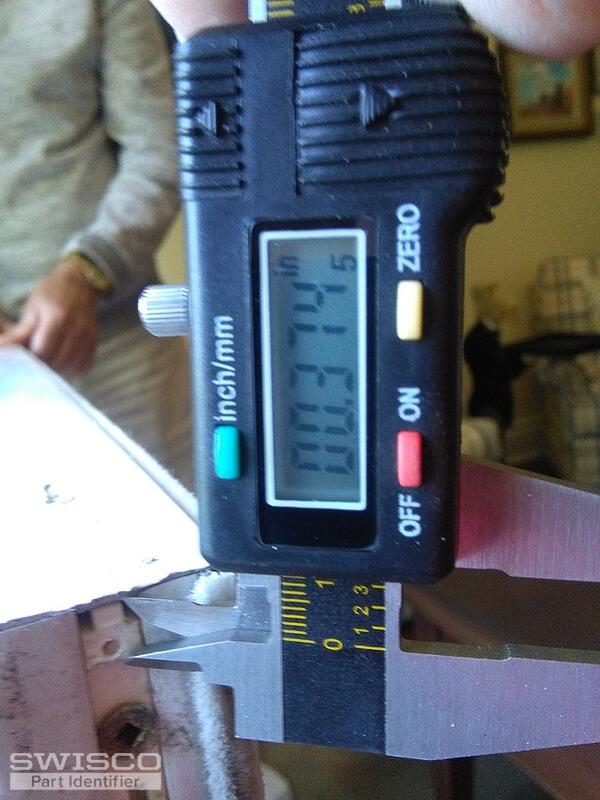

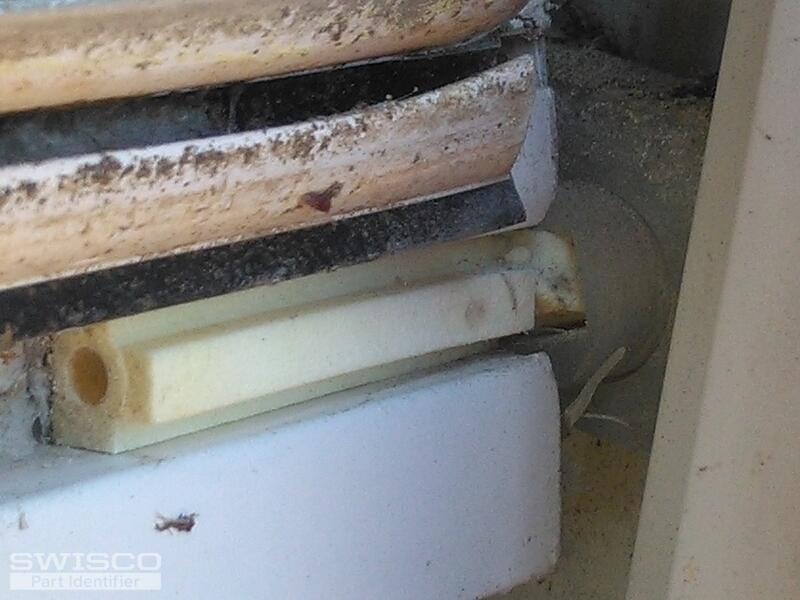

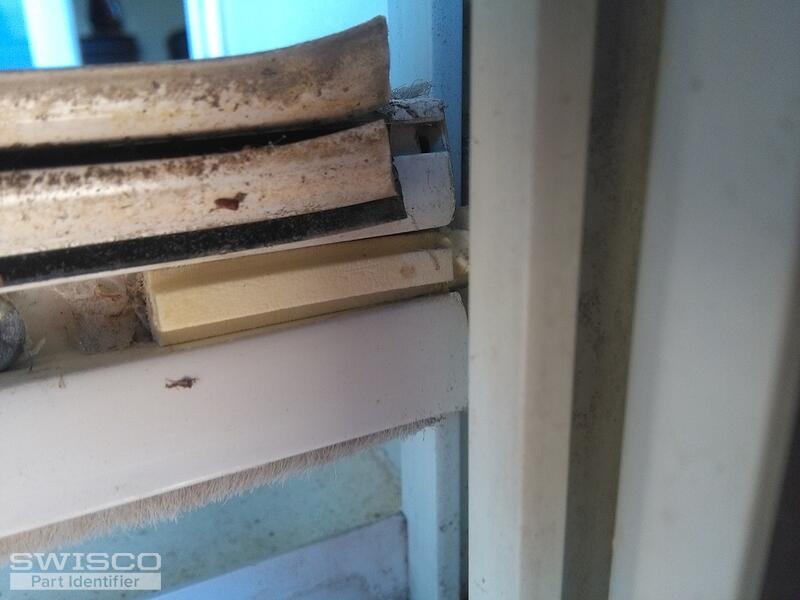

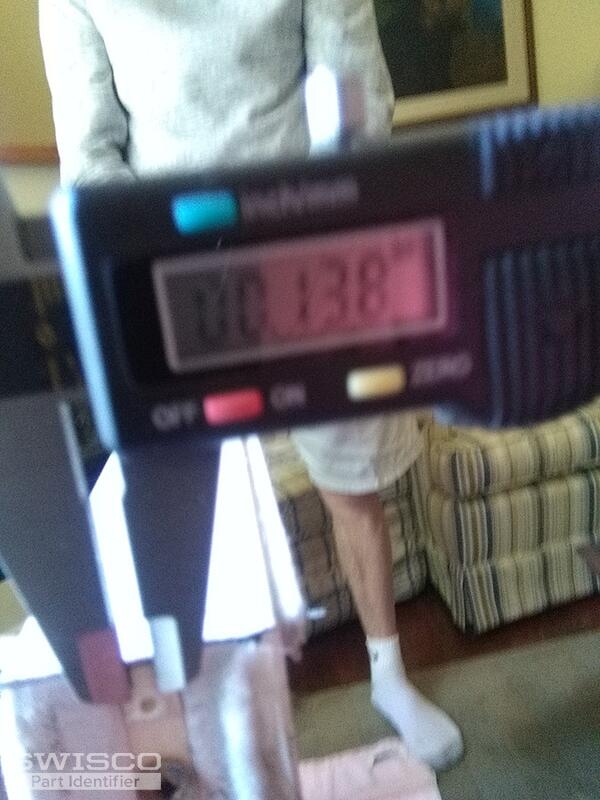

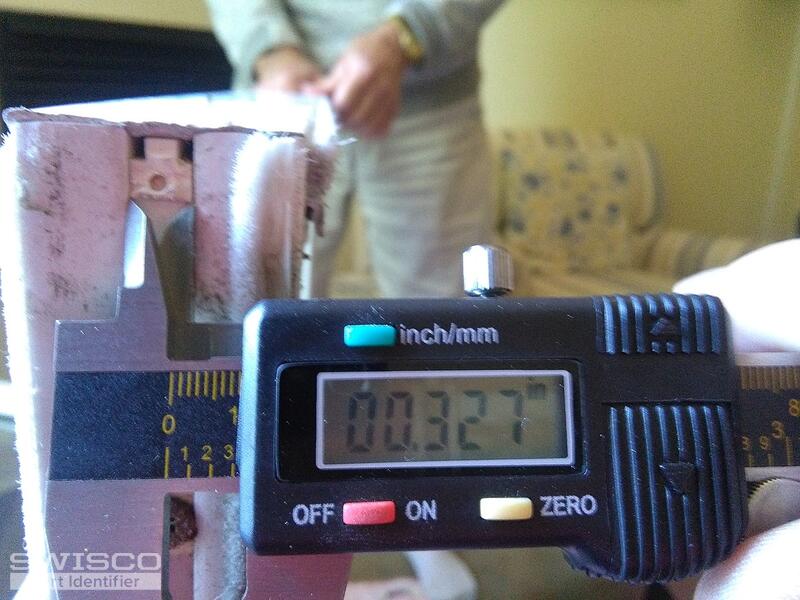

Sash Pivot Bars,.327" wide,.374 deep, center bar is .138" Bars are plastic, upper are broken in windows. Lowers can be seen in photo.
Pivot shoe is 2" long, 1 1/4 wide, 5/8 thick, which I think is your 15-047 shoe?
I do not see screws in lower window track only upper window so I think the bars are fiction fit?
Any help to find parts to repair would be helpful.
Thumbnail of the uploaded file named IMG_20210530_110156.jpg
Thumbnail of the uploaded file named IMG_20210530_110213.jpg
Thumbnail of the uploaded file named IMG_20210530_110238.jpg
Thumbnail of the uploaded file named IMG_20210530_110709.jpg
Thumbnail of the uploaded file named IMG_20210530_110725.jpg
Profile picture of Bob
Bob from SWISCO responded:
June 3, 2021

For the spiral balances, please double-check the outer tube diameters--blue tips are not seen on 3/8" spiral balances. For the pivot bars, they are certainly a little unusual. Can you remove one and show us clear pictures? Finally, those dimensions do sound like the 15-047, but bear in mind dimensions are best measured with the shoe out of the window. See the videos listed on this page.
Pivot Shoe, 5/8" Thick
Pivot Shoe, 5/8" Thick
15-047
$2.20
Pivot Bar
Pivot Bar
26-326
$1.95
