Quick Learner from Orlando

Oct 20, 2013 11:24 am

Hello,
I need to know what would be the equivalent of the subject part? My door is 1 1/4 inches thick and the distance between both mounting screws is about 7 inches.

Thanks for your help,
John

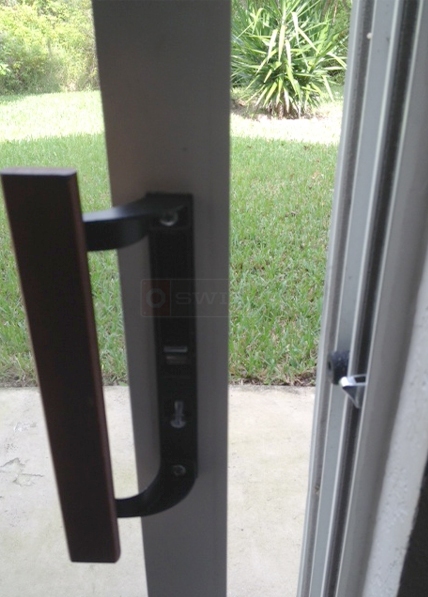

User submitted a photo of a patio door handle.

7 Replies

Tom from SWISCO

Oct 22, 2013 8:40 am

Hey, John. This handle set looks a lot like our 82-002. Compare it to your own hardware and let me know if you agree. Double check to see if the hole spacing isn't more like 6-5/8". Remember to measure from hole-center to hole-center.

Your pull looks to be in good condition, so you should be able to re-use that.

Quick Learner from Orlando

Oct 22, 2013 2:44 pm

Hi Tom,

The measurement is correct 6- 5/8". Thanks for your help!

John

Quick Learner from 78596

Mar 7, 2023 10:21 am

I believe i have a model 82-002, i need to replace it, but I need one with a keyed lock.
Please help
thanks
Mark

Tom from SWISCO

Mar 7, 2023 3:27 pm

Hello, Mark. We sell the 82-002K, which is a keyed version of the 82-002. I believe this is exactly what you're looking for.

Handy Person from CA

Dec 13, 2023 12:57 pm

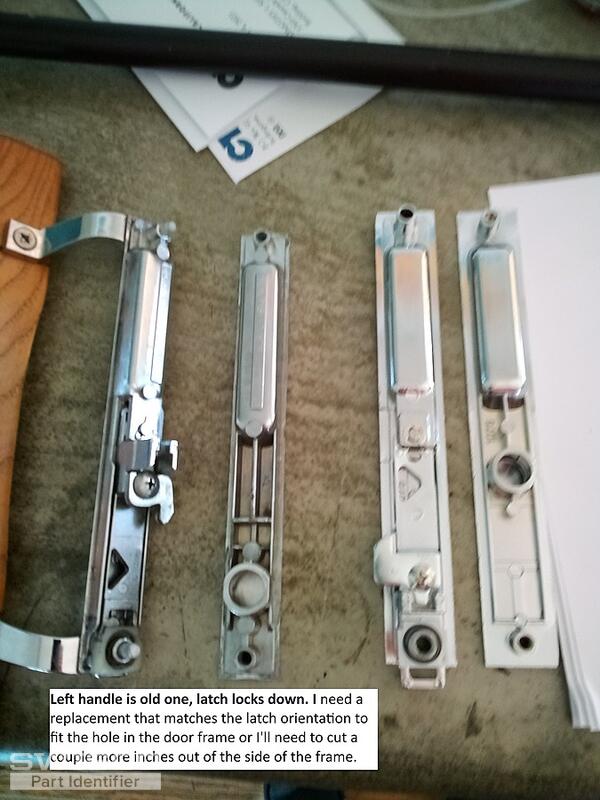

I bought a mechanism similar to this to replace my old one that fell apart, but when I went to install it the sliding portion of the latch was inverted from what I had. Can you show me a picture of the inside of the 82-002K - specifically which way the latch is arranged.

Thanks.

1 user uploaded image

Tom from SWISCO

Dec 14, 2023 9:47 am

Sure, you can see an interior shot of the 82-002K below. Looking at your photos, it looks like the latch on ours would be far too low for it to align with your original. You may want to consider our 82-008 instead; I'll also share an interior shot of that product.

Alternate view of 82-002

Alternate view of 82-008
