DOOR REPLACEMENT HANDLE

Home Owner from Knoxville, Iowa

Aug 12, 2014 5:48 am

THE DOOR HANDLE IS FOR A COLE SEWELL STORM DOOR ALL GLASS FRONT. THE HANDLE IS COMPLETELY BROKE OFF AND CANNOT SHOW A PICTURE OF THE HANDLE ATTACHED. HOPEFULLY THESE MEASUREMENTS IN THE PHOTOS WILL BE ENOUGH TO HELP IDENTIFY AND REPLACE THE HANDLE.

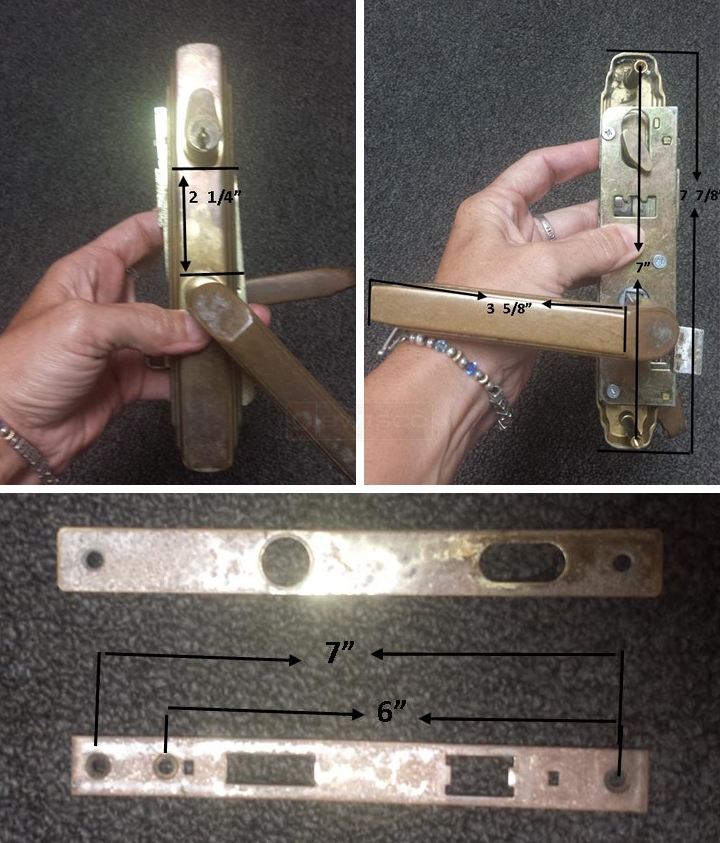

User submitted photos of a door handle set.

4 Replies

Dave Sr. from SWISCO

Aug 12, 2014 2:39 pm

This looks like our 40-049 lock set. Check it out and see if you agree.

Home Owner from Knoxville, Iowa

Aug 12, 2014 3:05 pm

I was looking at the 40-193 but the measurements aren't quite lining up. This may be a dumb question, but when measuring the holes for the screws, do you go from center hole to center hole? If so, it's exactly 7". I could possibly make 7 1/8" work. The 40-049 is only 6 1/2"-

The inside piece below is where the problem lies. The screw is jammed into where the door should latch but would like to get a whole new handle if I can find a match. Thanks for your help!

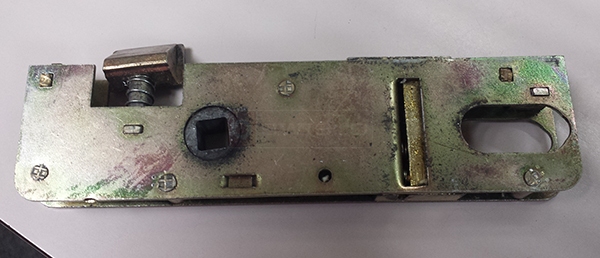

User submitted a photo of a mortise lock.

Dave Sr. from SWISCO

Aug 14, 2014 10:15 am

Ah, I see. Unfortunately, we don't have anything closer. The 40-049 is the closest possible match we have. Considering your old handle set has through-bolts, I think you would have to re-drill new holes in the door anyway. I cannot guarantee that the 40-049 will work, but it appears to be the only possible replacement we have.
