Damage Crank Unit

Quick Learner from Connecticut

Apr 19, 2023 4:56 pm

Please help me with product identification. The unit is good, just my crank seems to be the problem. Should I replace the entire unit or can I just replace the crank.

4 user uploaded images

3 Replies

Quick Learner

Apr 20, 2023 12:29 pm

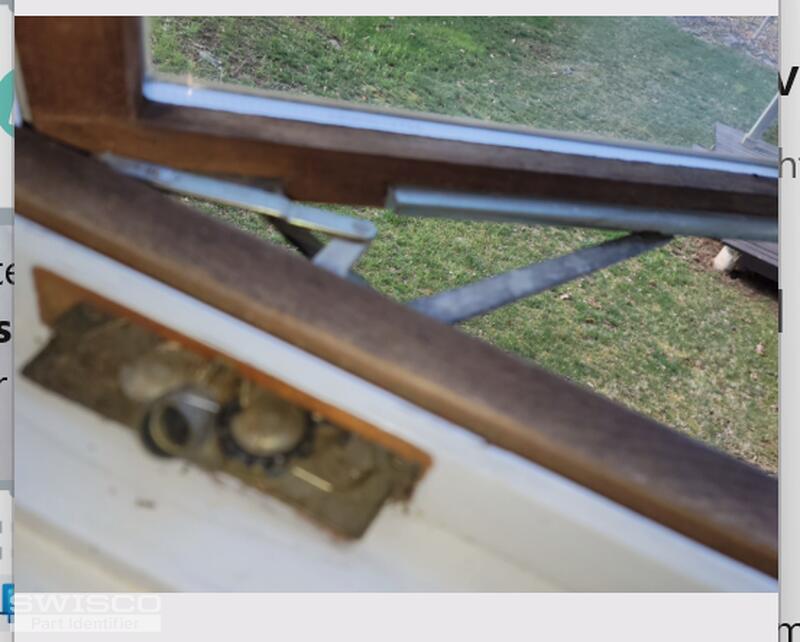

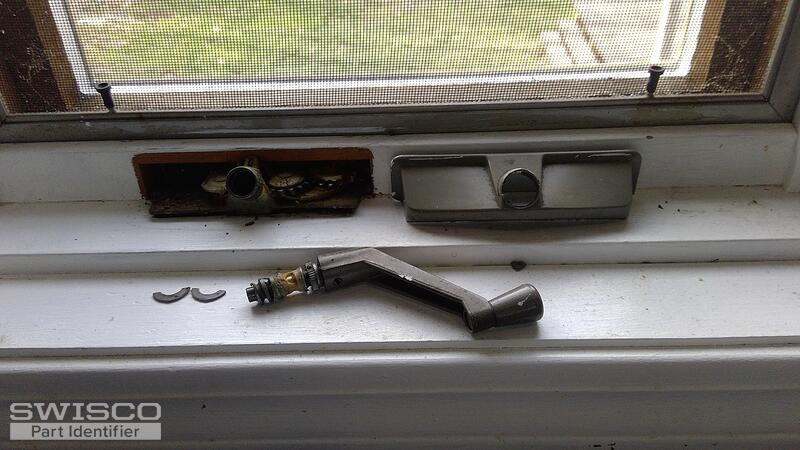

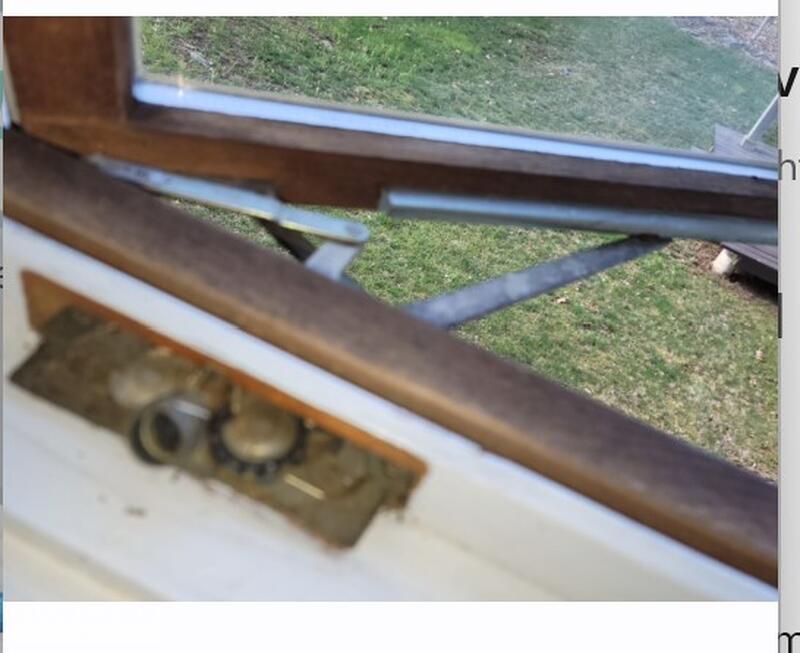

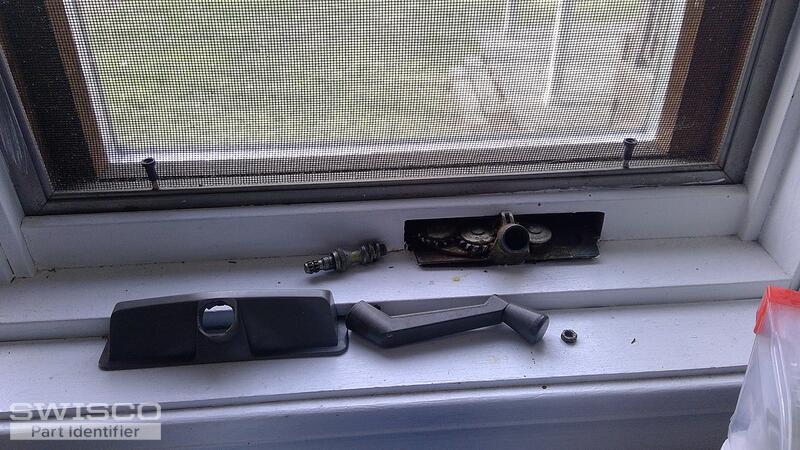

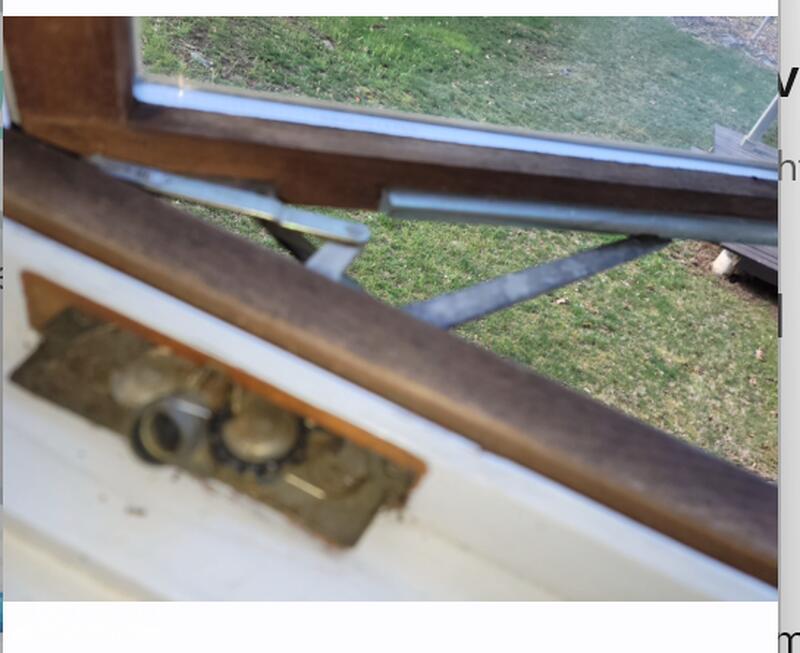

Please see the attached photos of my broken encased window cranks. I believe I need part #'s 39-032 & 39-031. I also thought that I may just need the crank itself, but need help determining if it's best to just replace the entire unit.

4 user uploaded images

Lauren from SWISCO

Apr 21, 2023 9:38 am

Hello, thank you for posting,

I agree with your assessment that your operators resemble the 39-031 and 39-032 operators. To confirm, please review the dimensions to determine a good fit. The operator will need to be replaced as the metal spline that the handle fits onto has been stripped out.

Please review and let us know if you have any additional questions! I have also related the compatible handle and cover on the page if needed.
