Damage channel balance

Quick Learner from Altadena, California
The length of the Channel balance is 33 inches. Is it available at your store. Thanks
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out. It is likely we have the balance  you are searching for however, I'll need a bit more information to confirm.

I'll need to see a photo of an undamaged balance removed from the window. I am especially looking to see the top and bottom plastic attachments from the balance as well as the stamp from the metal channel of the balance.

Quick Learner from Altadena, California

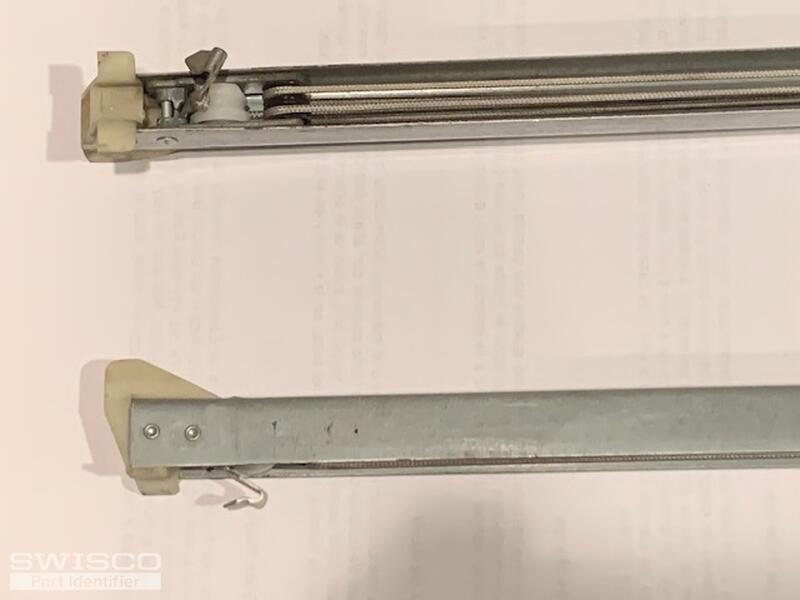

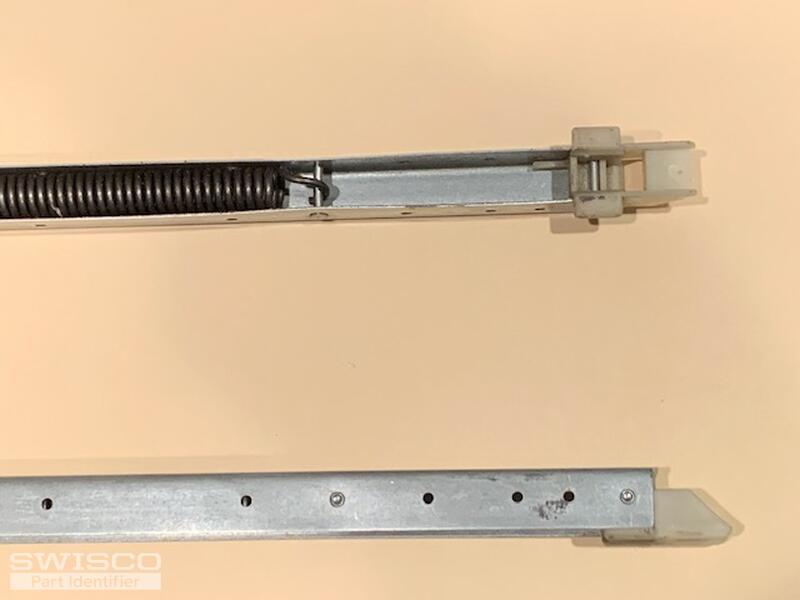

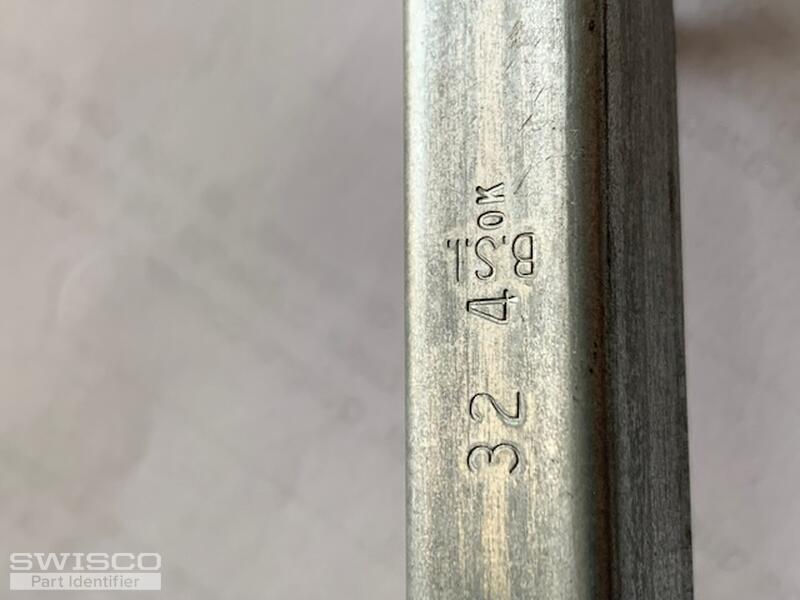

Thank you for your response. Enclosed air the pictures of both ends
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

It looks like you have either our S380-33 or S385-33 with a 3240 stamp. Like your balances, these have a winged top and a winged bottom. To determine which of these balances is the correct replacement, you'll need to confirm the measurement for the depth of your bottom shoe. Take a look at the diagram below for reference.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Altadena, California
Hi Jasmine
Sorry I did not answer sooner. I was on vacation.

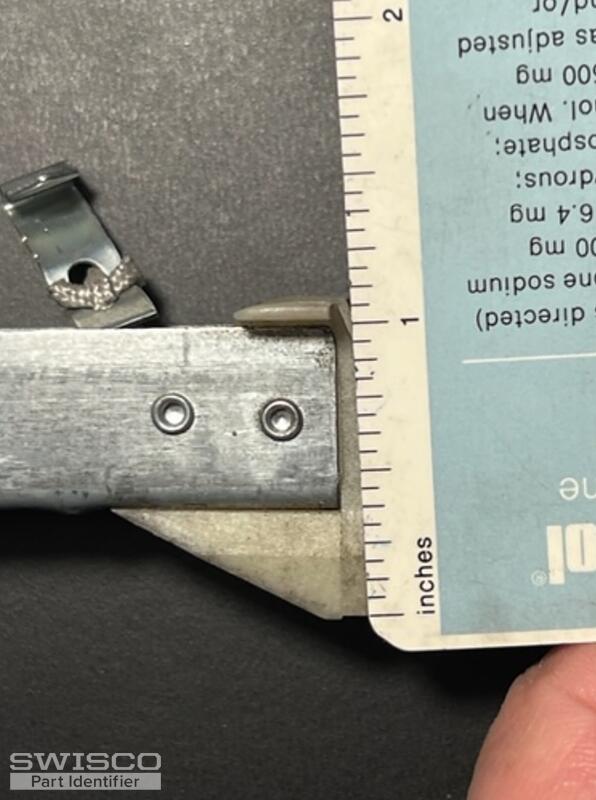

I enclose the photo of the botton shoe. It seems just over 1", likely S385.Let me know what you think.
Thank you
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

It does appear that they are over 1", however, it may help to get a measuring tape with small measurement increments to confirm for use. It is difficult to tell based on the photo and the measuring tool being used.
