Del Mar Sliding door rollers Pat 3,670,257

A quick learner from Vienna, VA says:
July 30, 2015
Hello, I have several patio doors requiring roller replacement. The doors date from about 1977 and all use Del Mar single rollers. The rollers do not have model or part number markings on them, but are identified as "Product of Del Mar Eng. Co, Long Beach, Cal. Pat 3,670,257." I have looked at the Del Mar on-line catalog but can't find an exact match. Can you recommend one that I might try? The roller housing is rectangular, approx. 1.4" high and 2.05" long. The front-to-back dimension is about .6" and the wheel appears to be 1 1/8". I can send a photo if that would help. Thanks.
A quick learner from Vienna, VA says:
July 30, 2015
Here's a pic:

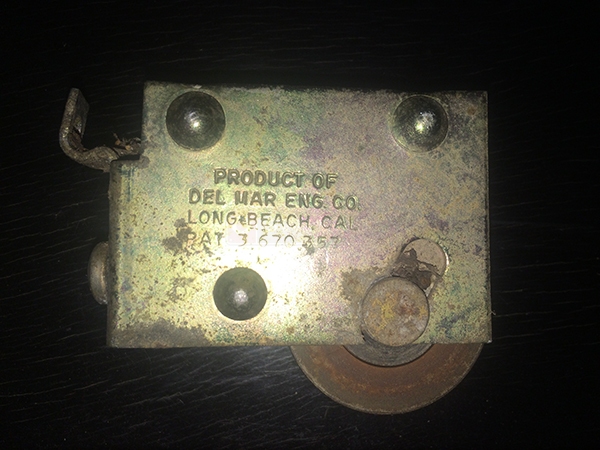

User submitted a photo of a patio door roller.
Profile picture of Paul
Paul from SWISCO responded:
July 30, 2015
Have a look at our 81-243 roller. I know the wheel is a little larger, but it still may work. You can try to adjust it to compensate for the difference. What do you think?
A quick learner from Vienna, VA says:
July 30, 2015
Paul -
Thanks for your quick reply. That 81-243 looks like a good fit. I'll give it a try.
Bob
Patio Roller Assembly, 1-1/4" Wheel
Patio Roller Assembly, 1-1/4" Wheel
81-243
$12.47
