Dimensions are approx. due to the condition of the samples.
total width 7/8" but could be slightly less
bulb size 3/8"
slot T width 3/16" (measured)
space between bulb and T- 3/16
I would presume there is some shrinkage of the Vinyl due to age, nearly 17 years, and my only concern would be the size of the T slot of the Aluminum Window which measures just a bit over 3/16"
I wish to repair 10 or 12- 32" windows. Would expect to buy 5-12' strips to have some left over. Thanks, Russ
Deteriorated T-slot foam filled, Bulb, window weatherstrip replacement
Professional from Duluth, GA (30096)
Jul 15, 2017 7:45 pm
4 Replies
Tom from SWISCO
Jul 17, 2017 10:52 am
Welcome to SWISCO, Russ. The measurements help, but is it possible for you to send us a photo of the end profile of your weatherstripping? If you can do that, we can make a much better attempt at identifying your part.
Professional from Georgia
Jul 20, 2017 10:00 am

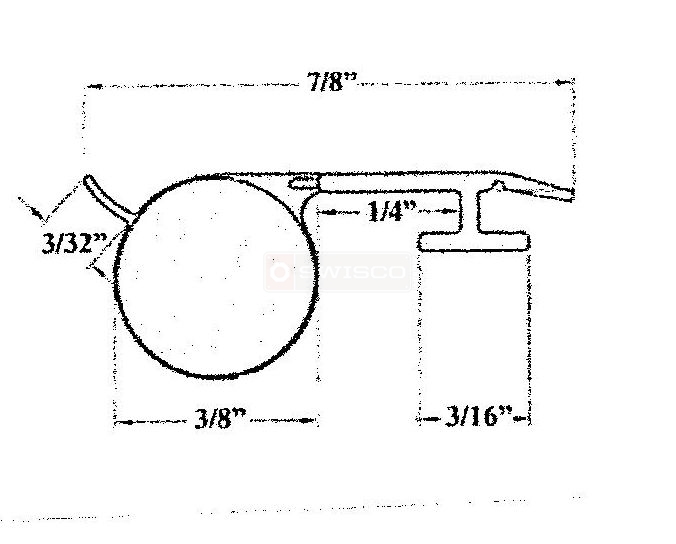

Sure, here you go.
Tom from SWISCO
Jul 25, 2017 10:43 am
Thanks for the detailed photo. Our 58-183 T-slot foam weatherstripping looks like it could be a good match. Your dimensions match up to what we have as well as the style of it. Take a look at it and get back to us with some thoughts.
