Did I order the wrong one?

A quick learner from Nordland, Wa. says:
Hi there,went to assemble and the slot on the #15-004 is too narrow to fit over the metal channel end.
Thank you, Mike
Thumbnail of the uploaded file named 16000470845262543582797123917480.jpg
Thumbnail of the uploaded file named 16000474068955655812182004155640.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your original balance has an older style metal channel, which would explain why the 15-004 won't fit on it. You may need an all new balance. I can recommend one, but I need to see a picture of the top nylon fitting to confirm.

A quick learner from Nordland, Wa. says:
Hi Tom, here's the pictures of the upper fitting you asked for. Hope this helps.
Thanks much, Mike
Thumbnail of the uploaded file named 16003541914783057717684120602607.jpg

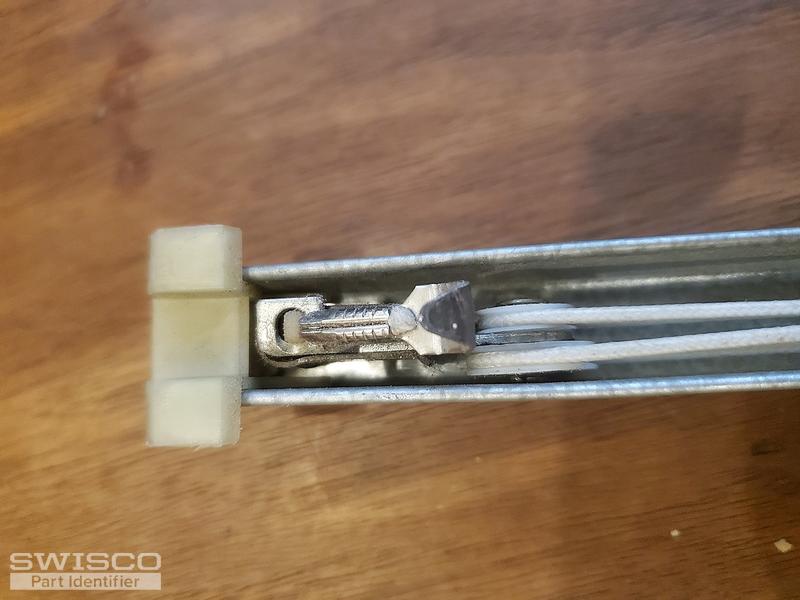

Thumbnail of the uploaded file named 16003542214828490595161454303356.jpg

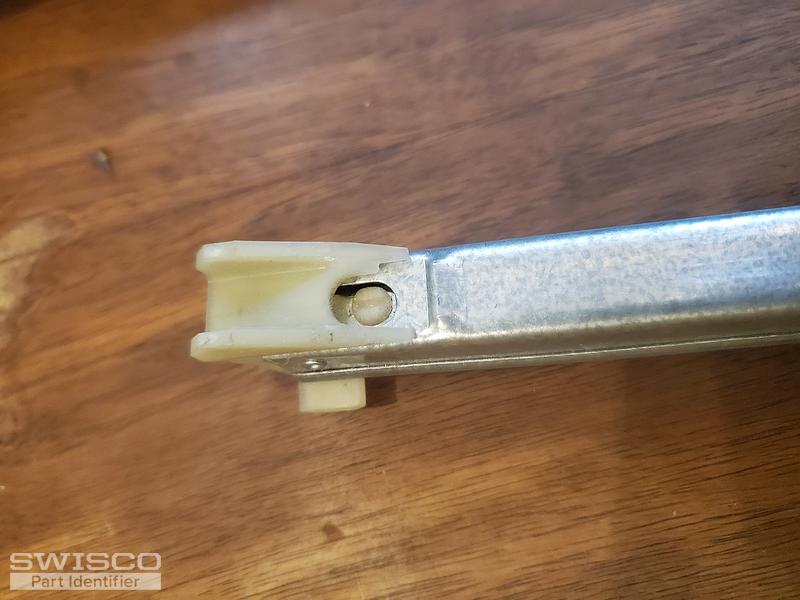

Thumbnail of the uploaded file named 16003542440785843645140088469029.jpg

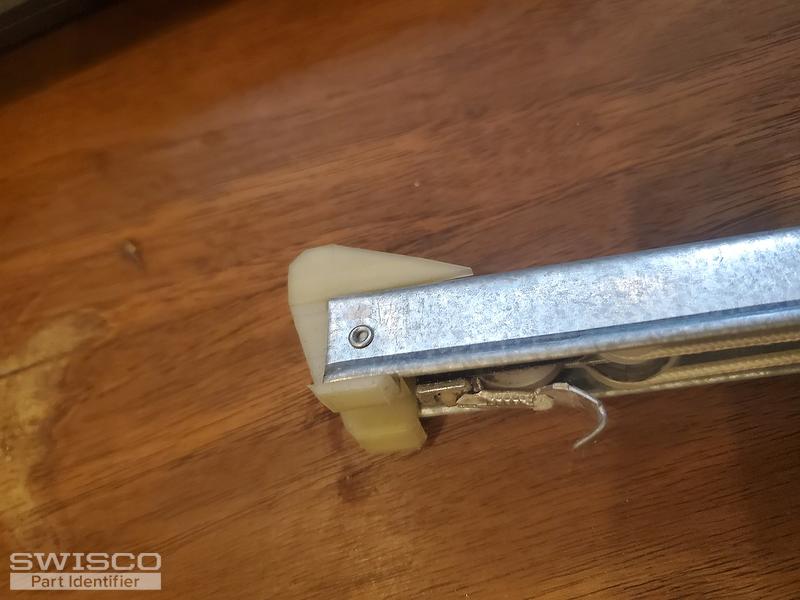

Thumbnail of the uploaded file named 16003542718018595834328836469956.jpg
Profile picture of Tom
Tom from SWISCO responded:

That's still the bottom fitting, which you showed in your first response. The top fitting is on the opposite end of the balance.

A quick learner from Nordland, Wa. says:
Tom, sorry bout that. Here you go. Thanks Mike

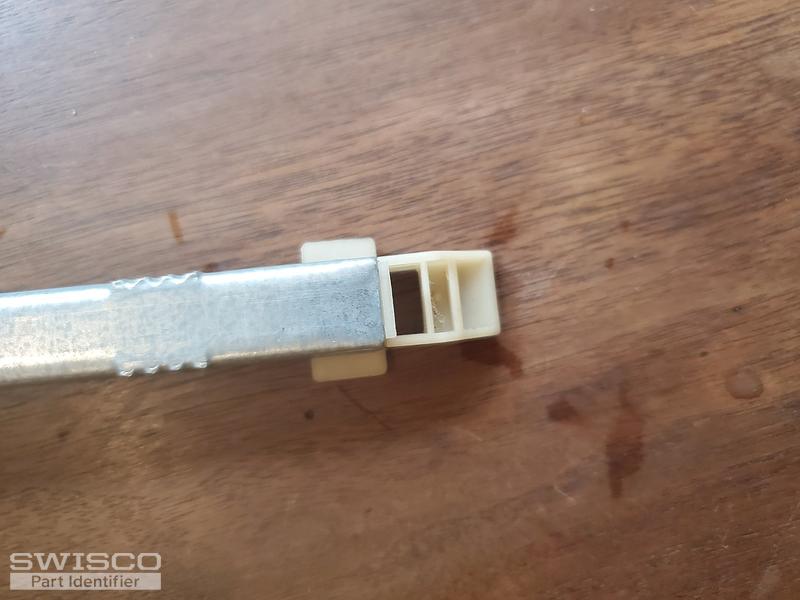

Thumbnail of the uploaded file named 16003721510674125579133507359050.jpg

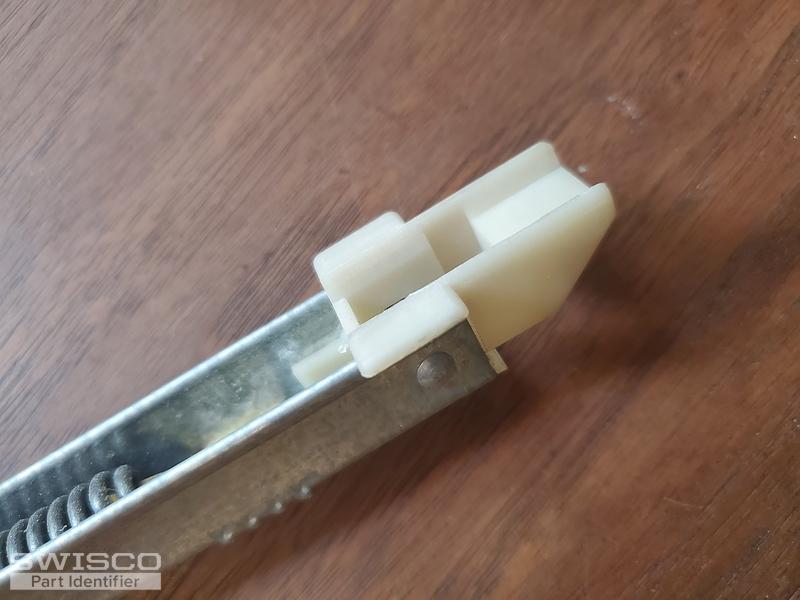

Thumbnail of the uploaded file named 16003721816145069820538922445306.jpg

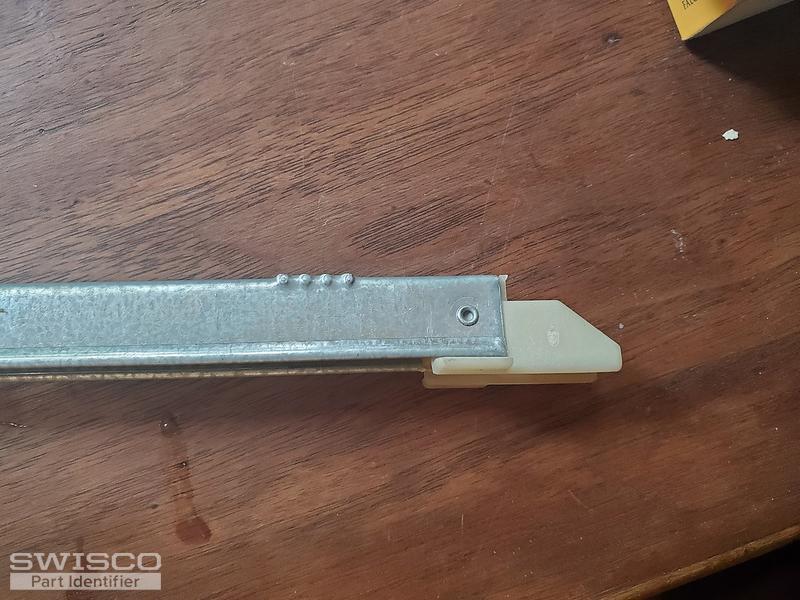

Thumbnail of the uploaded file named 16003722436051494048181315209559.jpg

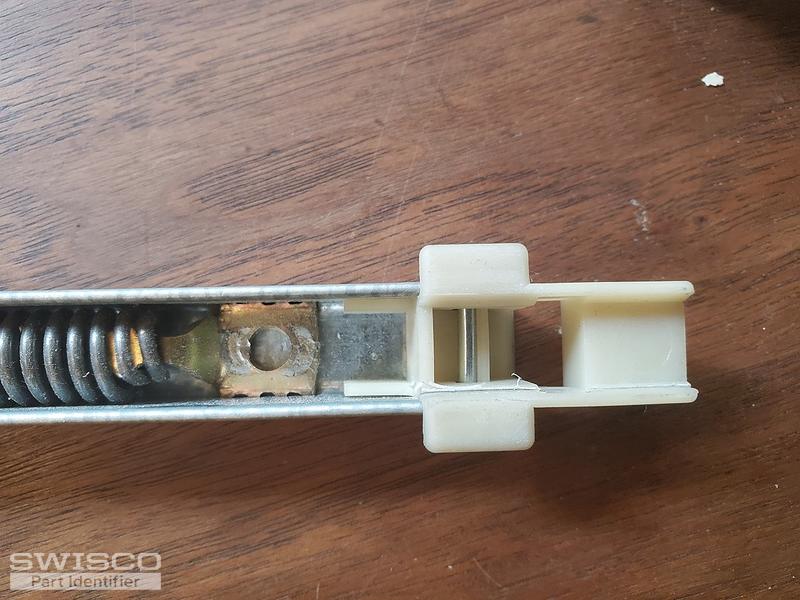

Thumbnail of the uploaded file named 16003722817978033442504534596575.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! I recommend the Series 385 channel balance. This comes with a 19-005 top, which matches yours, and a 15-004 bottom. I am very confident this will replace your original balance.

A quick learner from Nordland, Wa. says:
Tom, do you have those in stock? Tried to get them a couple weeks back but they were not available.
Thanks for the help
Profile picture of Tom
Tom from SWISCO responded:

I don't know, that depends on what length and option you need. If you visit the store page of the size you need, it should tell you whether we have these parts in stock or not.

I can tell you that our backorders are delayed considerably due to the quarantine. We don't have an ETA, but I can promise that we're trying to get them back on the shelves as soon as we can.
