Dimensions

Home Owner from San Jose
For the Self-Close 3/8" Inset Hinge Kit (code 32-127), I need to know where the 3 holes on the door side of the hinge are located, exactly. Can you supply that?
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Take a look at another customer's post here showing the dimensions you've requested. Just let us know if you need anything else.

Quick Learner
The given (horizonal) dimensions help, but I also need to know the vertical offsets (I want to know if these hinges match the existing holes in my cupboard doors.)
Casey
Casey from SWISCO
SWISCO
Expert

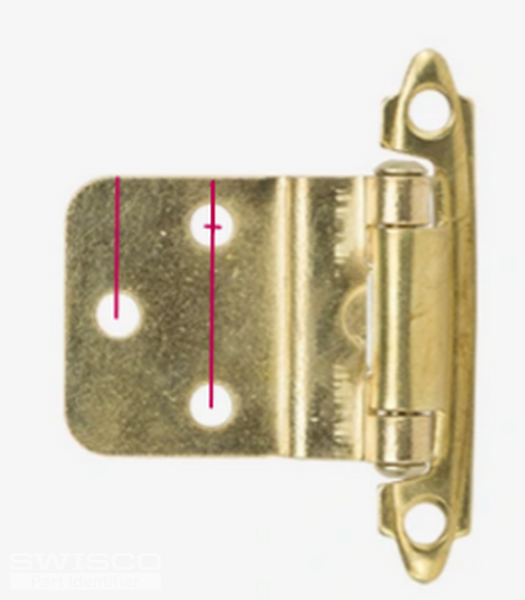

No problem, the single mounting hole on the left is 3/4" from the top, while the right top measures 1/4" and the bottom right is 1-1/4" from the top as shown below. Just let us know if you need anything else.

Hinge hole spacing
