Do I have the 15-045 pivot shoe?

Home Owner from Pooler

Aug 10, 2017 1:45 pm

The dimension matches with these, but I would like to double check this is the same one, and not brand specific.
PIVOT SHOE, 3/8" THICK
Product Code: 15-045

Thank you so much!

4 Replies

Tom from SWISCO

Aug 15, 2017 2:19 pm

Thanks for reaching out to us. We would like for you to confirm your pivot bar measurements.If it is 5/16" wide by 3/16" high, you may use our 15-212 pivot shoe. If your pivot bar is smaller such as our 26-297 pivot bar,1/4" wide by 3/16" high, you can go with our 15-134 pivot shoe.

Home Owner from GA

Aug 15, 2017 2:52 pm

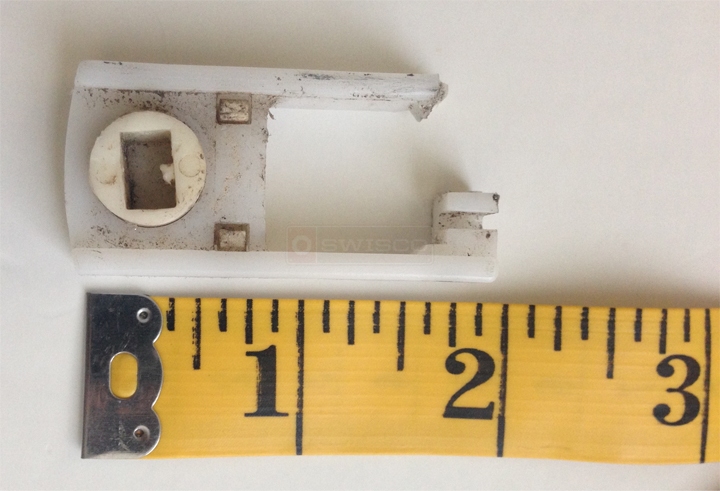

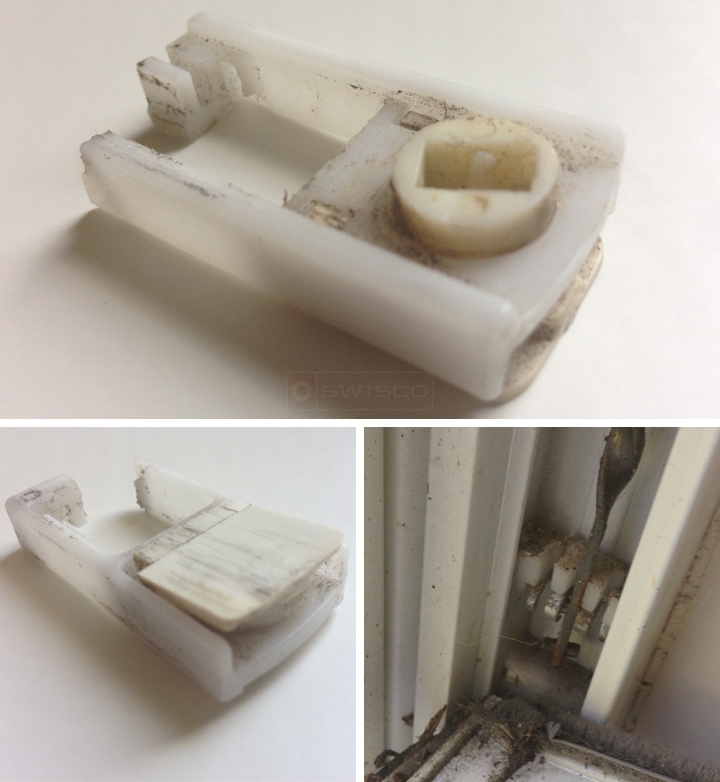

Thank you. It looks like 15-212 is closer match. The one I have is about 3/8"x 15/16" x1 7/8" (The tallest part is about 1/8 shorter than 2"), and the round part is sticking out. Can I still use the 15-212?

Tom from SWISCO

Aug 23, 2017 2:44 pm

It would depend on the size of the pivot bar. Are you able to confirm the size of the opening that accepts it? I listed some potential examples in my first response.
