Do I have your 26-402?

Home Owner from south bend, in

Mar 2, 2018 6:18 pm

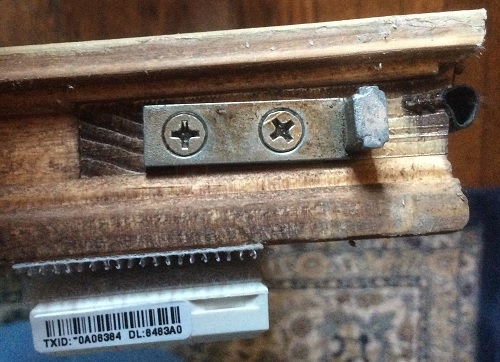

This piece is installed in a KK window. Double hung windows that pivot in to remove. There is a track in the window for the hanging track, but no deeper track for this piece. It is flat-backed. I measured it at 3/8" wide, 1.5" long, and 9/16" deep, but that may not be perfectly accurate. It appears similar to Product 26-402. Does that seem right?

6 Replies

Paul from SWISCO

Mar 6, 2018 11:57 am

Your dimensions are close to our 26-402. May we see the pivot shoe that your tilt bar fits into, in order to judge if it will work?

Home Owner from South bend

Mar 6, 2018 12:26 pm

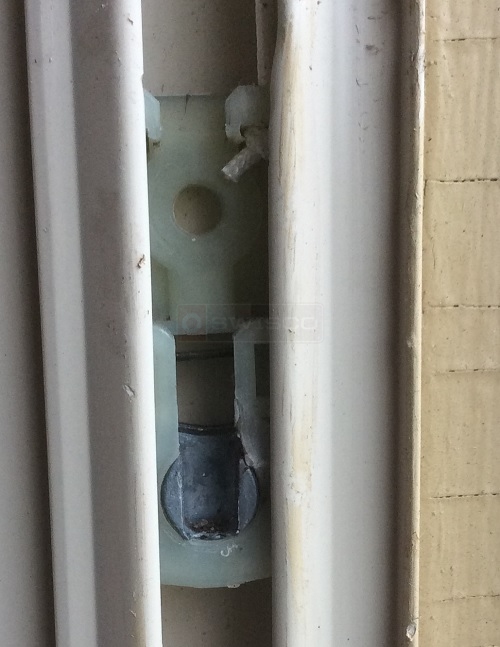

Here is the pivot shoe

Paul from SWISCO

Mar 9, 2018 2:51 pm

Thanks! I believe out 26-402 pivot bar will fit into your pivot shoe. See what you think.

Home Owner from South bend

Mar 14, 2018 5:39 pm

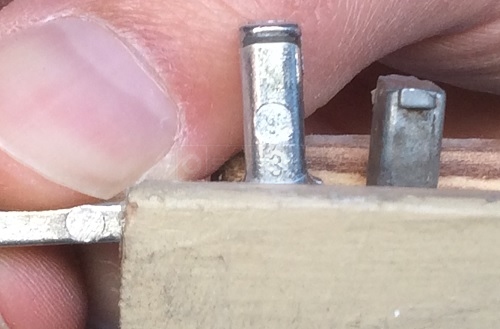

So, I purchased this piece, but it is too long. Is there another that is shorter? This pic shows the old on the right and the new that is too long on the left. It doesn't have to be as much shorter as this pic shows, but about halfway between the two would work.

Paul from SWISCO

Mar 16, 2018 12:58 pm

I'm sorry to hear it didn't work. Unfortunately, the manufacturer doesn't have a shorter pivot bar. This is the only possible replacement option we have available.
