Do I have your S385-27?

Quick Learner from Az
Would like to verify if my balance matches your model #S385-27.
Top plastic piece look different from my balance. Stamp is 26-4 DA2 CMC 7.

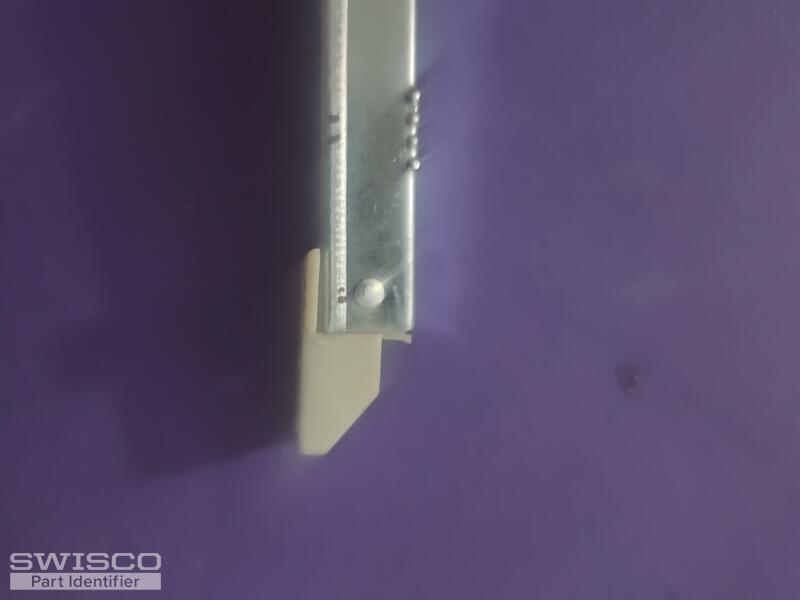

4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for reaching out! I'm sorry to say that I would not be able to confirm if the Series 385 is the correct replacement balance without seeing a photo of the bottom shoe. You'll need to confirm that the shoe has a winged bottom and that it has a 1-3/32" depth measurement.

Take a look at the diagram below to confirm the design and depth measurement of your shoe. If one or both of these details is different, then you will need a different replacement balance. In that case, I would need to see a photo of your balance shoe.

Close up view of the S385 balance shoe.
Close up view of the S385 balance shoe.

Handy Person from Az

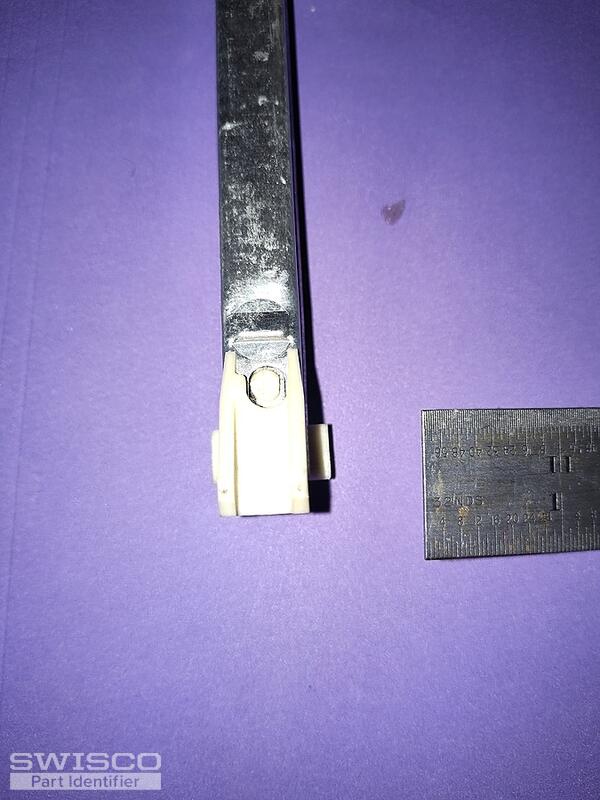

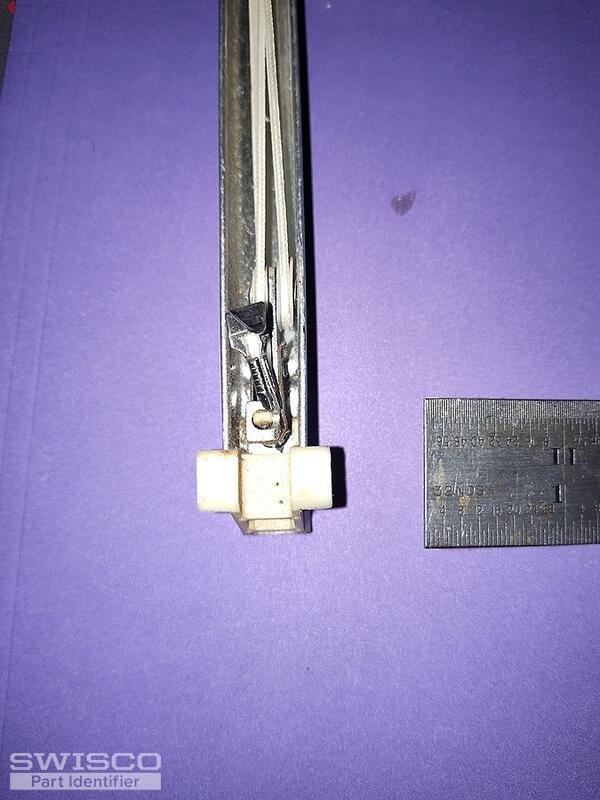

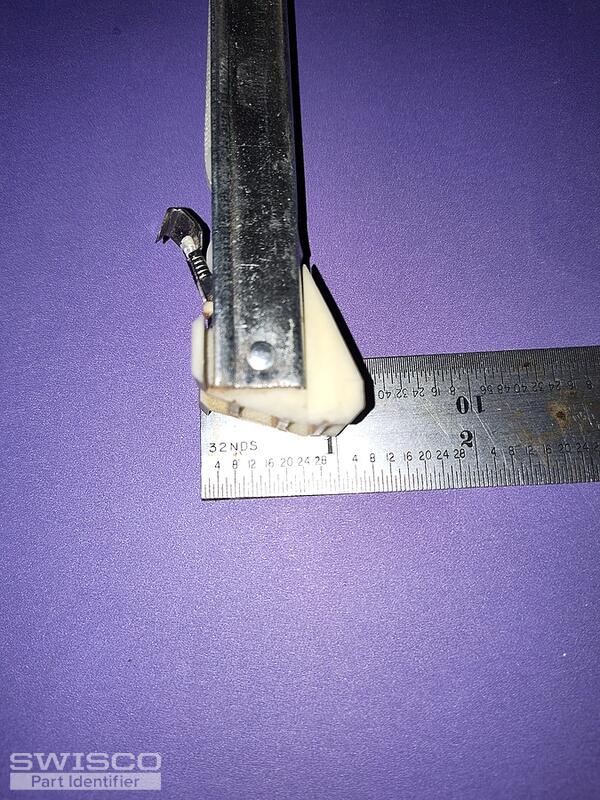

Here is a picture of bottom shoe. I also attached pictures
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your channel balance could be either the S380-27 with a 1" shoe depth or the S385-27 with a 1-3/32" shoe depth. Unfortunately, I am unable to tell which of these you have from the photos of the ruler. You'll need to carefully compare the dimensions to confirm. It might be better to use a tape measurer to get the most accurate measurement.

You'll need to select the 2640 stamp.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
