Do you have this right-handed window crank?

Question

Hi,

I would like to find a replacement window crank operator. I'm looking for a right handed model. The mounting dimensions are as follows: vertical 5-1/4 and horizontal 1-1/8. The overall link arm length is 2-15/16 to 3. The pin to pin length of the link arm is 2-3/8. Please let me know if you have any other questions.

Thanks,
Bobby

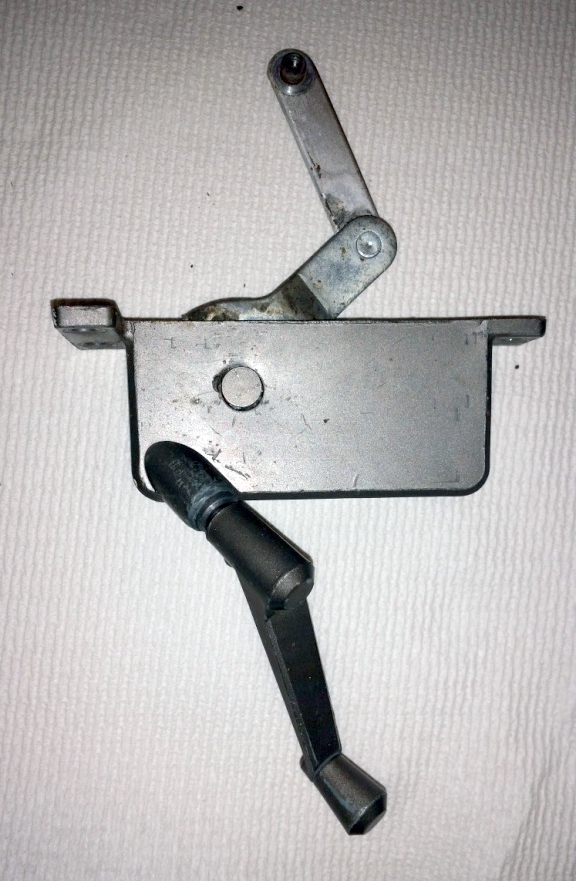

User submitted a photo of a window operator.

Tom · Accepted Answer

Thanks for posting, Bobby. Check out our 39-025 and 39-026. The dimensions appear to match, as well as the offset gear arm. The only thing that isn't exact is the link arm, but you should have enough play in the window that it could still work. See what you think.
