Quick Learner from WA
Apr 10, 2024 12:47 pm
Left side of my window sash dropped it is stamped on the back 26 3 JN Caldwell. do you have this part and do I need to replaced both sides ?
3 Replies
Hello, thank you for posting,

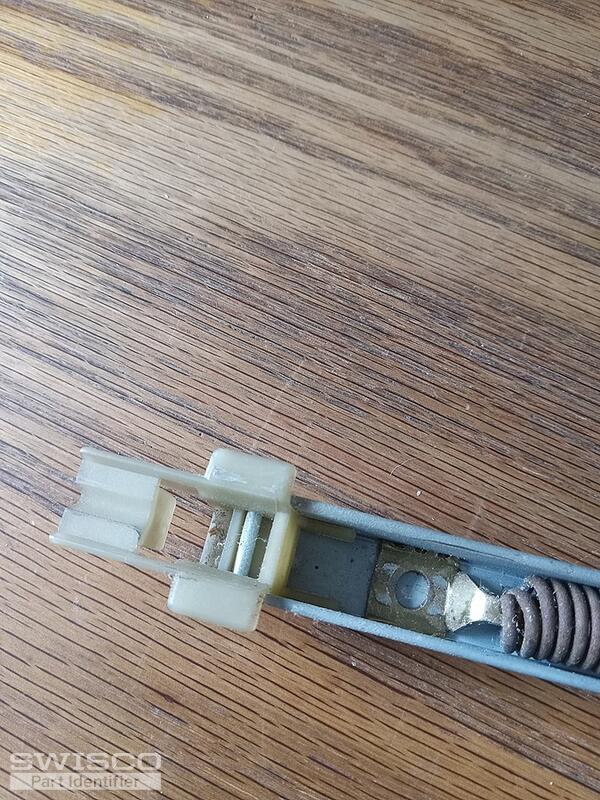

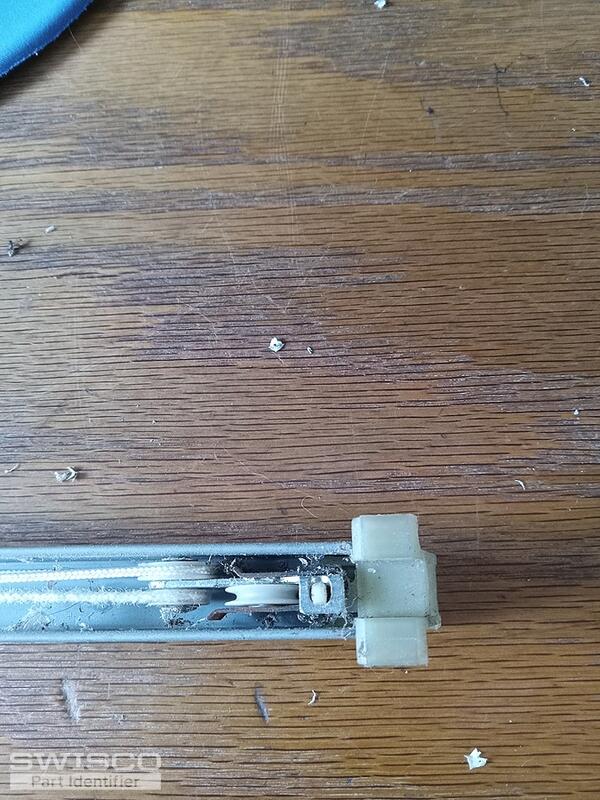

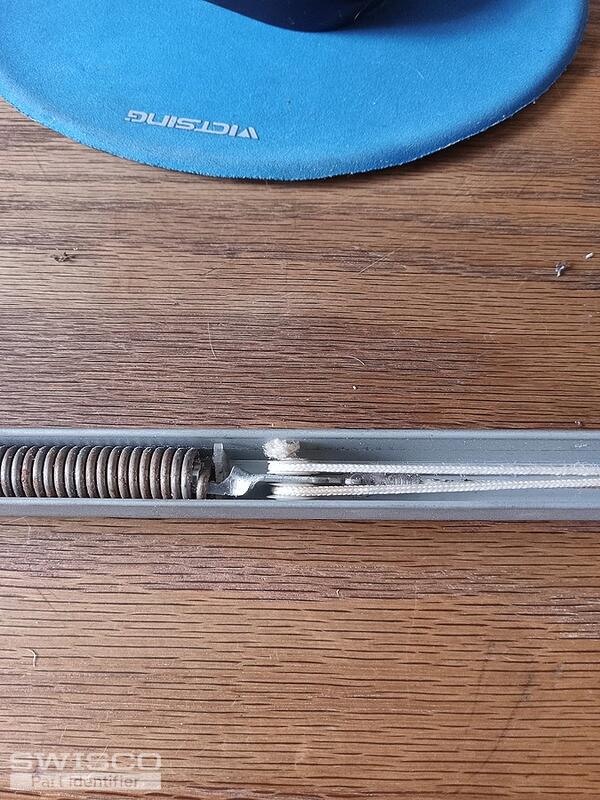

It sounds like you are in need of new channel balances. To further review, we will need to see the balance removed with clear images of the top and bottom nylon attachments. We will also need to see a picture of the inside of the metal channel where we can see the connection point of the spring and pulley system. Thank you!
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
The length of the metal channel excluding the nylon attachments should measure 27" long and you will need a 2630 stamp option. Please review and let me know if you have any additional questions.
