Home Owner from Cape Canaveral, FL

Dec 22, 2023 9:25 am

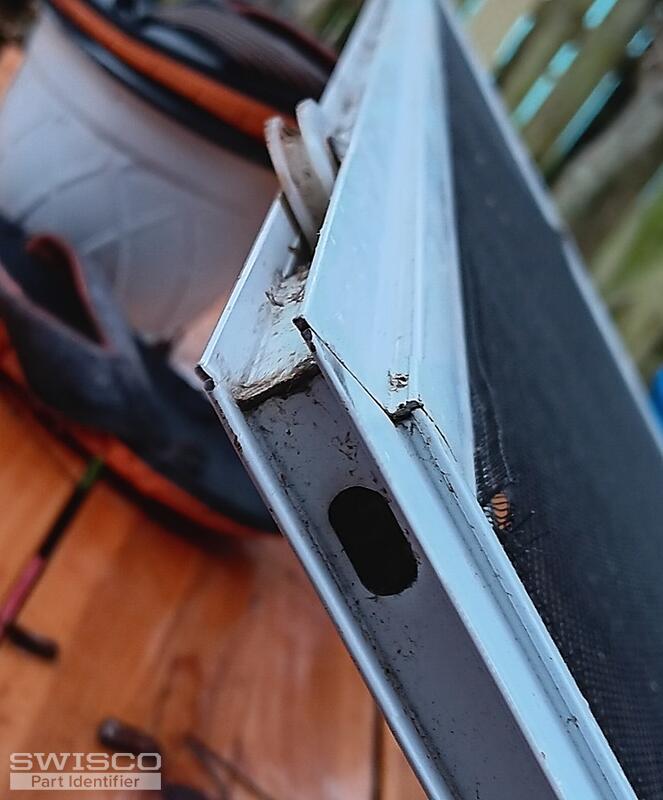

Hi, I am trying to locate replacement roller and adjustment hardware for an American Craftsman screen slider 5500. The screen required 4 sets, 2 at top and 2 at bottom. Many Thanks for any assistance

Chris

4 user uploaded images

4 Replies

Emily from SWISCO

Dec 27, 2023 9:08 am

Hi there, Chris.

It's hard to say what you have from these photos. Would it be possible for us to see a complete roller assembly in undamaged condition and removed from the door?

Home Owner from Cape Canaveral, FL

Dec 27, 2023 2:47 pm

Hi Emily,

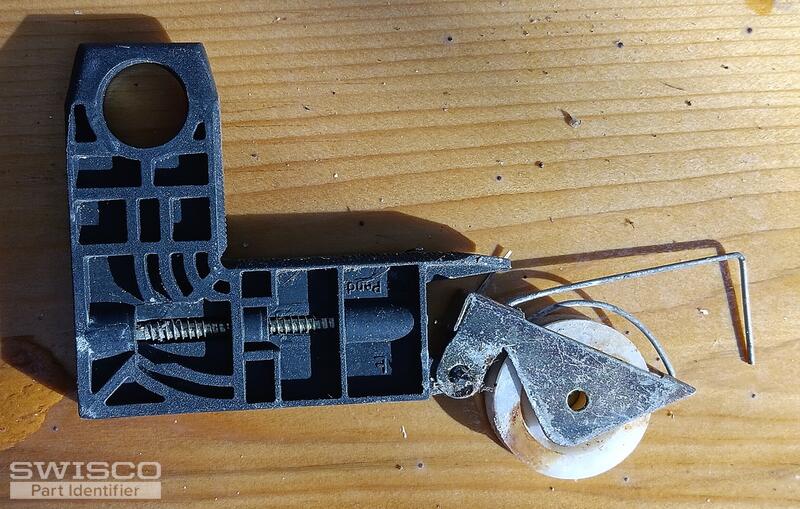

Slide in corner at 1 1/8 on both ends and wheel is 1 1/4 inch. Lenght is 2 3/4 and wheel side total length is 4 3/4 not including the spring wire Black corner thickness is 3/8 inch

1 user uploaded image

Emily from SWISCO

Dec 28, 2023 8:03 am

Thank you for the additional photos! They're a huge help. We don't sell your exact corner but the 95-020 is similar in design. As for the roller, see the 84-016. Review the specifications for these parts and see what you think.

Dimensions for 95-020

Alternate view of 95-020

Alternate image for 84-016
