Does this look like correct channel balance replacement?

A quick learner from Seattle says:
In looking over your website and products I think I have found what I need, but as I am new to this I would appreciate your help in identifying the correct parts.

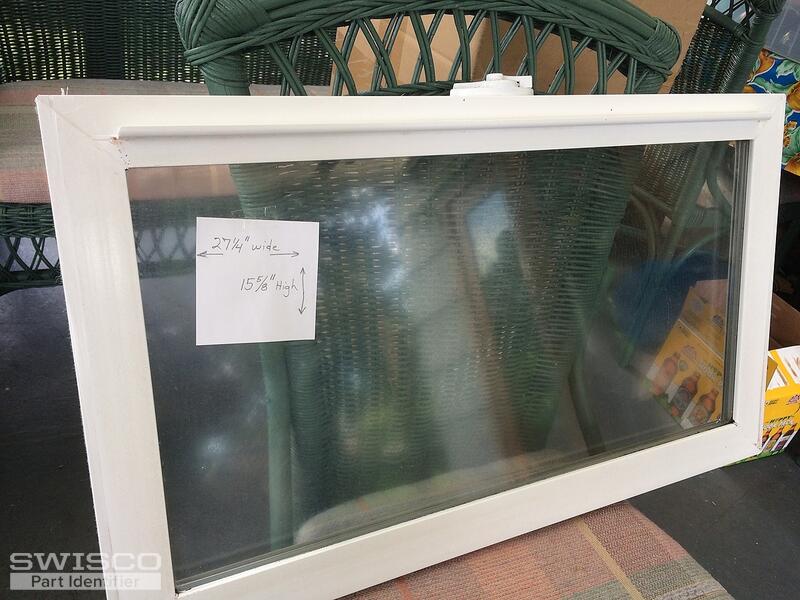

I need both channel balances for my vinyl window. I have enclosed a picture of the window with dimensions because I could find no numbers on the old balances and I do not know the weight of the sash. I am guessing it weighs between 6 and 9 pounds. What do you think?
Also are pics of the balance so you can judge if I have the right parts. My length is 13" and the top and show are both winged. Looks like 19-005 and15-005 to me.
Thumbnail of the uploaded file named IMG_0156.jpg
Thumbnail of the uploaded file named IMG_0155.jpg
Thumbnail of the uploaded file named IMG_0154.jpg
Thumbnail of the uploaded file named IMG_0153.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either a Series 380 or Series 385 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.
