Door Handle latch broke. Seeking replacement. : SWISCO.com

Home Owner from Ontario Canada

Oct 6, 2023 8:56 am

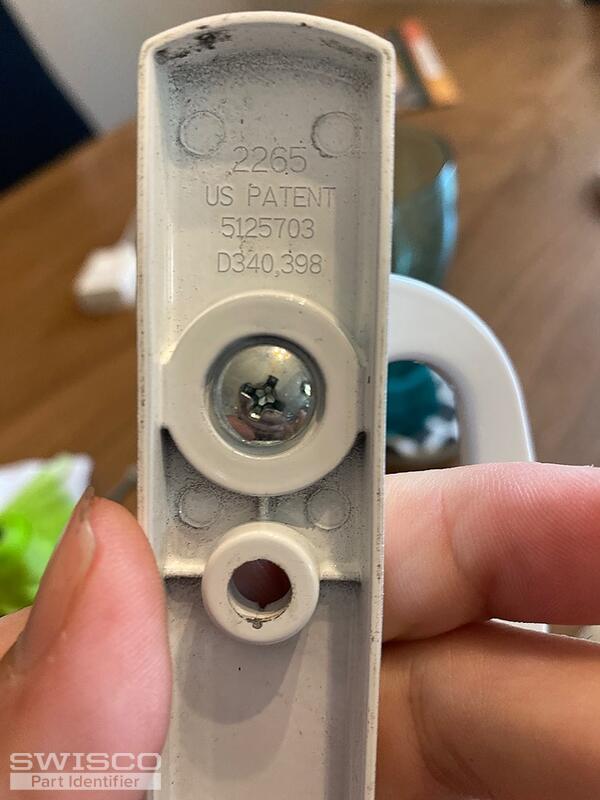

Handle says 2265 US PATENT 5125703. D340,398

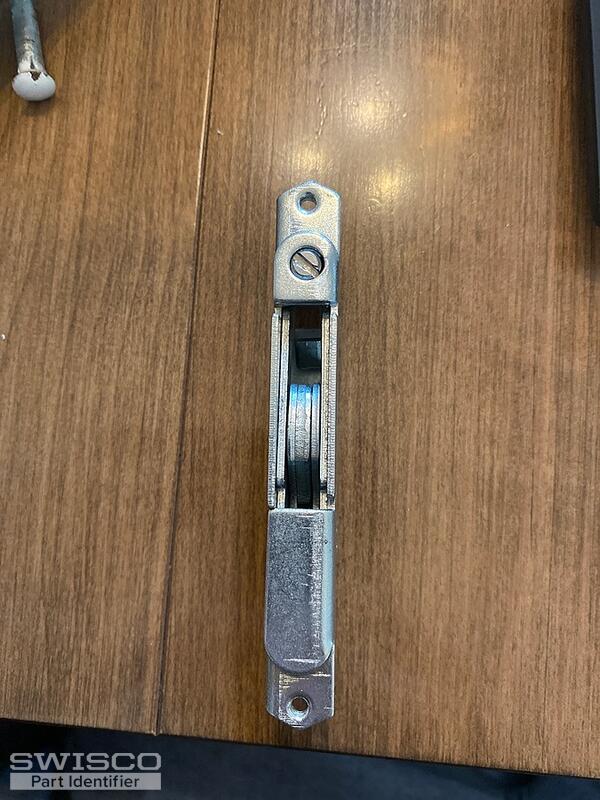

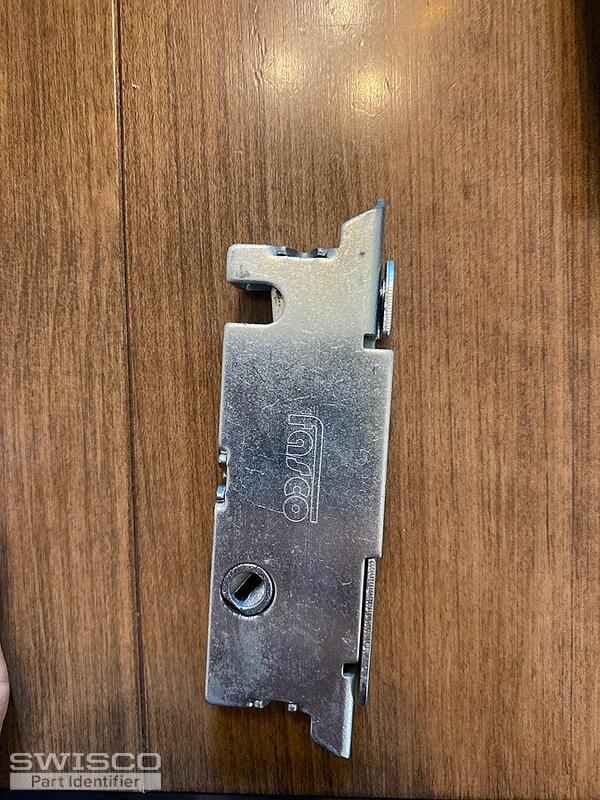

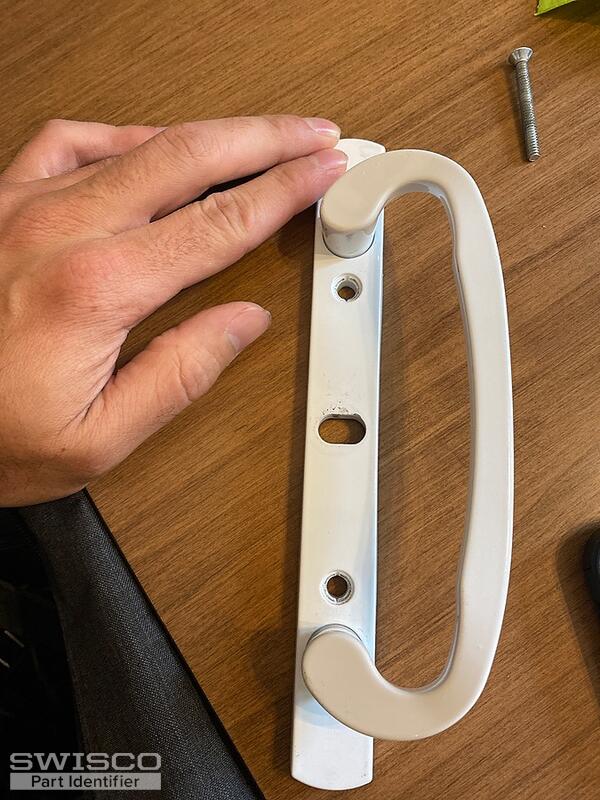

4 user uploaded images

4 Replies

Jasmine from SWISCO

Oct 6, 2023 3:11 pm

Thanks for writing in! Your handle set reminds me of our 82-089 Legacy Keyed Handle Set. The keyed version is part 82-086. If you are only looking to replacement the thumb latch, you can use part 82-107.

The internal mortise lock is part 82-218. This is available is stainless steel as part 82-243. Carefully compare the dimensions to confirm that this is the right fit.

Profile view of 82-218

Opposite side view 82-218

Home Owner from Ontario Canada

Oct 6, 2023 3:23 pm

I've seen this handle come up. My concern is that handle has the latch on an offset position. The handle I currently have, and the corresponding holes in my door, are for a centred latch

Jasmine from SWISCO

Oct 6, 2023 3:57 pm

Thanks for confirming this information. If you are looking to replace only the thumb latch, the 82-107 should still work fine. However, if you are looking to replacement the entire handle, Take a look at our 82-030. The keyed version of this handle set is the 82-030A.

Hole center dimensions for 82-030
