Door Handle and Rollers Replacement

Contractor from Walnut Creek
Please help me find a replacement part for door handle and rollers for this sliding glass door.
5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

I am confident we have the replacement hardware needed to repair your patio door but there are a few details I'll need to confirm to identify the correct parts. To start, I'll need to know the measurement for the distance between the installation holes on the handle set. This is the distance between the screws on the piece still attached to the door.

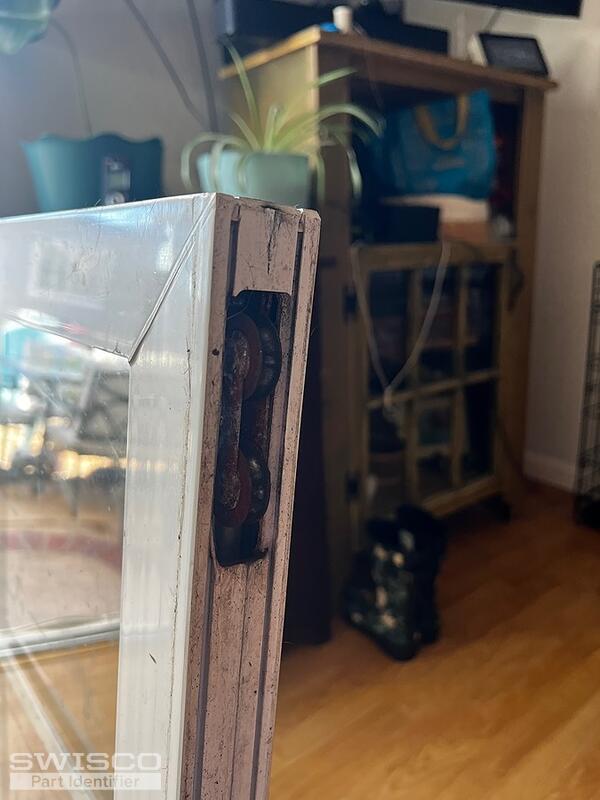

To identify the rollers, I'll need to see a photo of one removed from the bottom of the door. Take a look at our video tutorials tagged below as a reference for how to remove/install them and what we'll need to identify them.

Please don't hesitate to reach out with any other questions you might have.

Jasmine
Jasmine from SWISCO
SWISCO
Expert

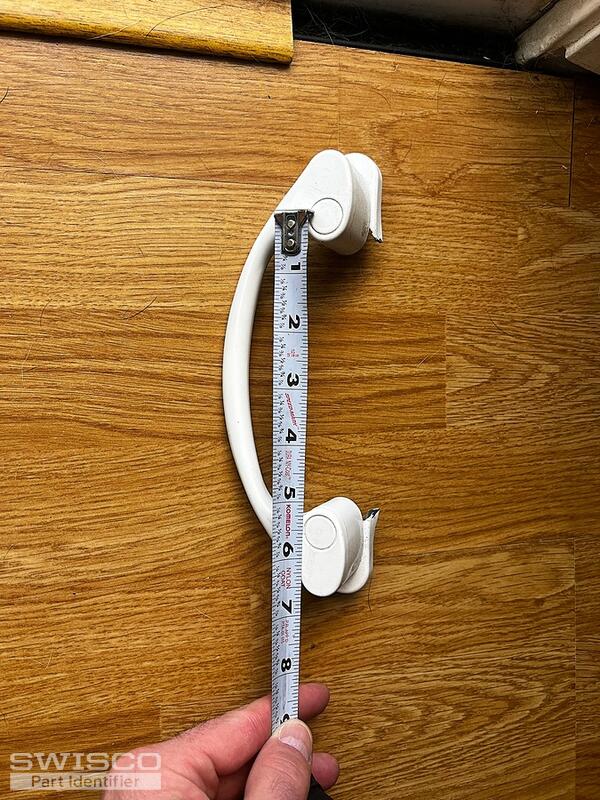

Regarding the handle set, I am requesting the distance between the holes that are used to secure the handle set to the door. I believe what you've given me is the distance between the measurements for the installation holes that secure the handle pull to the backplate.

We cannot provide you with a replacement just for the pull, so you'll need to measure the installation hole spacing to confirm the right hardware. That being said, take a look at the 82-030 Sliding Patio Door Handle Set. If this measurement is not a match, please confirm your exact dimension.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

I'm afraid I cannot identify the rollers without the additional photos. Unfortunately, there are far too many to make a guess based on the photos provided. The entire selection can be viewed in the Multi Wheeled Assemblies section of our online catalog. If you are not able to narrow down the replacements, I'm happy to help but I will need to see the requested photos.

Jasmine
Jasmine from SWISCO
SWISCO
Expert

I have not come across a patio door handle set that has an installation hole distance that measures exactly 4". That said, I do believe the hole spacing is 3-15/16", which is the "standard", so the recommended handle should be the one you need.

To confirm this, you'll need to double check the dimensions, starting at the center of the top hole to the center of the bottom hole. Unfortunately, I can't confirm it from the photo of the measuring tape.

I'll happy to take a look at the rollers once you are able to provide them. No rush!

Please feel free to reach out with any other questions.

Contractor from Walnut Creek
Hi Jasmine, you are correct the distance is 3 15/16". Please provide a link for the replacement part. Thanks
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The link has been provided in my response above and the product is also tagged below this thread. You may also search the product code on the website.

If you need assistance with placing the order, you may call (888) 991-1929 to speak with a member of customer service.

Please let me know if there is anything else I can assist with in the meantime.
