Door handle inquiry

Question

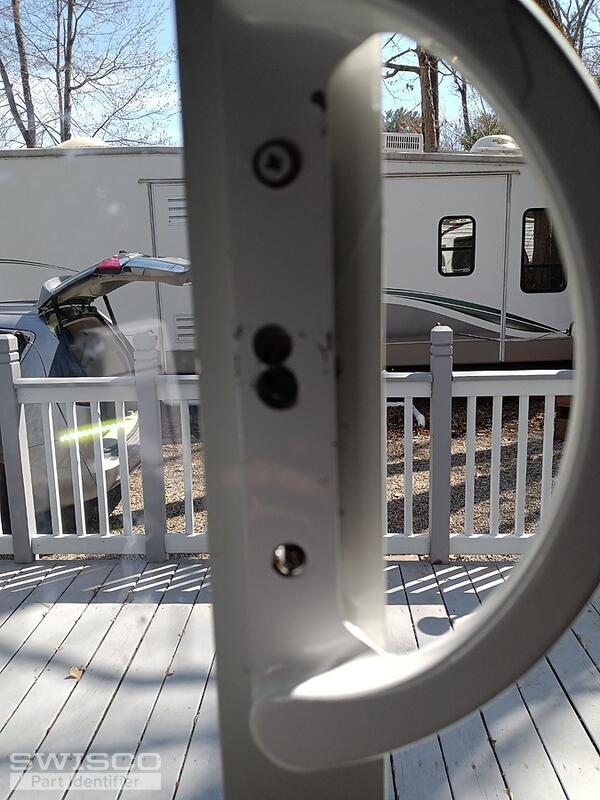

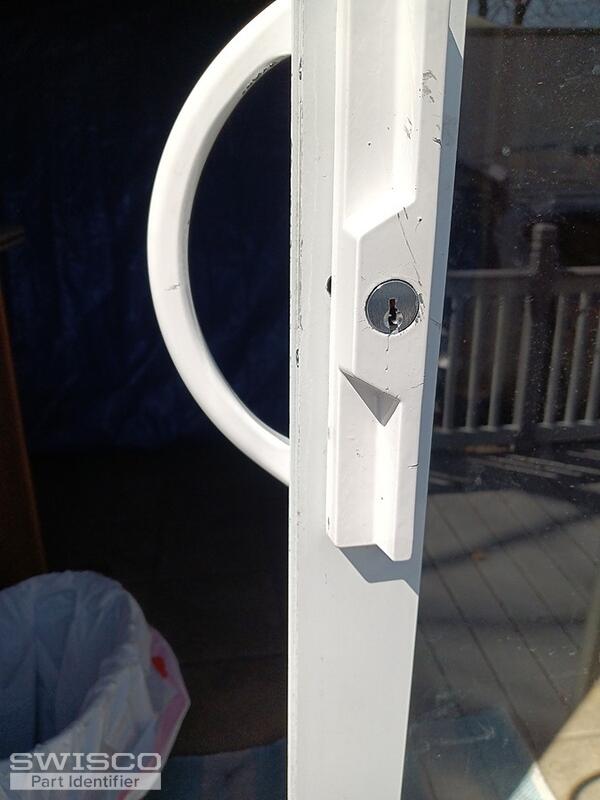

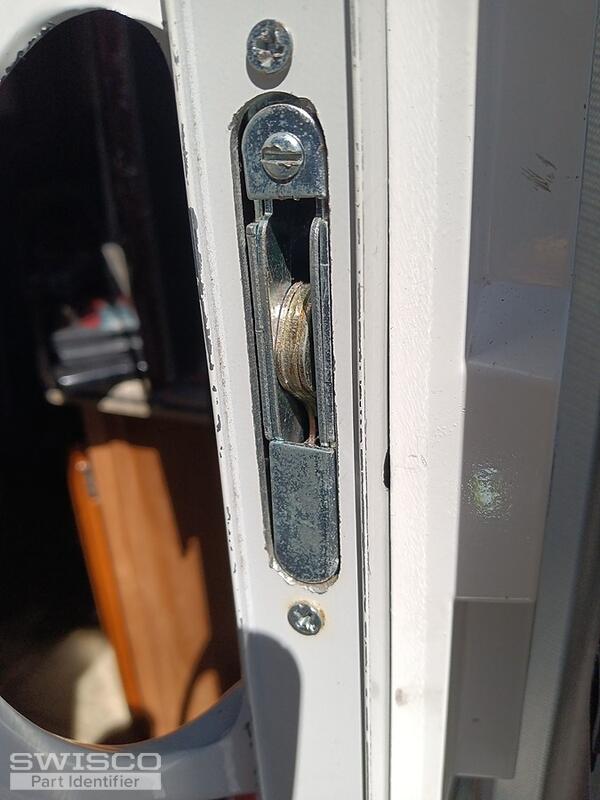

puma camper slider is 1" thick door 3 7/8 screw hole on opening door mortice screw holes 3 1/2 distance middle of screws holes                                  half way of 3 7/8 is key hole for lock that connects key hole to unlock button  to lock and unlock lever from inside.

Casey · Accepted Answer

Hello,

Your handle set resembles the 82-030 but please note that this assembly has 3-15/16" installation holes as shown below. The 82-030 also does not come with a key lock but it is compatible with the 82-310 key lock sold separately.

We also offer the 82-218 mortise lock that looks like a match for yours. See the videos related on this page for more information and thanks for posting!

Hole center dimensions for 82-030

Alternate view of 82-310

Profile view of 82-218

Opposite side view 82-218
