Door handle and lock

A home owner from La Crosse, WI says:

January 18, 2023

When closing the door, the lock falls down into the locked position. The lever will not stay up. We think it's a Vinylpro or Provinyl brand door which is no longer in business.
Do you have a part that would work for this door?

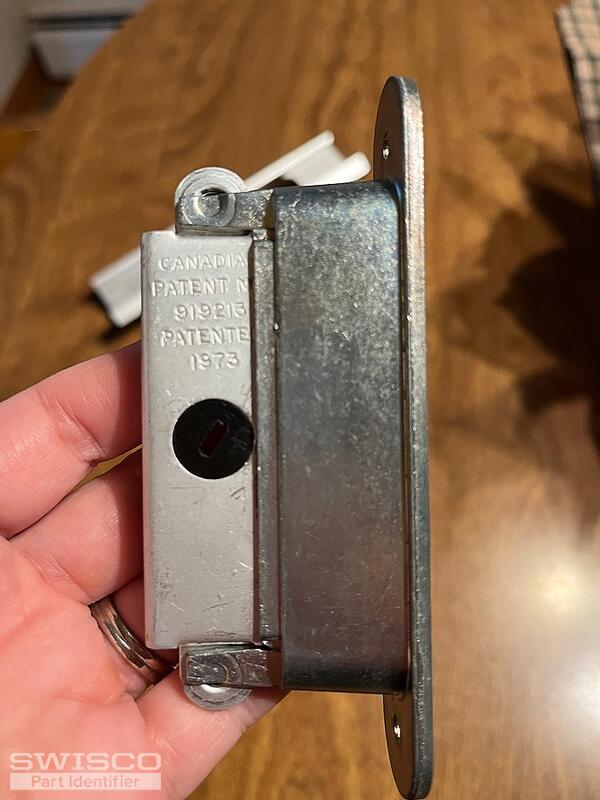

Thumbnail of the uploaded file named 26047E26-6773-4AD4-9E2F-7AE4BF8A231F.jpeg

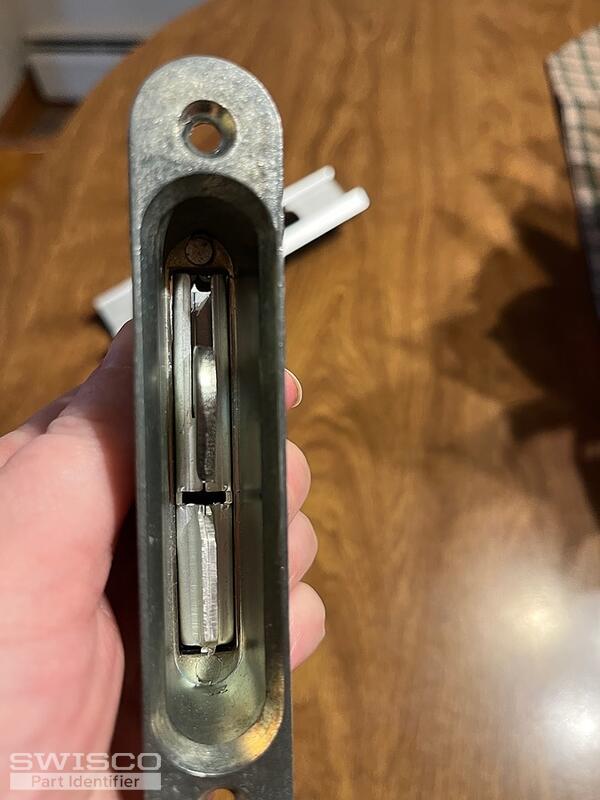

Thumbnail of the uploaded file named 0FA7FC8D-04F0-41D5-AE1F-9C4495F27E36.jpeg

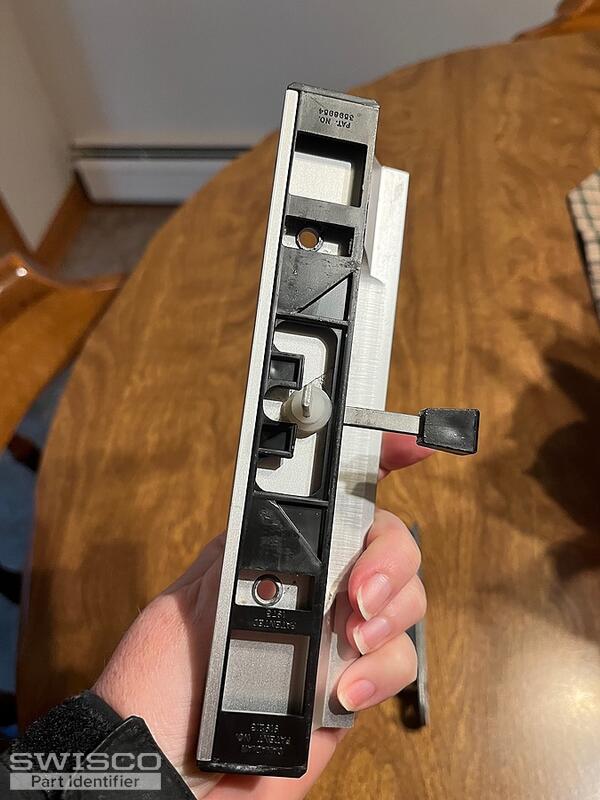

Thumbnail of the uploaded file named 34BB6090-325D-4E6F-98BC-A07BB215941C.jpeg

Casey from SWISCO responded:

January 20, 2023

Hello,

I would recommend starting by comparing the dimensions of the 82-211 and 82-214B to your original mortise lock to see if one of them matches up.

These lock assemblies are commonly used with handle sets that have 3-15/16" hole spacing, such as the 82-032. Take a look and review the specifications of each part to see what you think. Thanks for posting.

Alternate image for 82-211

Dimensions for the 82-214B lock and its keeper

Detail of outside handle 82-032

A home owner from La Crosse, WI says:

January 20, 2023

82-211 Looks like it would work well BUT...after we put the lock and handle back in place, the lever is working again. We're thinking the little lever wasn't in the right position to make it work right. So, we're keeping our fingers crossed that this will keep working for us. Thank you so much for your help. I'm keeping what you sent, in case we ever need it again.

Casey from SWISCO responded:

January 20, 2023

That's great to hear that your original mortise is now working. Sometimes reinstalling the hardware can correct various problems. If the mortise fails again, we'll be here to supply you with a replacement.

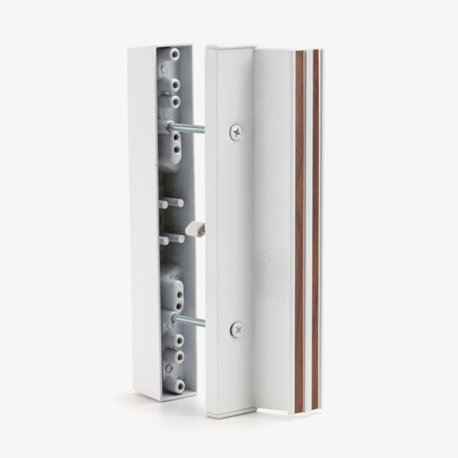

White Handle Set, 3-15/16"

82-032

$31.82

Mortise Latch & Keeper, 3/4" Wide

82-211

$18.77

Mortise Latch & Keeper, 7/8" Wide

82-214B

$18.27
