Door hinge

A quick learner from Westchester says:
May 10, 2019
Hi I need assistance with part U.S. Pat. 3.041.65 / CAN. 673.838 119631. I was reading your posts regarding the above part. Can you clarify which part is the best replacement? Is it 023-011 or 023-047. From what I can tell it appears to be 023-047.
Thank you

RG
Thumbnail of the uploaded file named EA90BB87-FFEF-4BBE-8749-FF39155C2D0F.jpeg
Thumbnail of the uploaded file named 15B51EB4-1094-4346-84BF-C1F3F97737F3.jpeg
Thumbnail of the uploaded file named 3F446ADB-AEC2-4267-936F-635039C3FADF.jpeg

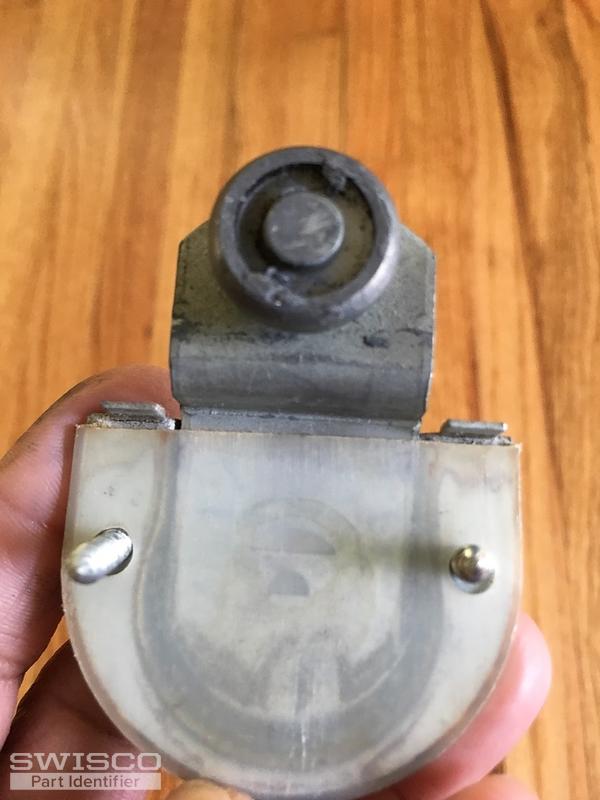

Thumbnail of the uploaded file named 5E66EA63-FACB-458E-8687-BD7A18B03CEF.jpeg

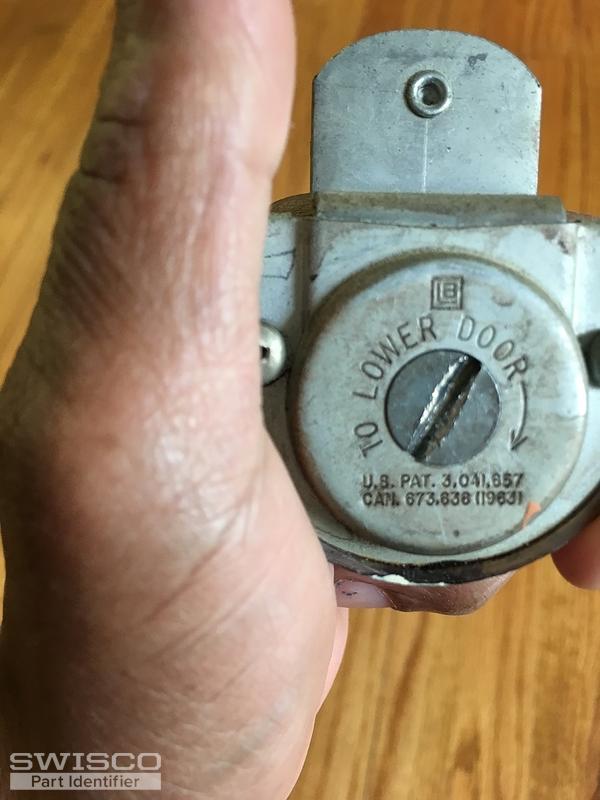

Thumbnail of the uploaded file named 13C7323D-EA32-4C13-B787-F64B525B1A0F.jpeg
Profile picture of Bob
Bob from SWISCO responded:
May 13, 2019

Thanks for posting. I agree, the 23-047 looks promising. Go over the dimensions listed in the pictures on the product page and let us know if they differ in any way.
Profile picture of Bob
Bob from SWISCO responded:
May 13, 2019

The 23-047 has slightly different dimensions from, say, the 23-031. For instance, the 23-047 has an offset of 1/2", while the 23-031 has an offset of just 1/8". The offset is the distance that the flange with the wheel 'juts' out from the main body off the assembly. If you click through the pictures on the product page, you'll see all the different dimensions listed. Compare each dimension to your old roller and just let us know how they differ. Also be sure to check the diameter of the wheel.
A quick learner from Westchester says:
May 13, 2019
Bob thank you!
But how do I measure the dimensions? Aren't all the same size? Or worded differently what should I be measuring?
