Door lock fell

A handy person from Santa Fe, NM says:
June 1, 2022
I need the locking mechanism to this door .. it fell in between the glass and I don't know how to retrieve it. the handles are fine otherwise.

thank you for your assistance.
Lisa

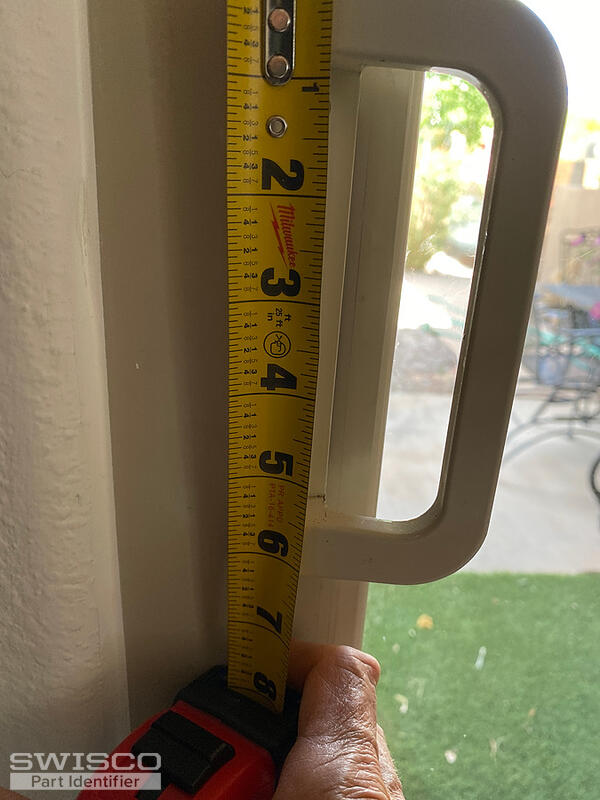

Thumbnail of the uploaded file named IMG_8158.JPG

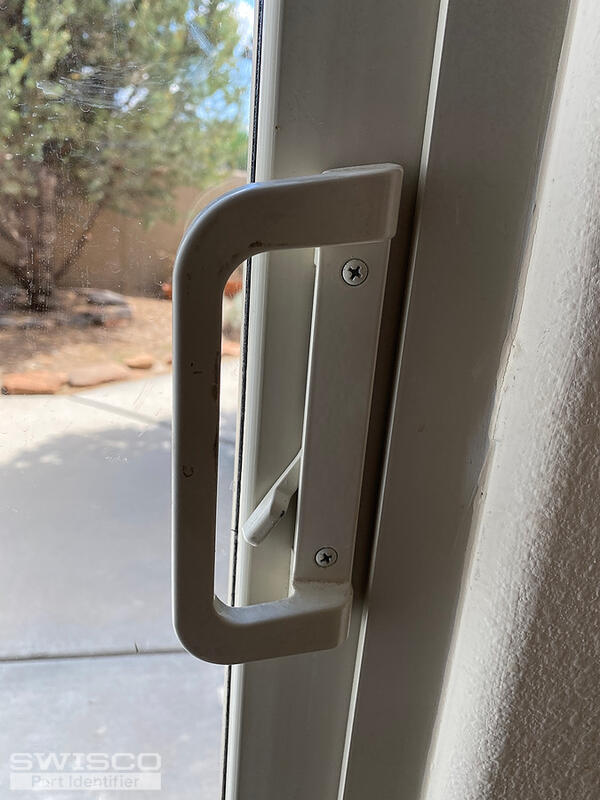

Thumbnail of the uploaded file named IMG_8161.JPG

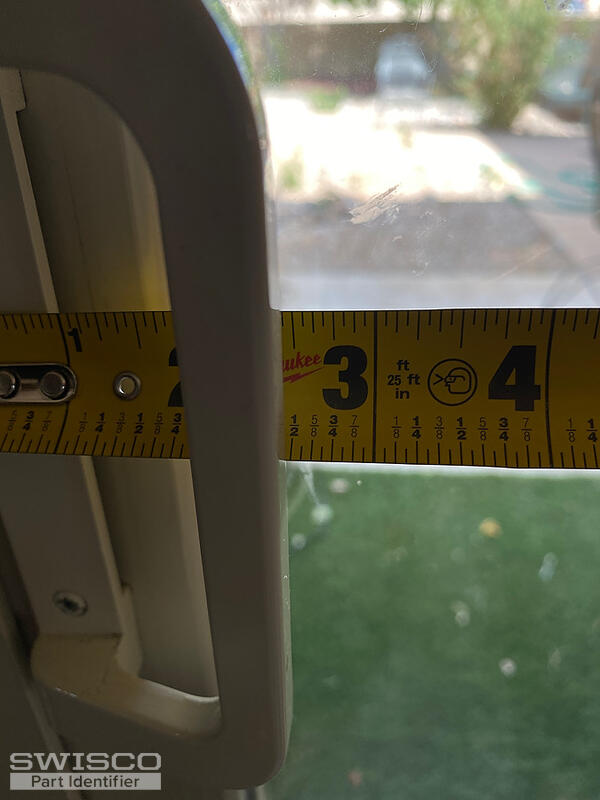

Thumbnail of the uploaded file named IMG_8160.JPG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
June 7, 2022

Hey there, thanks for posting. Your handle set looks similar to the 82-030, which has a 3-15/16" hole center spacing. This type of handle set is designed to work with a mortise like our 82-218. You might want to check that your mortise is the same style just to be safe, but I feel pretty confident that it will be.
A handy person from Santa Fe, NM says:
June 7, 2022
Thank you Dave - I ordered the Mortise lock (two in fact).. I may followup and order the handles also. Thank you!
