Door roller repacements needed for old sliding patio door. Can also just replace the wheels only?

Question

Original 60's era heavy aluminum sliding glass door. Need to replace rollers pictured. No markings on door for manufacturer or anything else. Roller says 'General Bearing Mineola NY'.

Roller wheels are 1 11/16 inch diameter, and 7/16 inches wide. I think with a 1/4 inch roll-pin axle about 3/4 inch long.

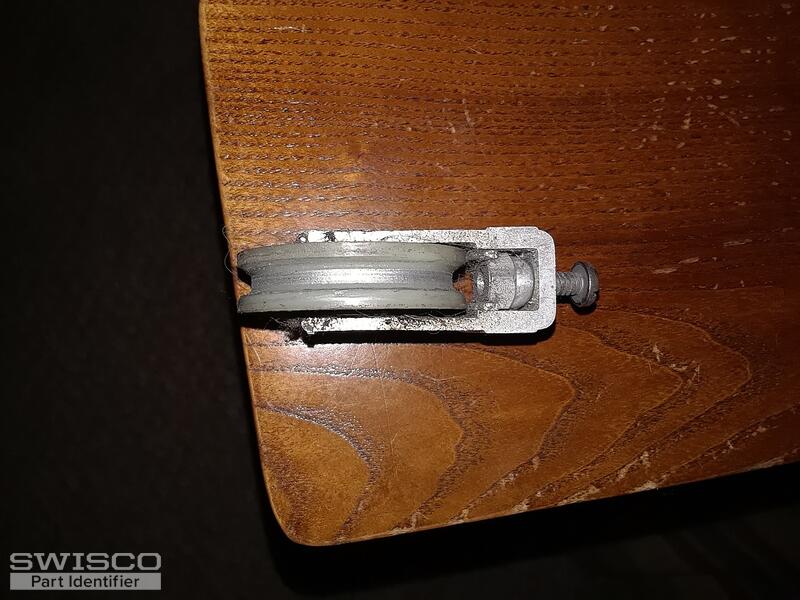

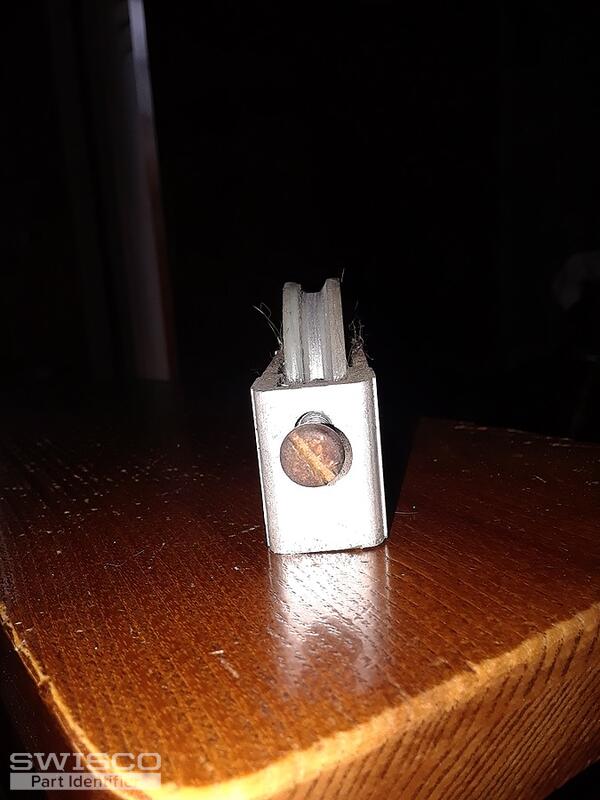

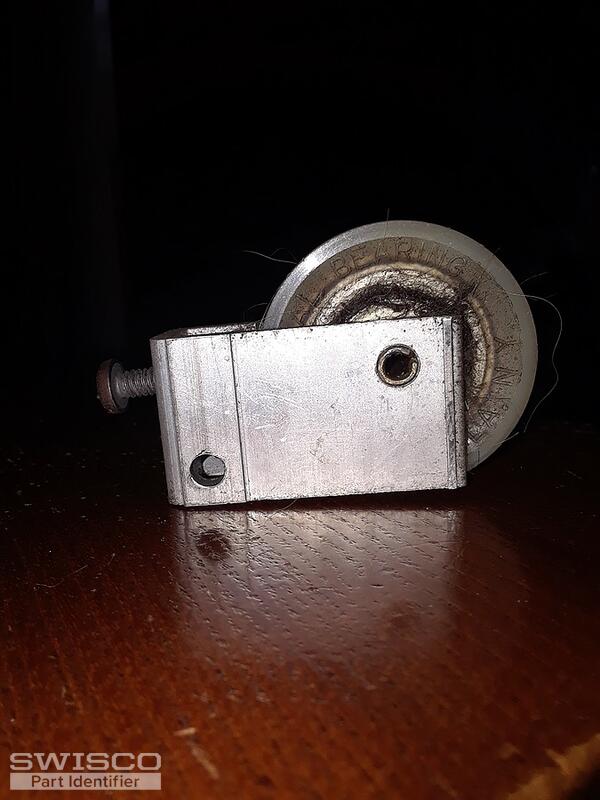

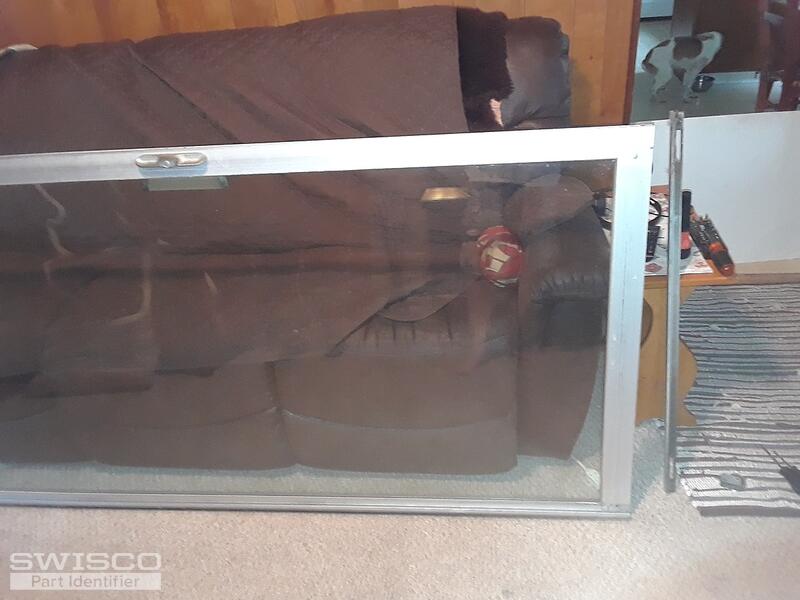

Pictures show the actual door, the roller assemble I removed, and the roller assembly as it is installed in the door.

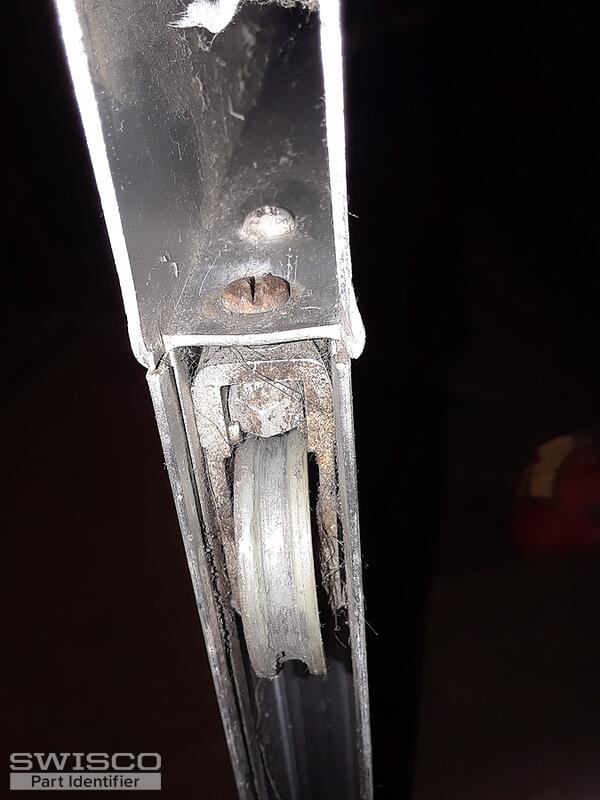

In the picture showing the roller assembly IN the door frame, the bottom screw is the adjustment screw, the top screw just hold the frame together and is not removed.

The assembly is 1 inch high, and 1 14/16 inches long and 3/4 inch wide.

Thanks for your help.

Dave Sr. · Accepted Answer

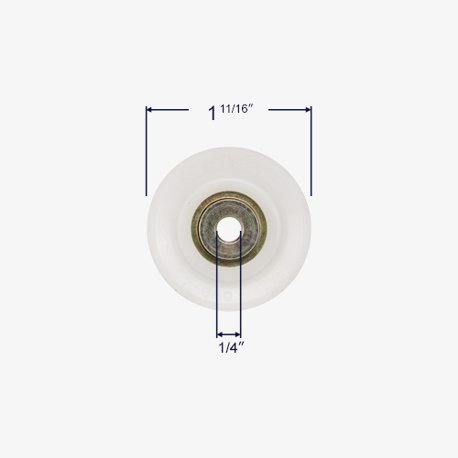

We unfortunately don't sell this roller, but you may be able to just replace the wheel since the housing looks to be in good condition. Take a look at the 81-237. Check the dimensions of the and see how well they compare to your wheel. We also sell the 81-310 axle kit.

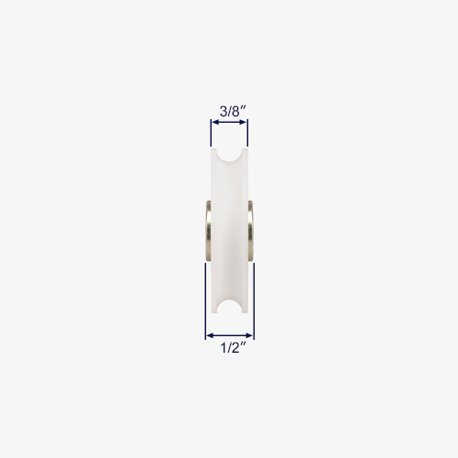

Alternate view of 81-237
