Door sweep for Marvin Integrity door

A quick learner from Virginia, USA says:

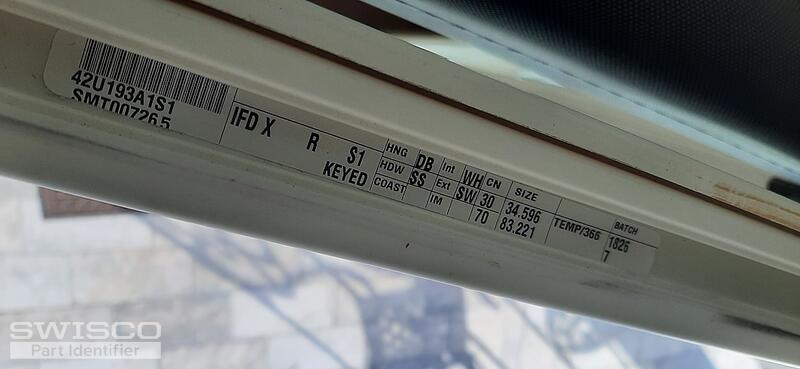

Need door sweep for Marvin Integrity 3x0 6x8 exterior door. See photo for specs
Thumbnail of the uploaded file named 20221113_154048.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

I'm afraid this sticker doesn't tell us what kind of sweep your door uses. We'd be happy to help but we would need you to remove an undamaged sample and show us a clear view of the end profile to determine your replacement options.

A quick learner from Virginia, USA says:

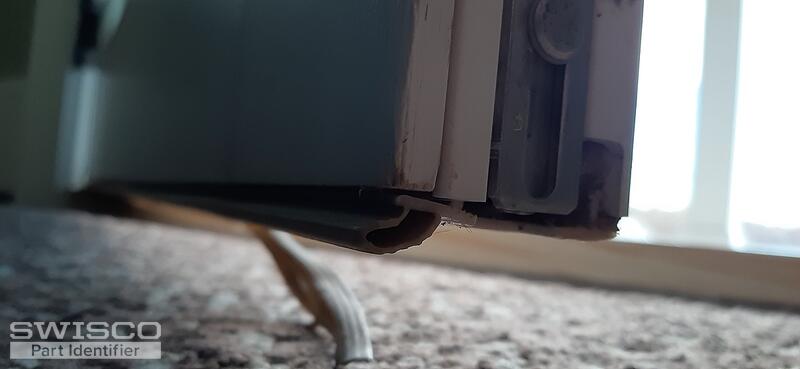

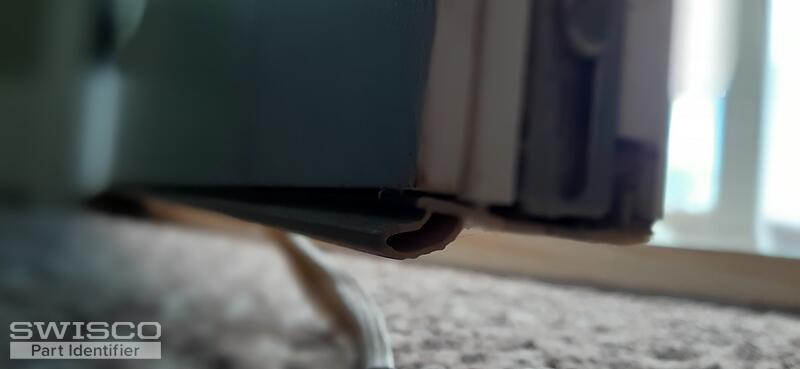

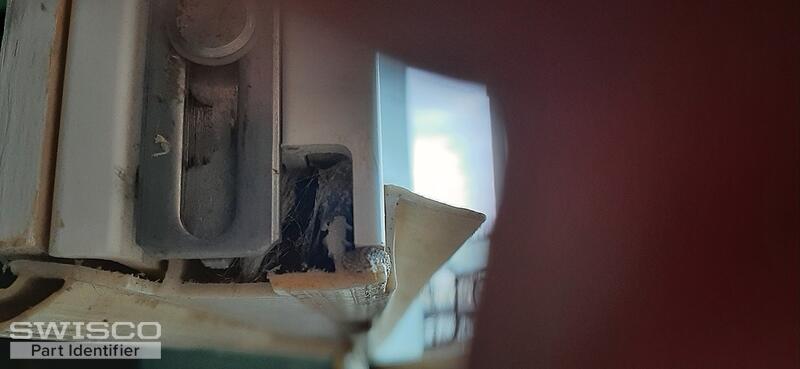

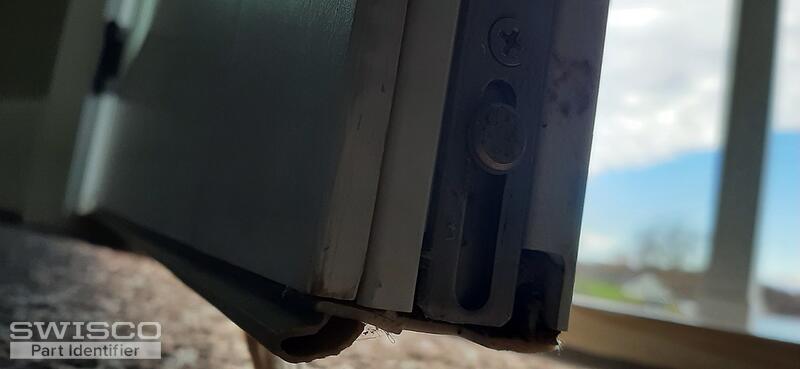

See if these pictures will be enough to identify the sweep
Thumbnail of the uploaded file named 20221125_111410.jpg
Thumbnail of the uploaded file named 20221125_111442.jpg
Thumbnail of the uploaded file named 20221125_111459.jpg
Thumbnail of the uploaded file named 20221125_111502.jpg
Profile picture of Tom
Tom from SWISCO responded:

We have two sweeps that may work for you: either the 58-189 or the 58-176.

The 58-189 installs using two kerfs, which push into corresponding slots under the door. This appears to be how your current sweep installs, as well, but the catch is that the kerfs have to have the same position. Note that for our 58-189, the kerfs are spaced 7/8" apart. If yours don't have the same spacing then this product will not work.

As for the 58-176, this just wraps around the entire underside of the door and installs on the sides using screws. This allows is to be a lot more adaptable, able to install on basically any door that's 1-3/4" thick, but it's a little more work.
