Double Hung Tilt Pin/Sash Pivot Bar
Distributor from Chagrin Falls, Ohio
May 15, 2023 10:26 am

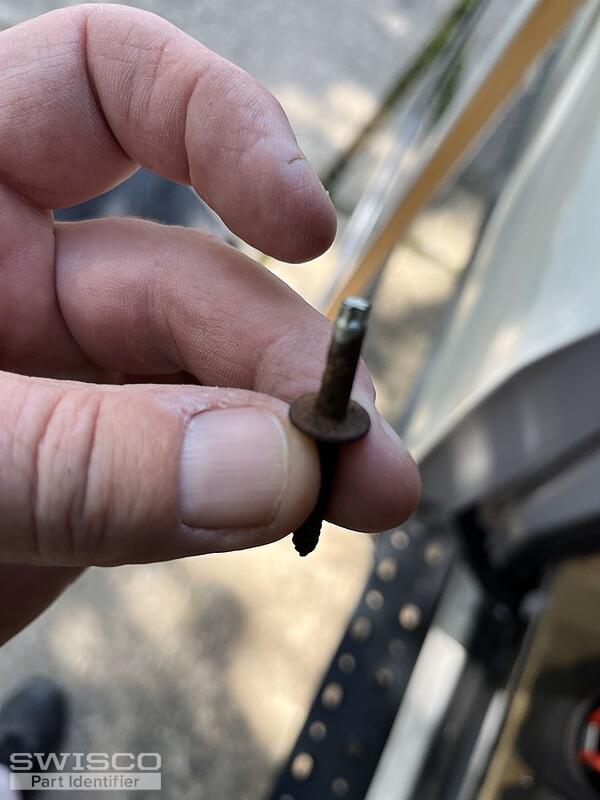

My technician ran into a tilt pin/sash pivot bar per the attached picture. This was reputedly from a 1995 Windsor Aluminum Clad Double Hung window. Can you identify the pin and what it is from and/or a replacement?
1 user uploaded image
4 Replies
Paul from SWISCO
May 16, 2023 2:56 pm
Hello,
We believe that your pin is used at the bottom corners of the sash that engage with the balance system to tilt in the sash. I'm not sure if your exact part is still available but we offer a screw-on tilt pivot. See the 20-016 and the specifications from our product page below. If you decide to give it a try, keep in mind that you'll need to be careful not to hit the glass when making a hole in the frame to install the tilt pin. Thanks for posting.
Dimensions for 20-016
Handy Person from 27519
Jul 8, 2023 11:07 am
What is the diameter of the pin?
Casey from SWISCO
Jul 10, 2023 8:10 am
We have received this question in the past and the diameter of the pin is just a hair over 1/8". I would say it's between 1/8" and 5/32". Thank you!
