Double Hung Window Coil Spring Replacement and Balance

Question

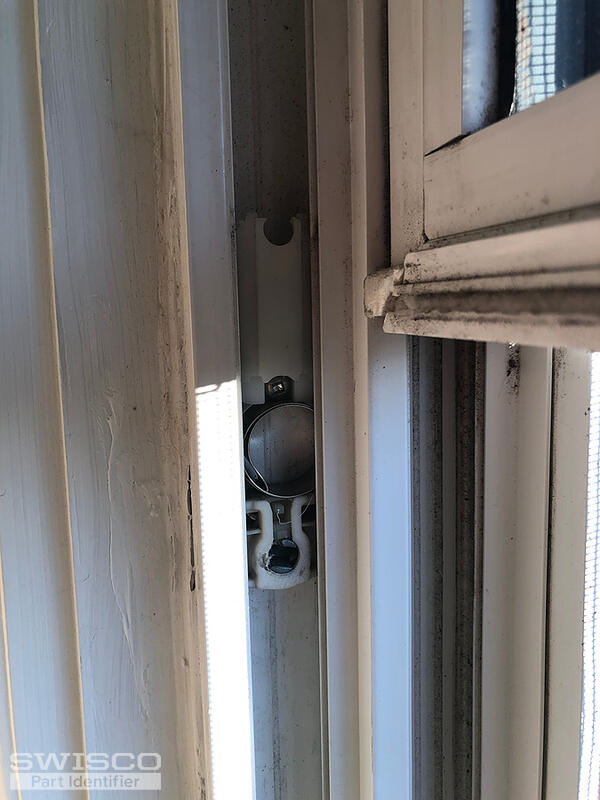

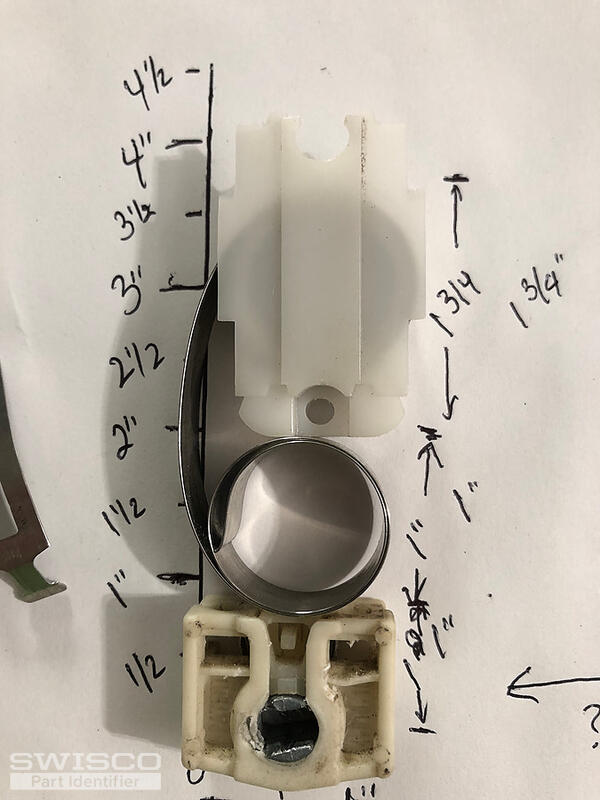

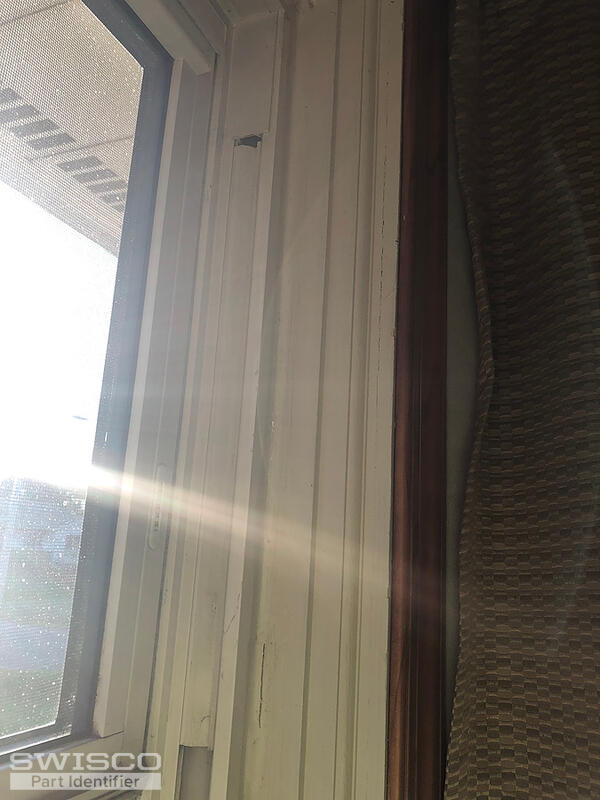

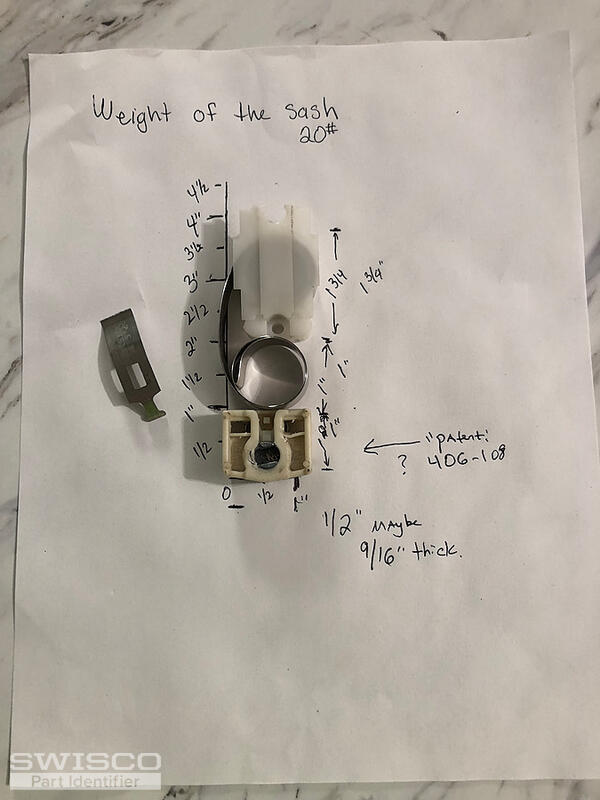

We need to replacement the entire mechanism including the coil, shoe and balance. The mechanism is 4" long and 1/2" thick. Please see attached picture. The window sash was 20lbs. We are looking for what part number we need to purchase for replacement.

Thank you in advance for your help.
Chris

Bob · Accepted Answer

Hey Chris. This is a Coil balance assembly. All of these parts are sold separately. The pivot shoe looks like the 15-111. If the coil spring is 1/2" thick, then it is a Series 160 Coil Balance. If the window weighs exactly 20 pounds, use a 10 pound S160-10 spring. Using one of these springs on both sides of the window will equal 20 pounds of support overall. If your old coil housing is undamaged you can reuse it--otherwise see the 15-150S. Let me know if you have further questions.
