Double coil spring balance

A quick learner from Blue bell pa says:
November 6, 2021
Need to identify the correct replacement part

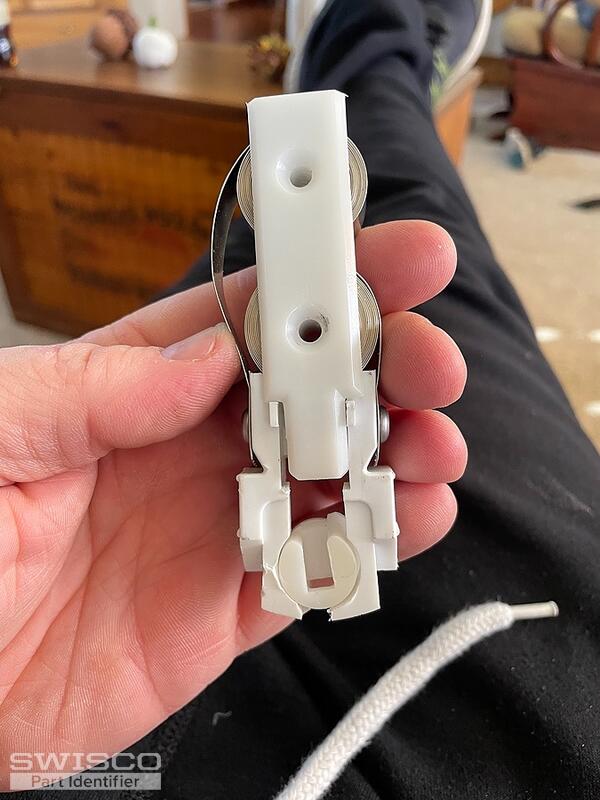

Thumbnail of the uploaded file named E6ECF3A7-7380-407F-8B96-E2D358A73C76.jpeg

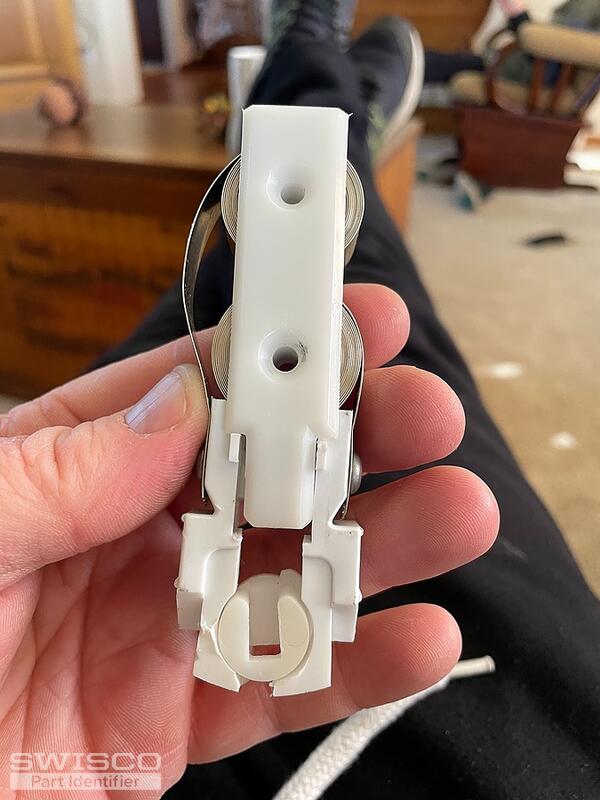

Thumbnail of the uploaded file named BCB1410E-7971-4F42-8C3C-C15859689000.jpeg

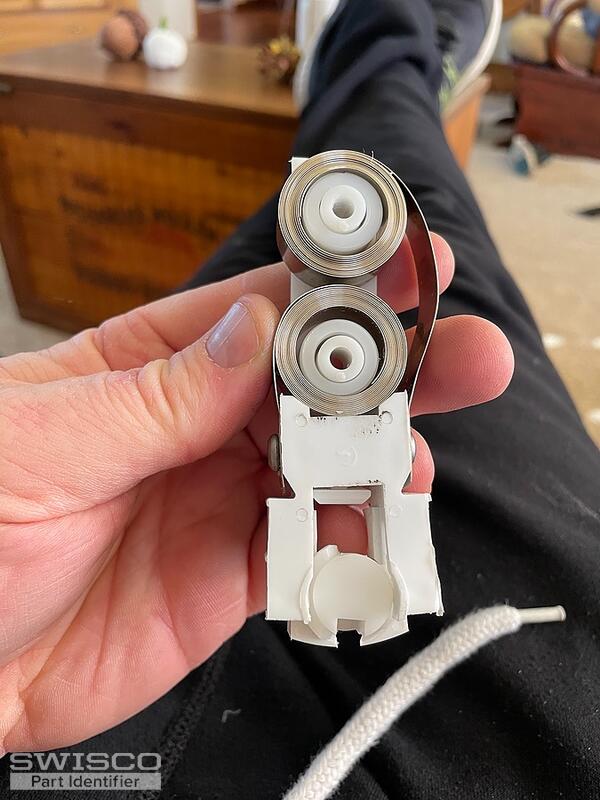

Thumbnail of the uploaded file named 0C40638C-7457-4A0C-90FF-64AEF85E36D4.jpeg
Thumbnail of the uploaded file named 404326ED-DE97-4B61-8E03-A81BED7C8503.jpeg
Thumbnail of the uploaded file named B3000D83-BBBF-46B7-9785-AFAD4E9261A9.jpeg
Profile picture of Bob
Bob from SWISCO responded:
November 9, 2021

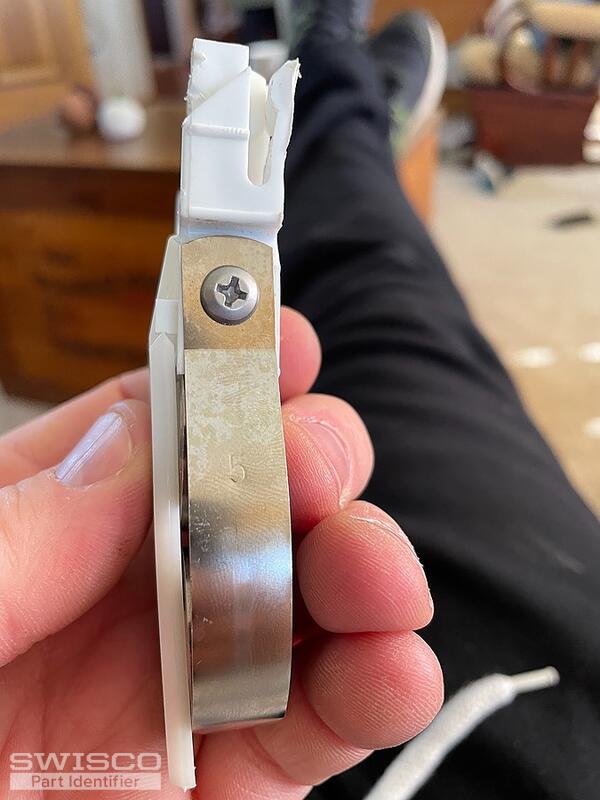

This is a 15-180 Pivot Shoe, which uses Series 190 Coil Balances. For balances stamped '5', use the S190-540 5 pound spring. If your old housing is undamaged you could reuse it, but otherwise see the 15-181 Double Support and 15-182 Bushing.
A quick learner from Blue bell pa says:
November 9, 2021
Much appreciated
