Double hung lilt latch
Quick Learner from New Hartford NY
Jun 23, 2024 7:04 pm

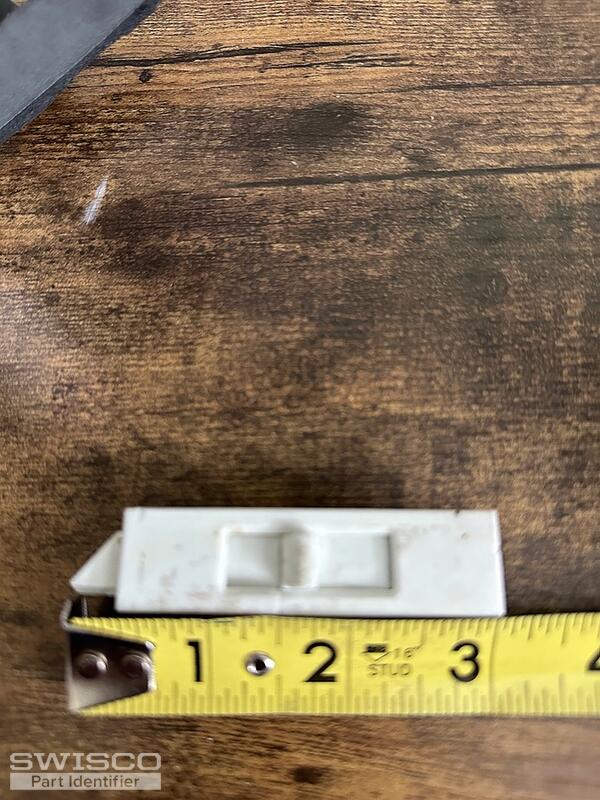

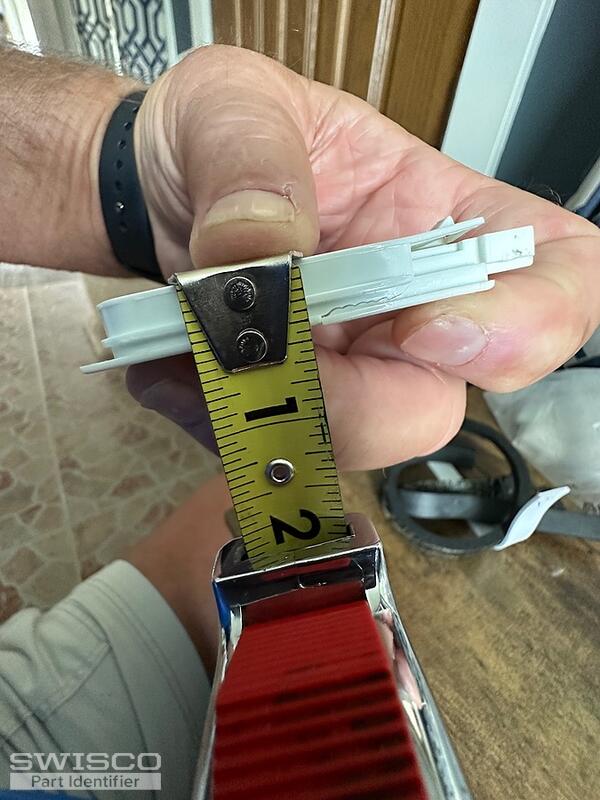

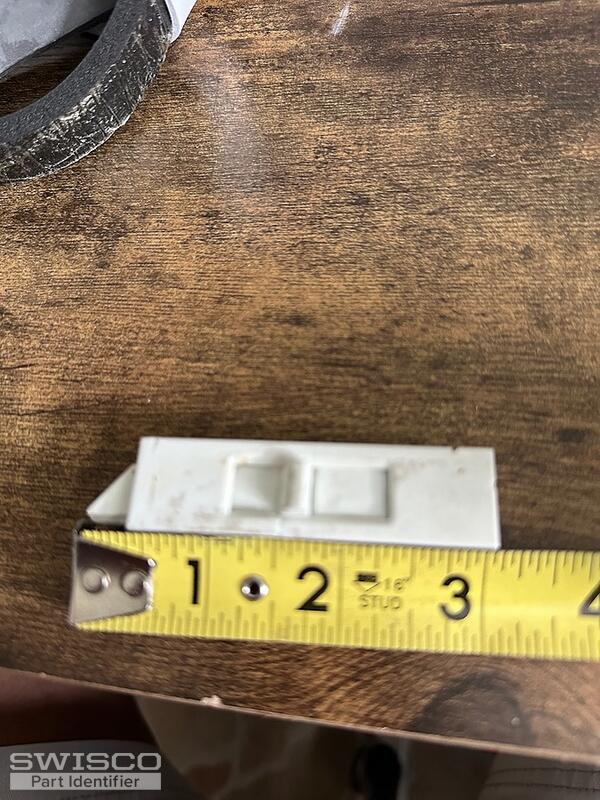

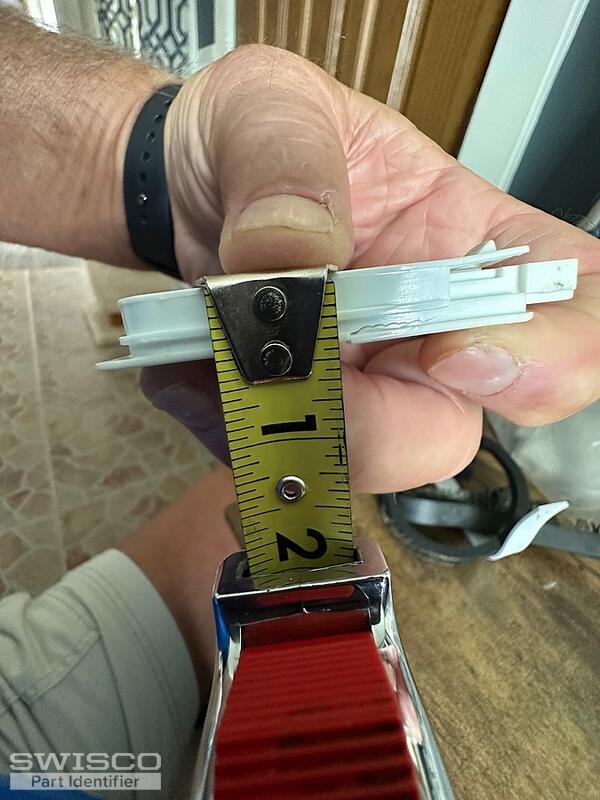

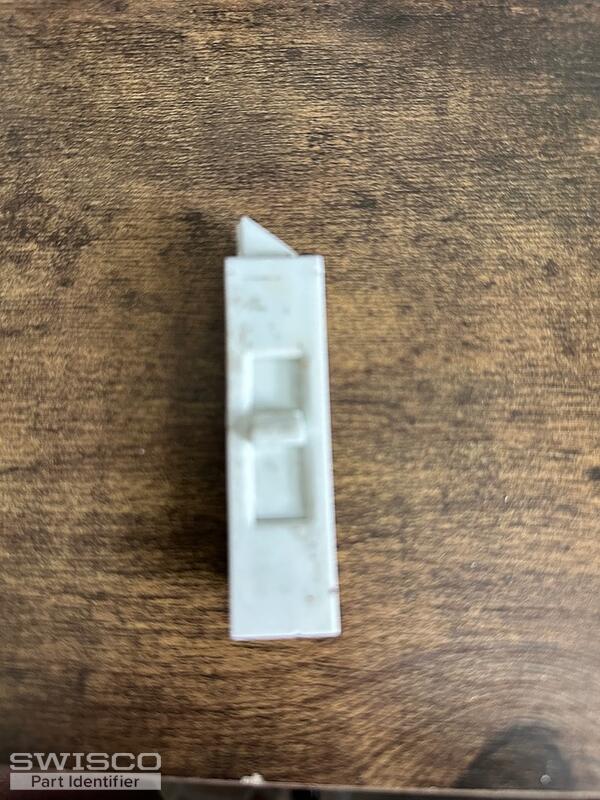

That's the best I can do with these pictures. I'm sure they had it left and right markings because this one is marked L. It fell apart on me and I couldn't find the spring, but there is a spring that goes with that too. I tried to do the measurements could you let me know, what I need to order
5 user uploaded images
4 Replies
Bob from SWISCO
Jun 23, 2024 7:33 pm
Thanks for posting. I think these might be the 26-243 and 26-244, which are a very commonly seen pair of tilt latches, but photos of measuring tape aren't always accurate to go by, so please compare with the diagrams below and let me know if anything differs, in any way. If so we'll try and find something better.
Alternate view of 26-243
Profile view of 26-243
Quick Learner from New Hartford NY
Jun 23, 2024 9:00 pm
The overall length is 2 11/16 Your example showing is 2 5/8
Where you show 1/2. Mine is 9/16. So they are close
Where you show 1/2. Mine is 9/16. So they are close
Bob from SWISCO
Jun 24, 2024 1:46 pm
Thanks for verifying. Unfortunately, we don't appear to have an alternative iteration of this part that has those precise measurements. At this time, the two products mentioned remain our best options.
I'm very sorry for the inconvenience.
