Double hung tilt windows

Question

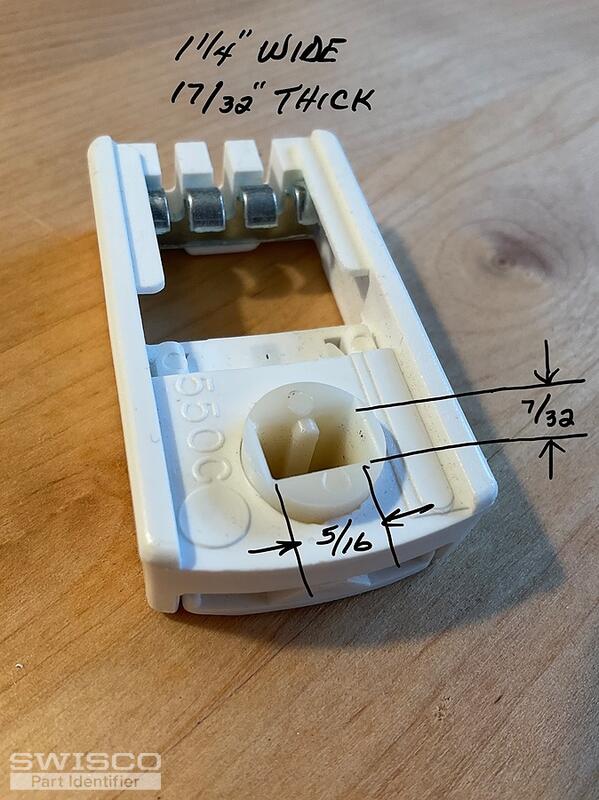

I need 16 pivot shoes. Marked (550C).

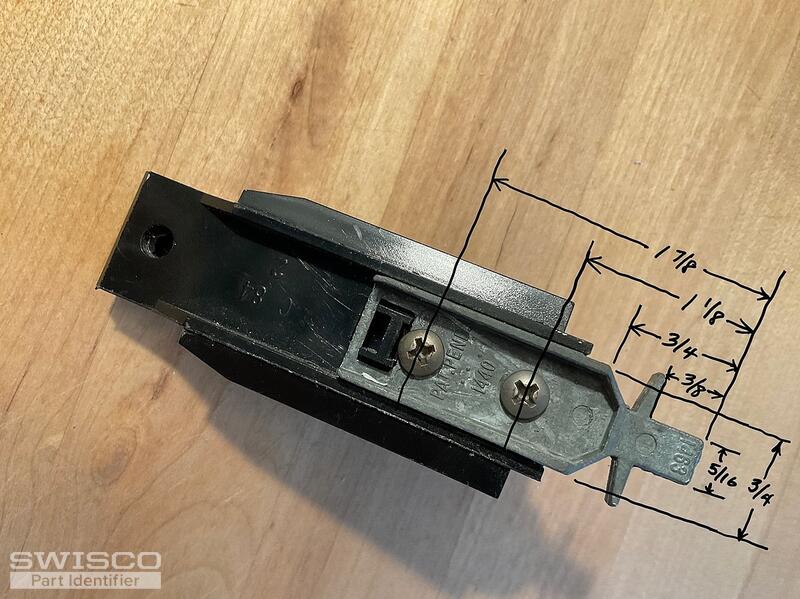

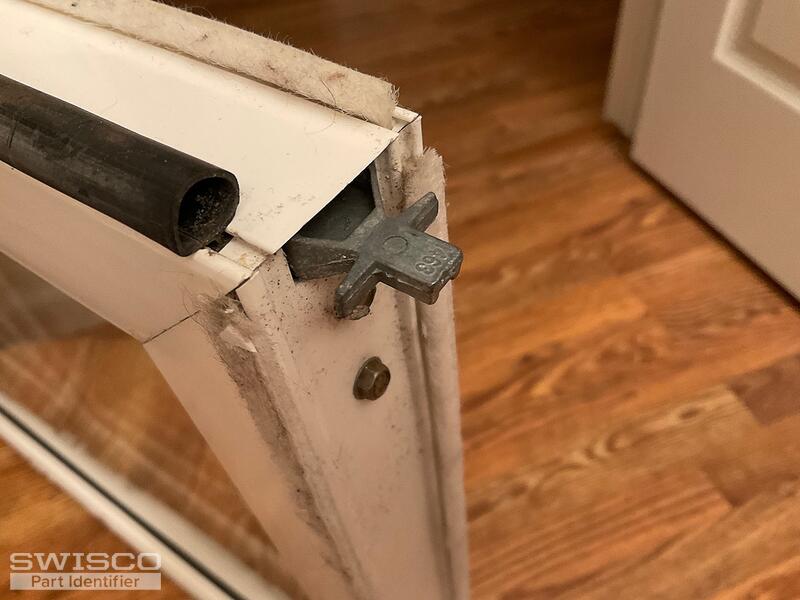

Two tilt bars. Marked (1463), (1440-1).

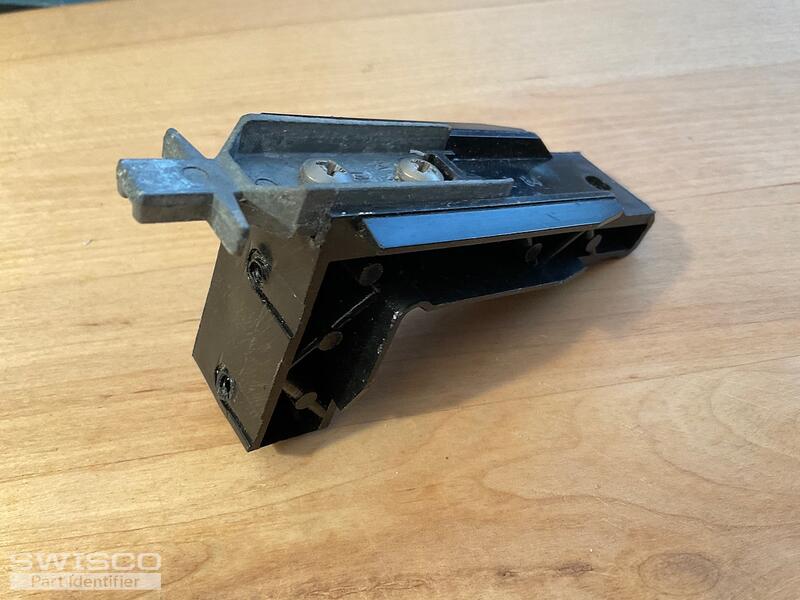

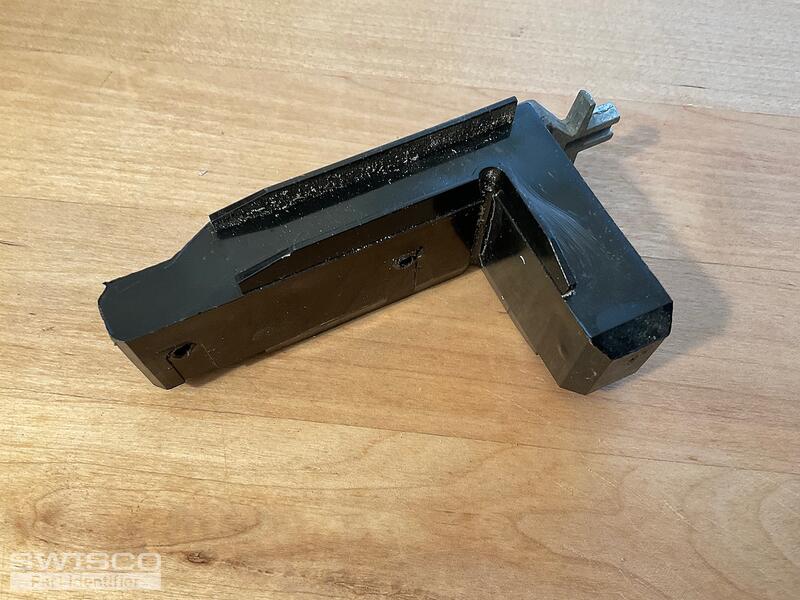

And hopefully one sash corner connected. Marked (C 84 2).
Some dimensions are on the five included photos.
Am able to make some modifications to make things work.
Thanks for any help!

Emily · Accepted Answer

Thanks for reaching out to us! The pivot shoe in your photos was discontinued and is no longer available but we recommend taking a look at our 15-118 as a possible substitute. As for the pivot bar, our 26-376 is similar and our closest match, though it lacks the horns on yours. Look over the specifications for these parts and see if you think you can get them to work for your repair.

We don't sell a replacement for the pivot bar housing in your photos, unfortunately. I am sorry for the inconvenience.
