Double hung vinyl coated window

A handy person from Rock Tavern, ny says:

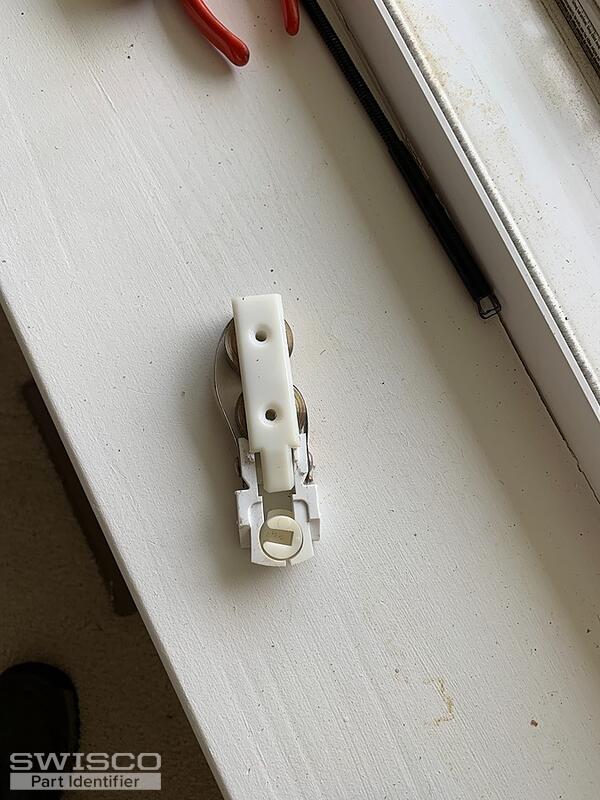

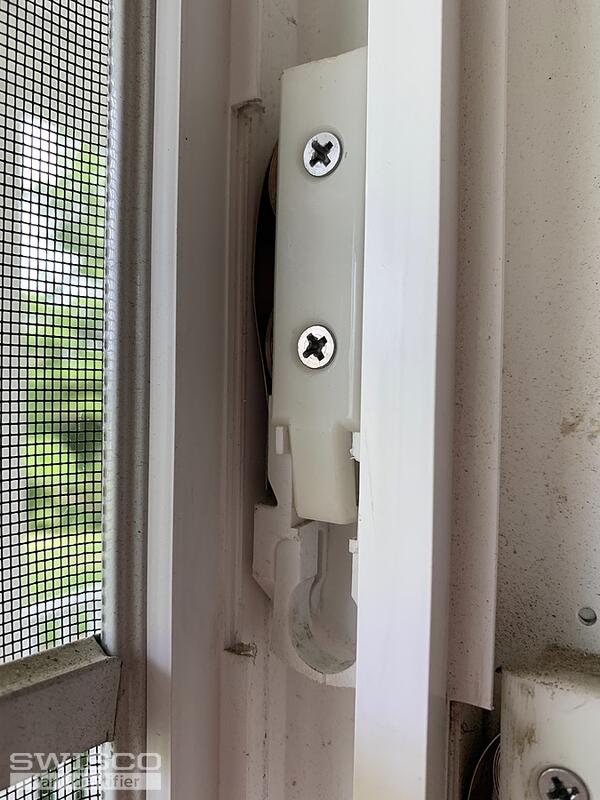

I think these are called pivot lock shoes and bars
The pivot piece is broke from the housing
Need 2 replacements
Thumbnail of the uploaded file named C1562196-0D60-4132-B94C-6F706E818189.jpeg
Thumbnail of the uploaded file named 95B6D76D-B4DD-47AE-AD4E-0BCDF485B055.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

It looks like you have our 15-180 coil balance shoe which uses our Series 190 coil spring. Look over our dimensions and compare them to your current hardware to see how they match up.

If you'd like us to identify your pivot bar, we'll need to see an undamaged version removed from your window, along with dimensions, to compare to our inventory.

Thank you!
