Double hung window parts

A handy person from Alsip Illinois says:
I need 4 of the metal bottom pieces, two top latches. A16 inch spring and two brake shoes. Any help would be greatly appreciative. Thank you
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named E4366358-0EA9-4CB4-B3D6-39C520AC3EBE.jpeg
Profile picture of Tom
Tom from SWISCO responded:

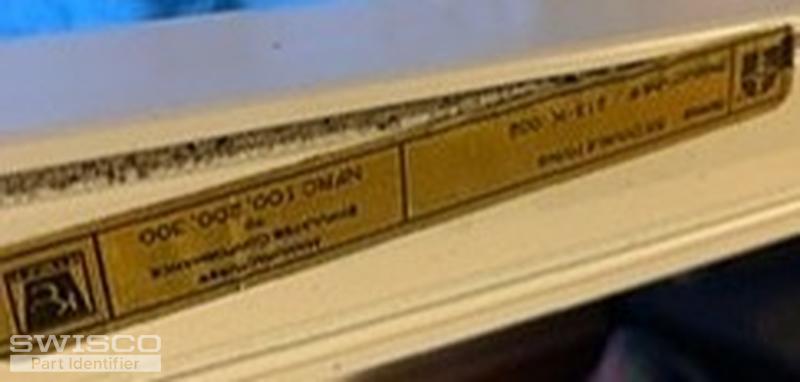

Thanks for posting! Looks like you need a tilt latch, pivot bar, pivot shoe, and balance. Unfortunately, I can only identify your pivot bar and tilt latch from your third photo. These look like our 26-021 and 26-229, respectively. Carefully review our dimensions and let me know if you agree.

For the balance and pivot shoe, I'll need you to remove these from the window entirely so that we can get a good look at them. I'd especially like to see the hook your balance uses to clip to the shoe, the stamp printed on the balance, and how it installs at the top of the track. With that info I will do my best to find a good match.

A handy person from Alsip Illinois says:

Yes those look like what I need. These are the picks of others

Pivot shoe is 1/2 inch thick and 1 and 1/2 inches tall

Thumbnail of the uploaded file named C081FD69-BF26-45CD-A24A-84A54BB32155.jpeg
Thumbnail of the uploaded file named FFDC9F0E-E2ED-4E38-9383-51429AE98562.jpeg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

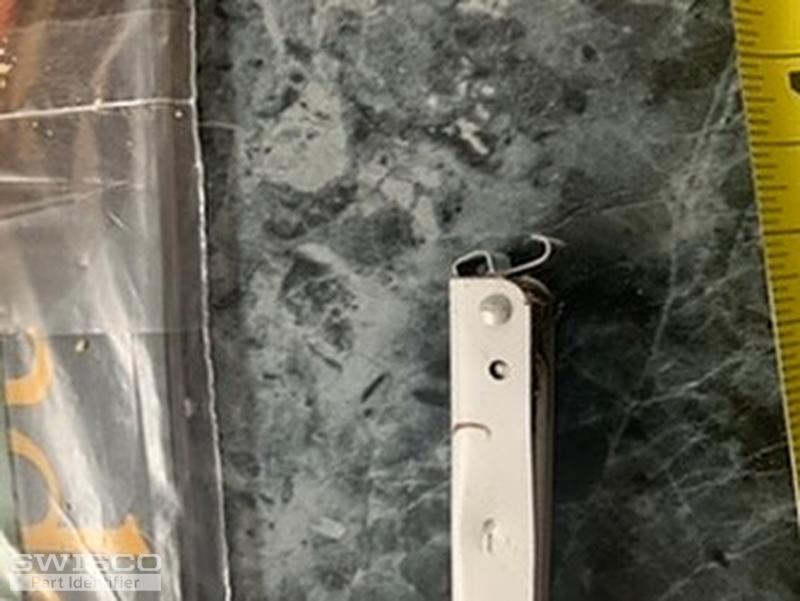

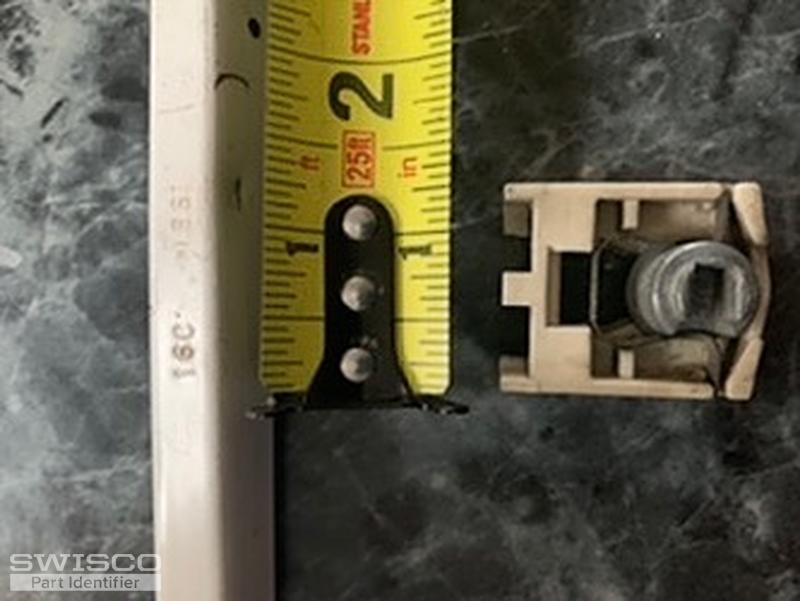

Thank you! Looks like you have a plain channel balance with a 16C stamp, which indicates that it is both 16" long and that a pair of them can lift sashes weighing 10 through 16 pounds. I recommend checking to confirm that information.

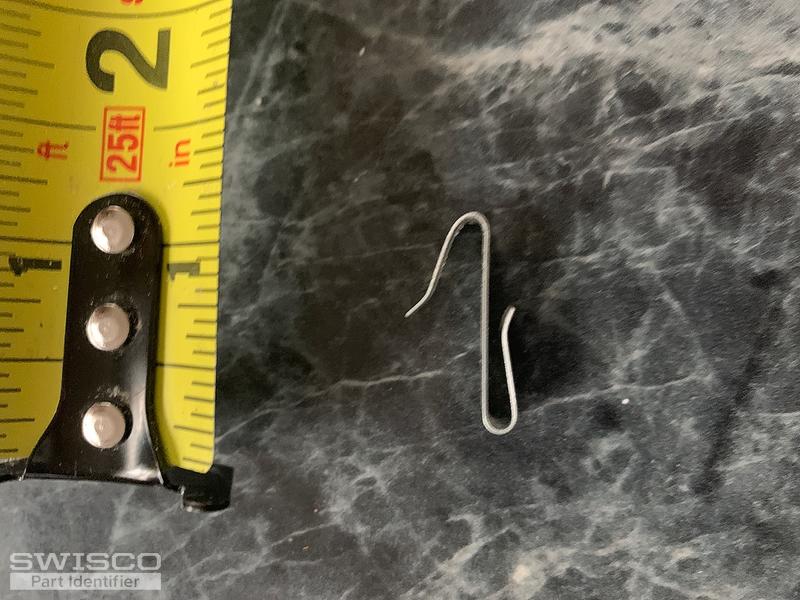

It also looks like you have a 15-170 clip at the bottom, which is designed to fit into the 15-169 pivot shoe. Does that look right to you?

If all that is accurate than your balance will have to be custom made. The 15-170 clip is not standard and we have to manually tie it onto the bottom of our Series 770. If that sounds good to you, please let me know how many balances you need and I can email you an order link and price quote for that quantity.

You can use that order link to add the balances to your cart, that way you can checkout at the same time as the pivot shoe, pivot bars, and tilt latches.

A handy person from Alsip Illinois says:
1 balance please. All sounds good
Profile picture of Tom
Tom from SWISCO responded:

Great! I'll email that to you right now. I'm also going to email you an additional order link for 2 balances. We usually recommend replacing both at the same time so that the newer one doesn't wear out too fast due to picking up the slack for the older balance. I figured I'd give you the choice, just in case.
