Double hung window, lower sash

A home owner from Atlanta, GA says:
the small connector (3 parts) is damaged on the left side. It also gauged the plastic channel. I included part number off the channel balance in one photo. I need the 3 damaged connector parts. How can I recondition the plastic channel so it is smooth and window will glide again?
Thumbnail of the uploaded file named damaged connectors 3.jpg
Thumbnail of the uploaded file named part no.jpg
Thumbnail of the uploaded file named damaged connectors 2.jpg

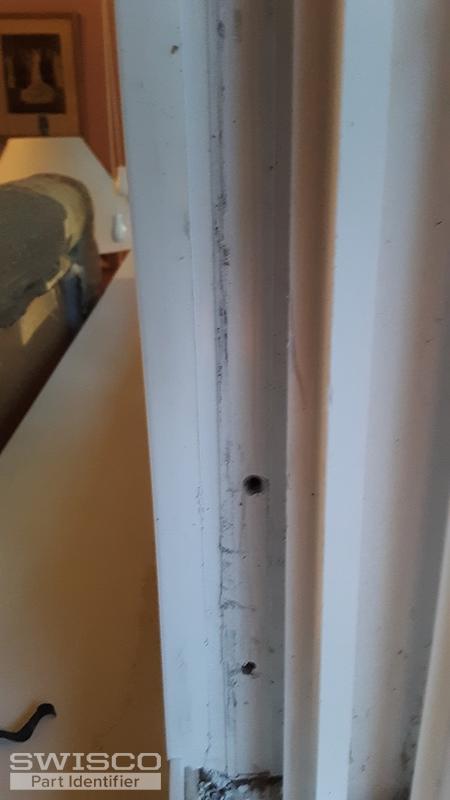

Thumbnail of the uploaded file named scratched gouged channel.jpg

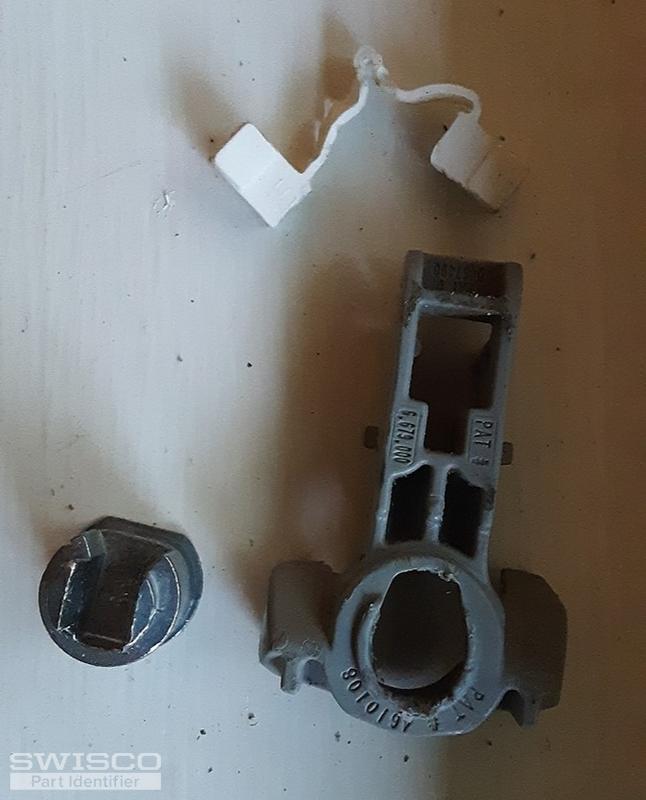

Thumbnail of the uploaded file named damaged connectors.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. This T-Lock Shoe looks like our 15-195. Go over the dimensions to ensure it matches what you have. As far as damage to the window track, I'm afraid there's not much you can do. You could try shaving sides of the shoe down so it glides more easily along the track, but you can't go overboard with this or else it'll be too loose in the channel. Let me know what you think.

How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
