Double hung window parts needed

A quick learner from USA says:
November 6, 2017

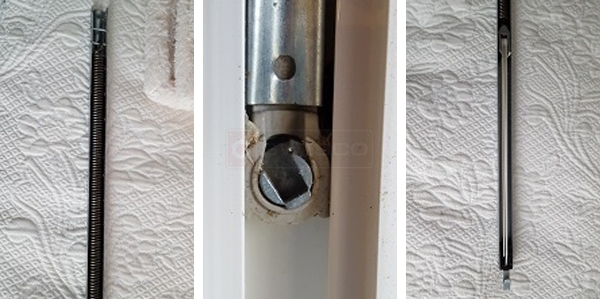

I have attached 3 pics of my window block and tackle tilt assembly. The assembly is in great shape with the exception of the plastic piece on the end that rides in the window tract and allows the window to tilt. This unit is 32 inches in length.

Thanks for your help in advance

Art
User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
November 10, 2017
The plastic piece you need is known as a shoe, specifically a T-lock shoe. Unfortunately, yours is not made anymore. Our 15-194 and 15-195 are close, but they will not fit in your metal channel due to the deep metal groove I see. You will need an all new balance custom made for you.

Before we begin, I will need you to confirm a few things. Is your shoe 1" wide or 1-1/4" wide? What is the stamp printed on your metal channel? Finally, how many of these did you need?
A quick learner from Maryland says:
November 10, 2017
I will get you the measurements for the shoe on Monday. Right now I need 2 whole assemblies for 1 window. The number stamped on the assembly is 32 C. Thats the only number on the block and tackle.
A quick learner from Maryland says:
November 13, 2017

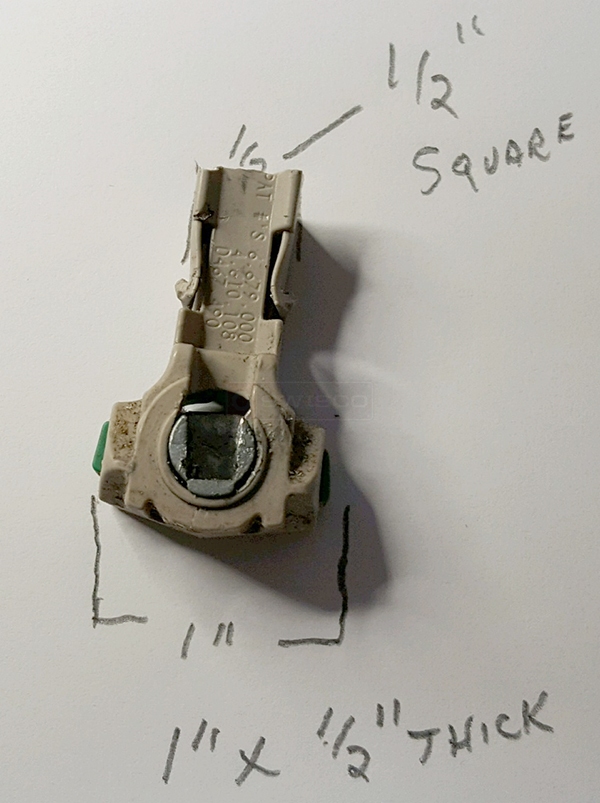

Tom here are a couple more pic of the t-lock shoes i have. The 15-195 is the same shape but is 1/4 inch wider.
User submitted photos of a balance shoe.
Profile picture of Tom
Tom from SWISCO responded:
November 17, 2017
Perfect, thank you. I will email you a custom balance order link for 2 of these immediately.
32" Series 795 Channel Balance
32" Series 795 Channel Balance
S795-32
$14.52
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
