Double hung windows spring

A handy person from Hillsboro, NH says:
October 18, 2022
Total Length: 33"
Spring Length: 15"
Markings: 338
338 EJ5 CMC 5
Thumbnail of the uploaded file named C8C4FC11-F040-41C9-B7AF-0FC6D8A8FD81.jpeg
Thumbnail of the uploaded file named 2912A351-8407-4A58-85B0-9885AB608EF5.jpeg
A handy person from Hillsboro, NH says:
October 18, 2022
The with of the spring housing is 9/16".
A handy person from Hillsboro, NH says:
October 18, 2022

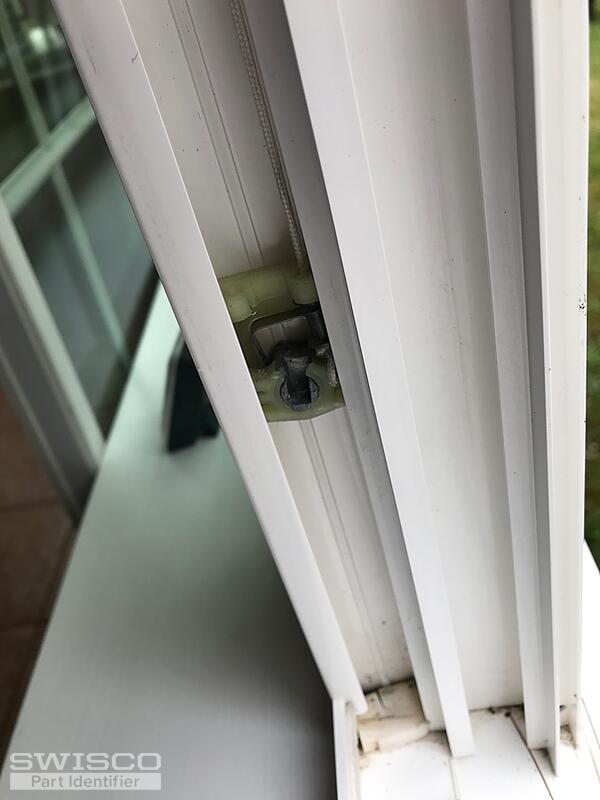

I also need help identifying the pivot lock shoe for the same window.

Size of shoe:
width: 1 3/8"
Length: 1 1/2"
Thumbnail of the uploaded file named B15C5FED-24CC-4A12-8D6D-5D4892F31CA5.jpeg
Thumbnail of the uploaded file named 890C0A62-6B77-4FF2-B8BE-70B1601457E1.jpeg
Profile picture of Casey
Casey from SWISCO responded:
October 20, 2022

Hello,

We can help but your balances will need to be custom-made using the S770-33 with the 15-044 attached to the cord. The stamped spring weight would be (33B) for a sash weighing between 14-20 lbs. We'll just need to confirm the number of balances that you need, with the minimum being two, to get an order link and price quote ready for you. As for your pivot shoe, see the 15-216. Thank you.

Alternate image for 15-216
Alternate image for 15-216
A handy person from Hillsboro, NH says:
October 20, 2022
Please quote for 2 balances, thank you.
Profile picture of Casey
Casey from SWISCO responded:
October 21, 2022

Great, we just sent over an order link and price quote for the balances you've requested. Take a look and let us know if you need anything else.

Please keep in mind that the pivot shoes are not included in the order link and would need to be added to your cart directly from the website. Thank you!
33" Series 770 Balance
33" Series 770 Balance
S770-33
$13.67
Balance Attachment
Balance Attachment
15-044
$0.74
T-Lock Pivot Shoe
T-Lock Pivot Shoe
15-216
$2.55
