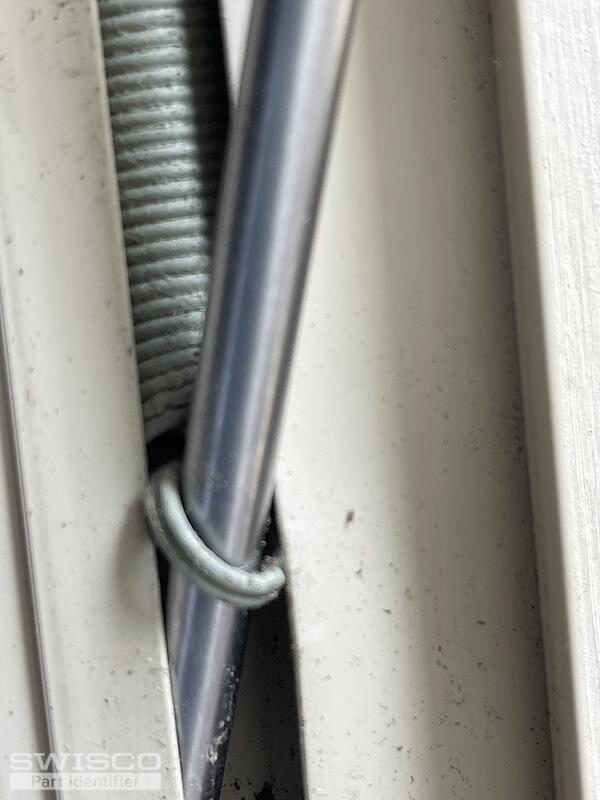

Double hung windows with spiral spring

A quick learner says:

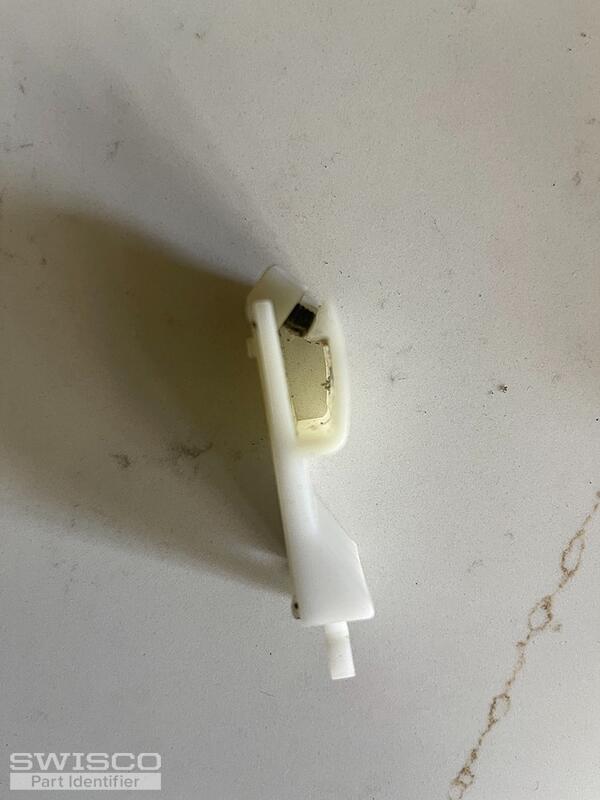

I am looking for the saddle piece
Thumbnail of the uploaded file named 8C6607FE-CE64-469A-8EC6-2B0967CF4934.jpeg
Thumbnail of the uploaded file named 9A754204-251C-4558-9E99-A6C251E80CF7.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hello there!

Are you looking for either the 15-218 or 15-220 pivot balance shoe? Compare our dimensions to yours and see what you think. To replace them in your vinyl jamb liner, follow these directions. You would first tilt in and remove both the bottom and top sash. Then, you can pull away the vinyl jamb liner from the window frame. Slide out the balance and old shoe and reinstall the new shoe and balance in to the jamb liner. Now, install the jamb liner and window sashes.

15-218 : Pivot Balance Shoe, 3/8
Pivot Balance Shoe, 3/8"
15-218
$3.07
VIEW >
15-220 : Pivot Balance Shoe, 9/16
Pivot Balance Shoe, 9/16"
15-220
$3.15
VIEW >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
