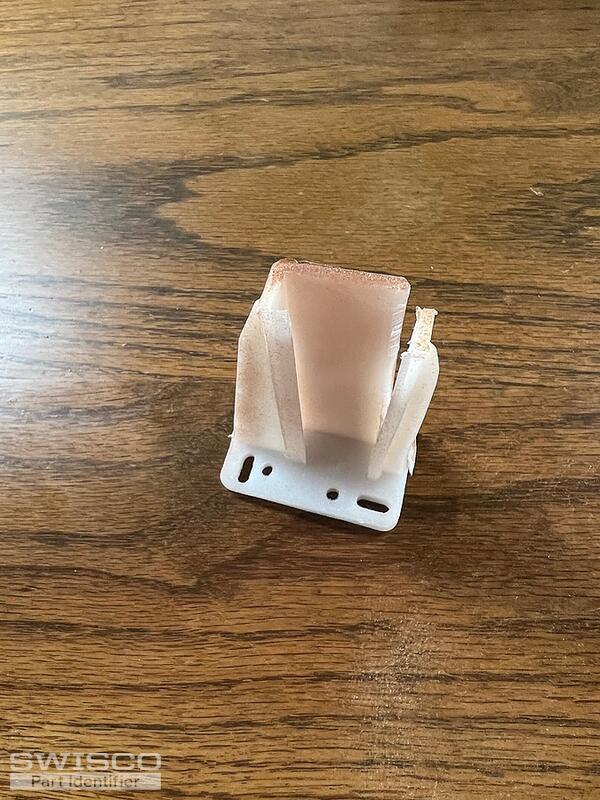

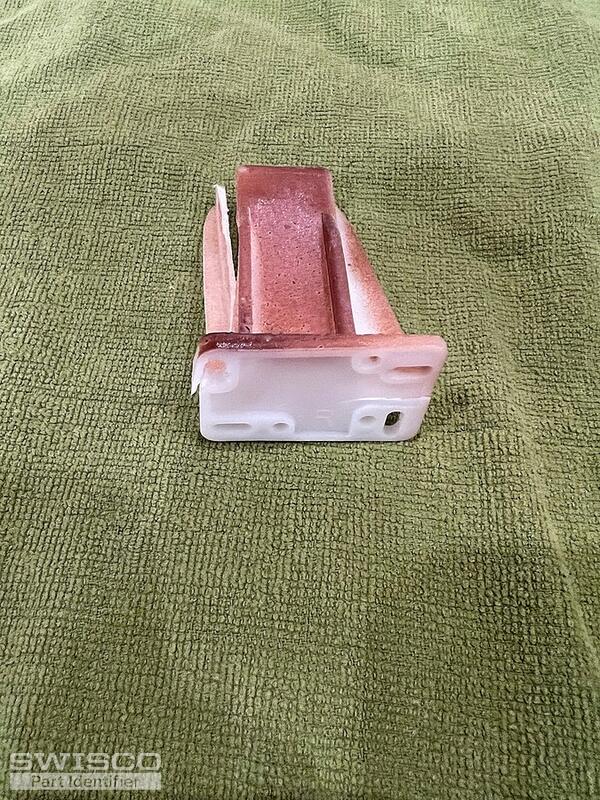

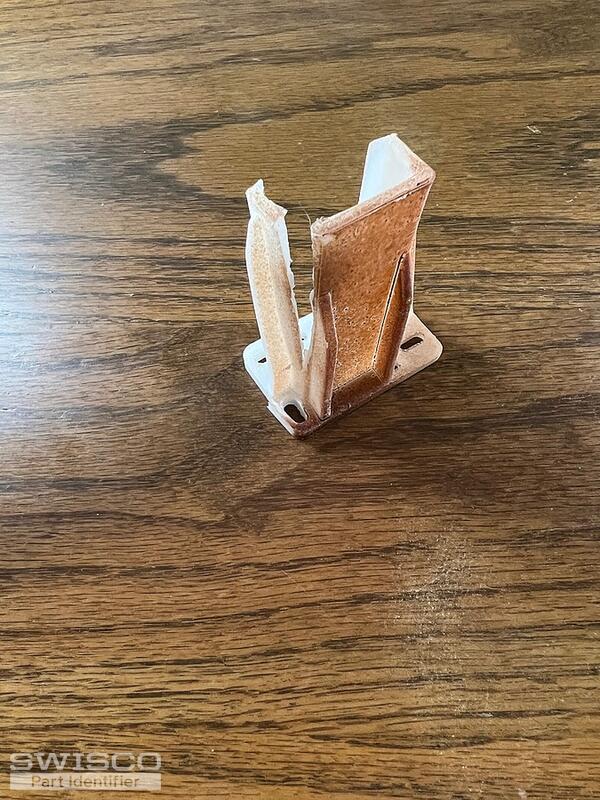

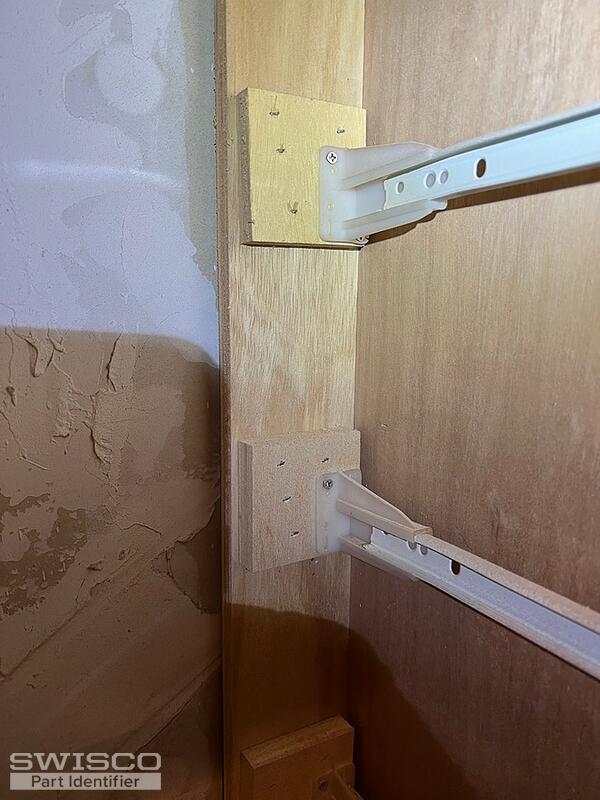

Please let me know which of your parts I should order to match the plastic bracket (rear drawer tray socket?) shown in these photos. 2"H x 1-1/4"W x 2-7/8". I need 4 pairs.
Thank You!
Steve
Drawer Glide - Rear Drawer Tray Socket
Handy Person from Dallas, TX
Nov 20, 2022 6:24 pm
4 user uploaded images
7 Replies
Casey from SWISCO
Nov 28, 2022 2:01 pm
Hello,
We'd be happy to help but we would need you to write out the exact height and width of the opening that accepts the drawer track since it seems like your measurements are of the back installation plate. Thank you!
Handy Person from Dallas, TX
Nov 28, 2022 2:54 pm
The inside dimensions of the opening in the socket that accepts the drawer track appears to be 13/16"H x 3/8"W x 2-3/4"D.
Casey from SWISCO
Nov 28, 2022 3:14 pm
Thanks for getting back to us. Take a look at the 32-139 bracket pair, which matches your dimensions.
Front view of 32-139
Casey from SWISCO
Nov 28, 2022 4:04 pm
The depth is not a determining factor since the drawer track will be supported regardless of the projection. The height and width of the opening are the key details that we consider with these drawer brackets.
Handy Person from Dallas, TX
Nov 28, 2022 4:18 pm
