Drawer Under mount Rear Socket

Start a new Discussion

Home Owner

Jun 6, 2017 3:19 pm

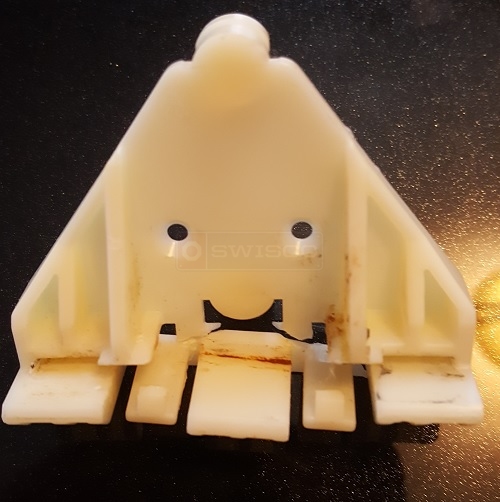

Looking to find this part to replace for this broken one for my big kitchen drawer.

Thanks.

5 Replies

Tom from SWISCO

Jun 9, 2017 8:23 am

I've been having trouble finding this. Can you show me a picture of the drawer track that interacts with this? I'd also like to know the track's width and thickness. Thank you!

Home Owner from trafford pa

Mar 16, 2023 8:23 pm

I'm not the original posting person but looking for the same part. It is approximately 1¼' wide by between 3/8 and 1/2 ' thick.
The cabinets are Waypoint. attached is a picture of my good one.

1 user uploaded image

Tom from SWISCO

Mar 17, 2023 1:06 pm

Thank you for this photo. Unfortunately, we've never been able to find a good replacement for this guide. We have tried multiple potential solutions but so far nothing has succeeded.

I am sorry for the inconvenience.

Home Owner from trafford pa

Mar 20, 2023 9:17 am

Thanks, looks like I'm at the manufacturers mercy through my cabinet place.
