Drawer center slide plastic parts broken, need to replace

Home Owner from Kailua-Kona, Hawaii

Hi,

I'm trying to replace 6 broken plastic parts on my drawer center slides, but since all six are broken, I don't know what the part looks like. I'm thinking it might be the Kenlin Case Runner, Product Code: 32-076, but I'm not sure. Please look at the photo and see what you think. Thank you for your time!

Kevin

1 user uploaded image
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Kevin. It's very possible that the 32-076 is what you want, but as you already noted the original part is far too damaged to be sure.

Would it be possible to see the socket on the back of the drawer? That might allow me to verify. If I can see the socket, I should be able to garner what case runner is compatible.

Home Owner from Kailua-Kona, Hawaii
Hi to Tom from SWISCO.

Thank you for taking the time to look into this! You're awesome!

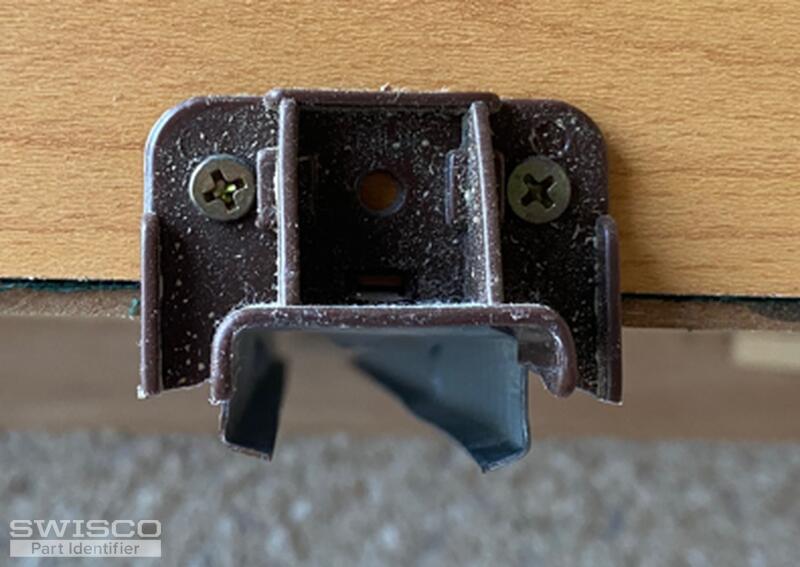

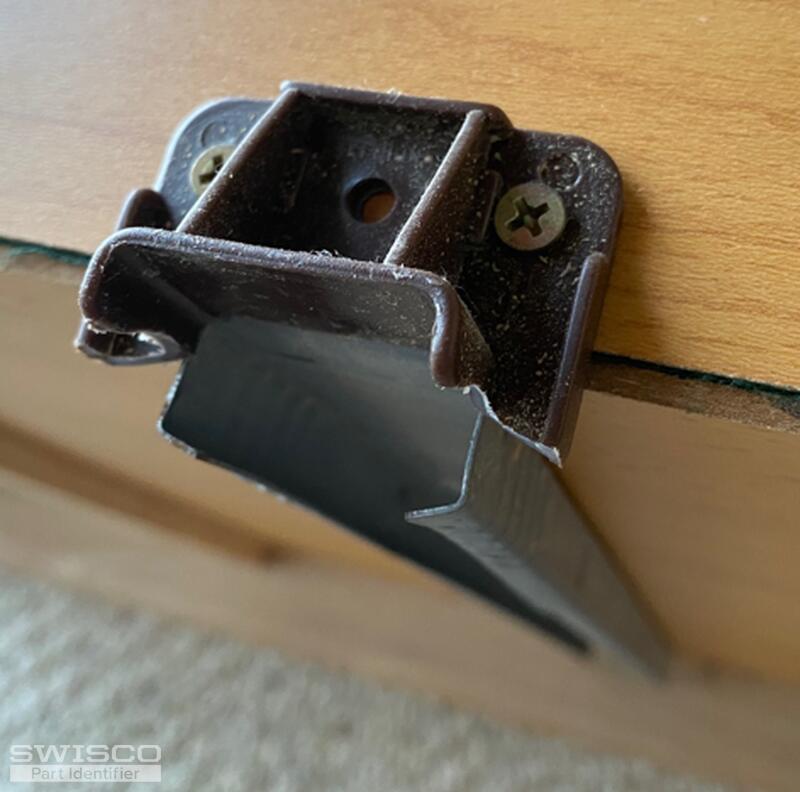

I'm attaching photos of the still attached part at the back of the drawer. Aslo attached are photos of a piece of the broken off part that goes inside the center slide.

Cheers!
Kevin
4 user uploaded images
Home Owner from Kailua-Kona, Hawaii

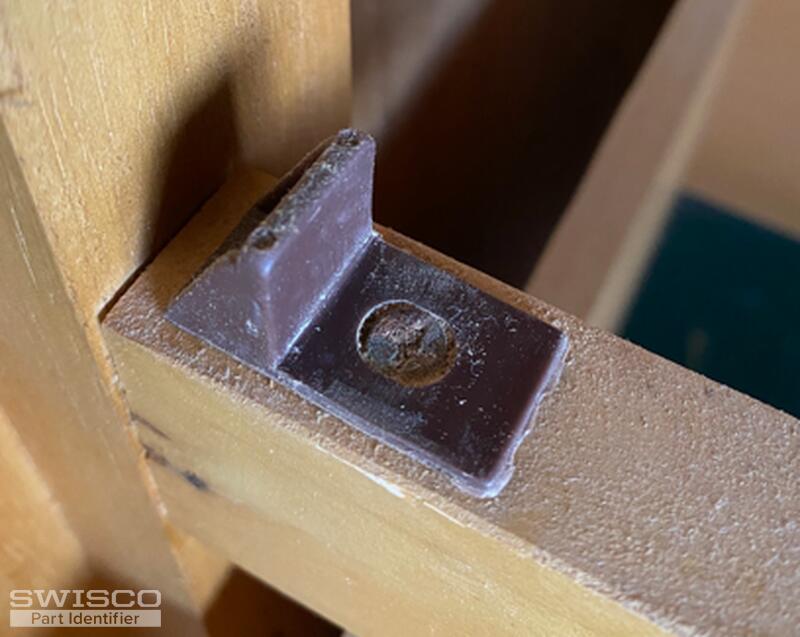

I will also need to replace some of the side spacers like in the photo.

Thanks again.

Kevin
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! These pictures are a huge help. What you have here is the 82-081 Rite Trak I socket, which means that our 32-076 should be fully compatible without issue.

Regarding the corner glide, we don't sell this exact style but customers frequently use the 32-083 as an alternative. It has a long history of working well in this kind of application, so that would be my top recommendation.
