Drawer guide bracket

Quick Learner from Hainesport, NJ

Oct 7, 2018 1:42 pm

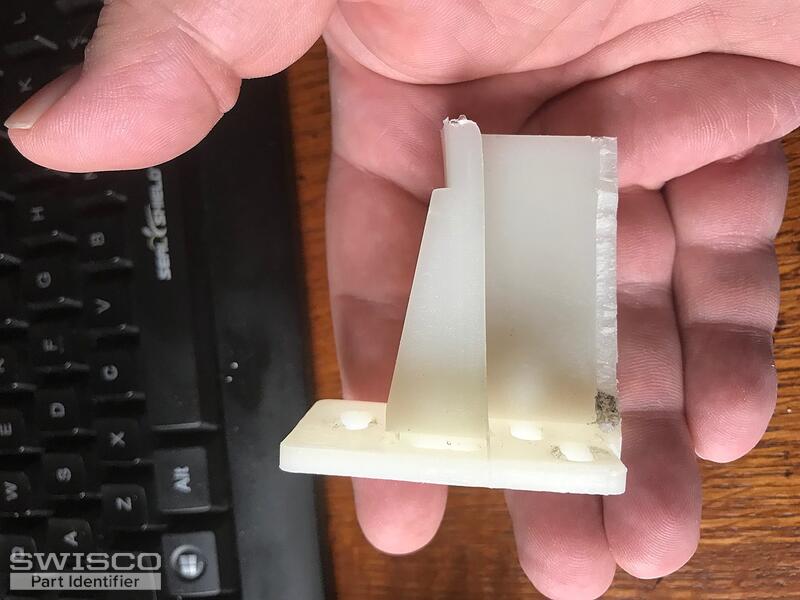

This is the rear bracket that holds a drawer guide track in a kitchen base cabinet.
The rear mounting surface is 1 1/4" x 2 1/8. Projection from the rear of the mounting surface is 2 1/4"
The height of the channel is approximately 15/16"; I'm measuring to where I think the edge of the broken piece is.
Identifying characters are a large "G" and below that, "S600"

Thank you for any help you can provide!
Steve

4 user uploaded images

4 Replies

Casey from SWISCO

Oct 12, 2018 9:39 am

Please see SWISCO product code 32-119, Grass 6600 adapter bracket. Compare your dimensions to ours to see if this will be a good replacement for your drawer sockets.

Home Owner from Flossmoor, IL

Oct 29, 2018 10:03 am

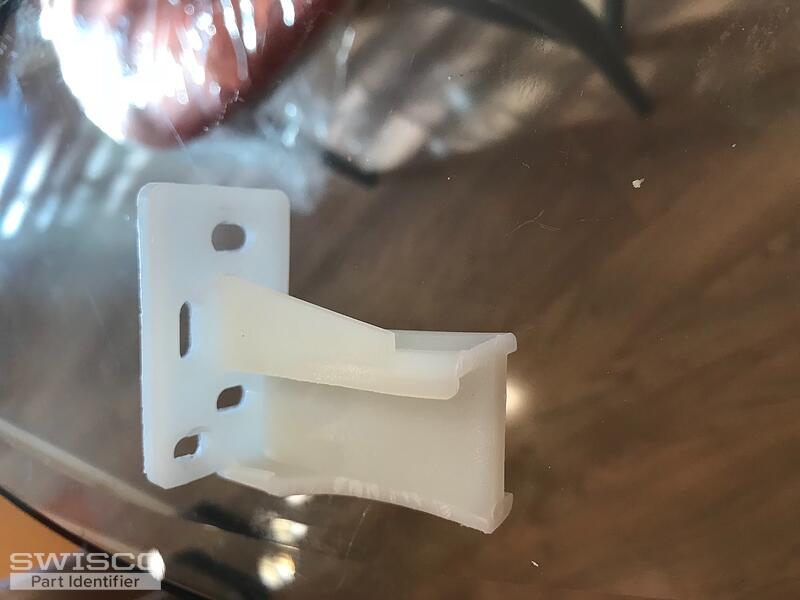

Wanting to make sure I'm ordering the right piece for replacement. Thanks in advance!

1 user uploaded image

Tom from SWISCO

Oct 30, 2018 8:22 am

I'm afraid this new picture doesn't confirm one way or the other. The only way to know for sure if the 32-119 is the right match is to compare our dimensions to yours.
