Drawer slide fit

Quick Learner from Pennsylvania, USA
My overall drawer length this 21 3/8 inches. Will this slide fit? The overall cabinet depth is 23 1/4
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

The 21-061 is only 1/8" larger than your overall drawer depth, so my concern is that it doesn't have enough clearance out the back of the drawer to fit in a socket. Can you tell me what the length of the original track is?

Quick Learner from Pennsylvania, USA

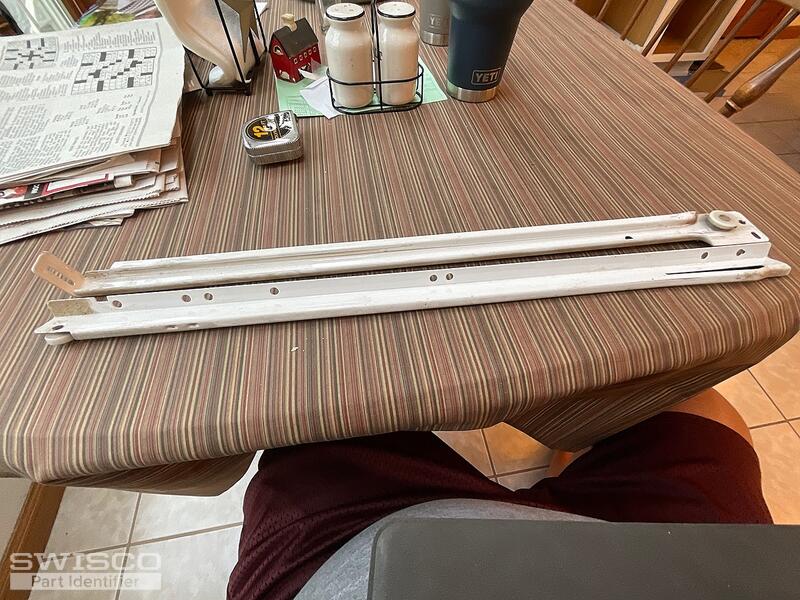

In the photo , the top rail, which attaches to the cabinet box is 23 inches overall..the other slide that mounts to the drawer is 22.5 inches overall
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! I can see why you're pursuing the 32-061 now. Our 32-062, being the next size up at 23-5/8", would likely be too long, since your total cabinet depth is only 23". I have heard of customers who cut the end of the track down with a hacksaw but that's obviously not ideal.

We unfortunately don't have anything in between. Based on the specs given, I do think that our 32-061 would be too short for your drawer, though I also think the 32-062 would be too long. If either is going to work, it's going to take some adaptation.
