Drawer socket

Quick Learner from Muscle Shoals, AL

Apr 22, 2019 2:04 pm

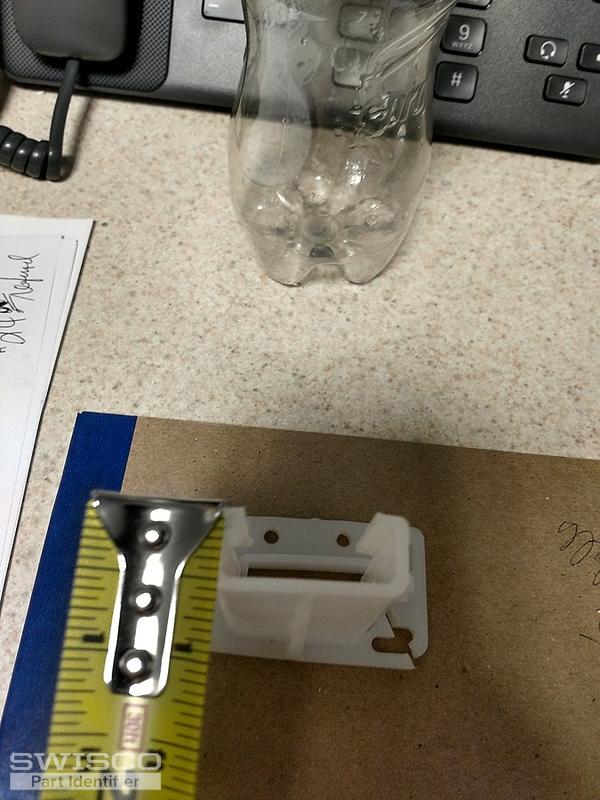

I have ordered several replacements and not have been the correct size. The issues I've had is they are too narrow for the slide to get into the bracket. There is no markings or any identification on the part. If you could help I would appreciate it.

4 user uploaded images

4 Replies

Bob from SWISCO

Apr 23, 2019 12:18 pm

To start, take a look at our 32-014. Compare the dimensions listed and see if you think this might be what you need.

Quick Learner from Muscle Shoals, AL

Apr 24, 2019 5:28 pm

The bracket you have suggested is definitely too narrow for the slide to fit into. The opening for the slide to slide into is over an inch wide. The suggested one is 7/8"

Bob from SWISCO

Apr 25, 2019 7:35 am

Hm, if your socket size is over 1", I'm afraid we have nothing that will match that. Your best option in that case would be to order new drawer slides. See the 32-056 and various other sizes I have listed on this page. These slides work well with the 32-018 bracket pair. Take a look and see what you think.
