Dua ply gem need opening mechanism

Question

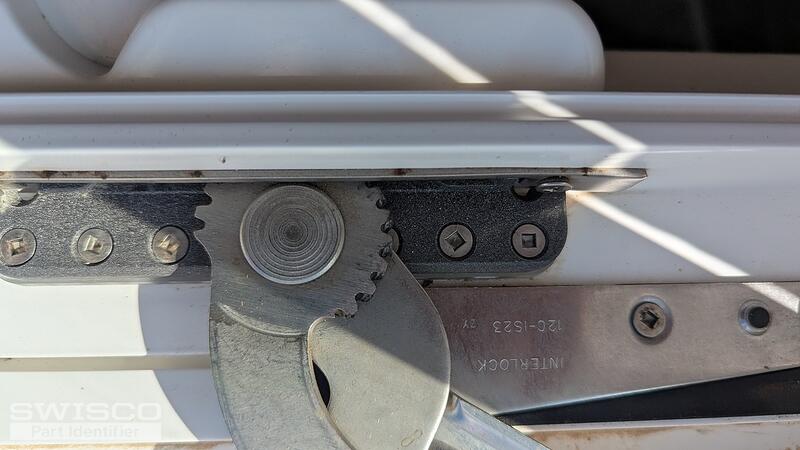

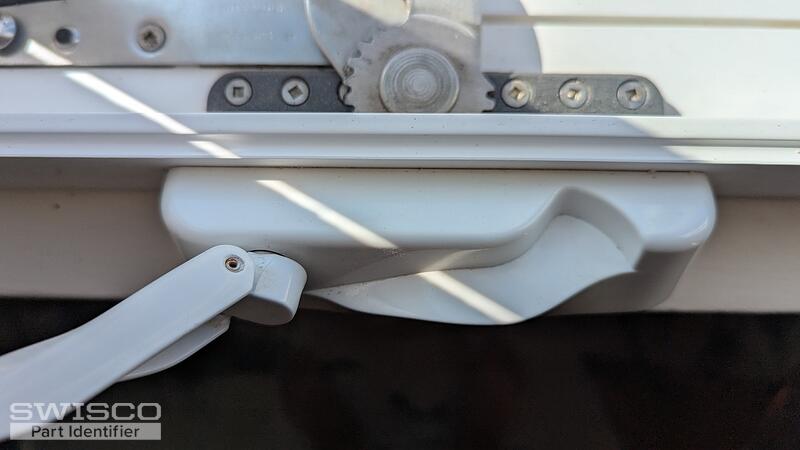

The handle snapped off the drive shaft for opening mechanism on the right side window. The parts photographed are of the left side. So I will need the opposite of the left side drive mechanism.

Casey · Accepted Answer

Hello,

Your operator resembles one of the Encore pairs shown in our video below. The determining factor would be the fitting used to attach the straight arm to the sash. Both sets are used with the 39-375 and 39-376 handles with covers, but you'll need to confirm if just the handle is broken or if the metal spline it attaches to broke off of the base. If the spline is broken, the entire operator assembly will need to be replaced, not just the 39-375 handle with cover. Thanks for posting!
