Dual arm Truth window crank

Question

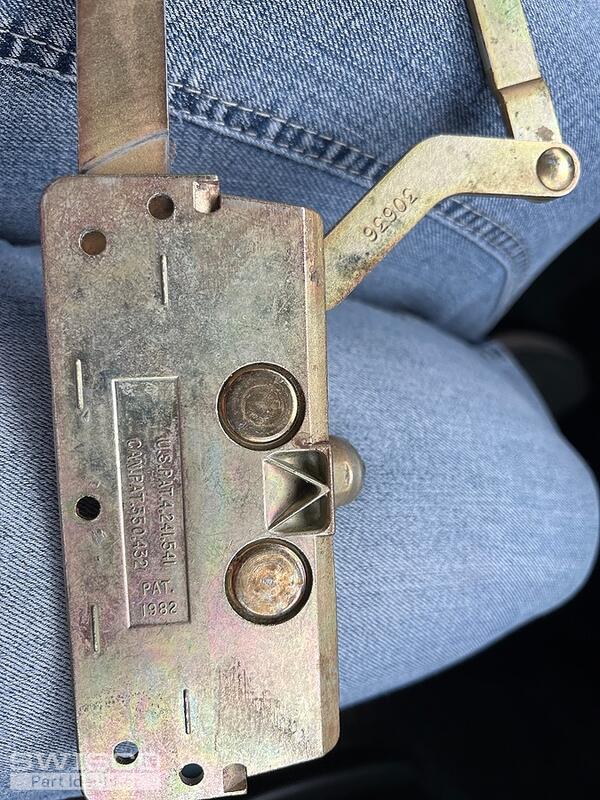

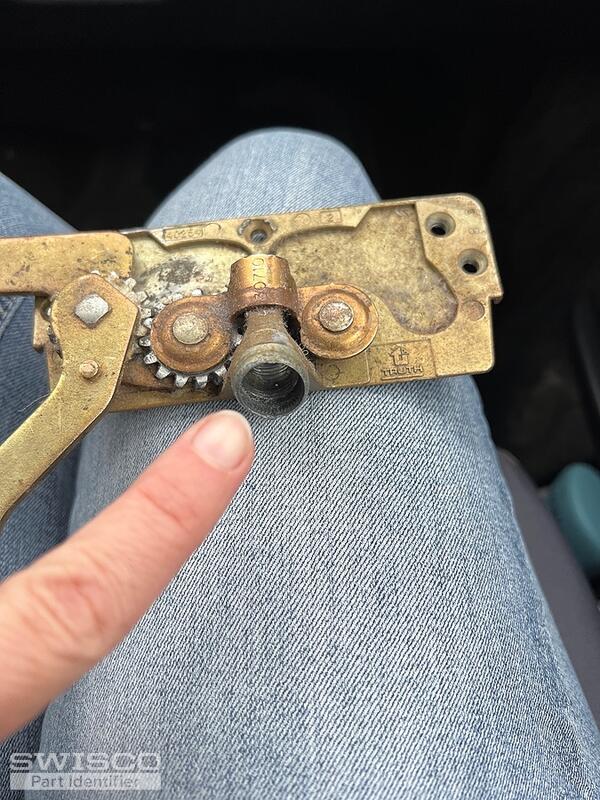

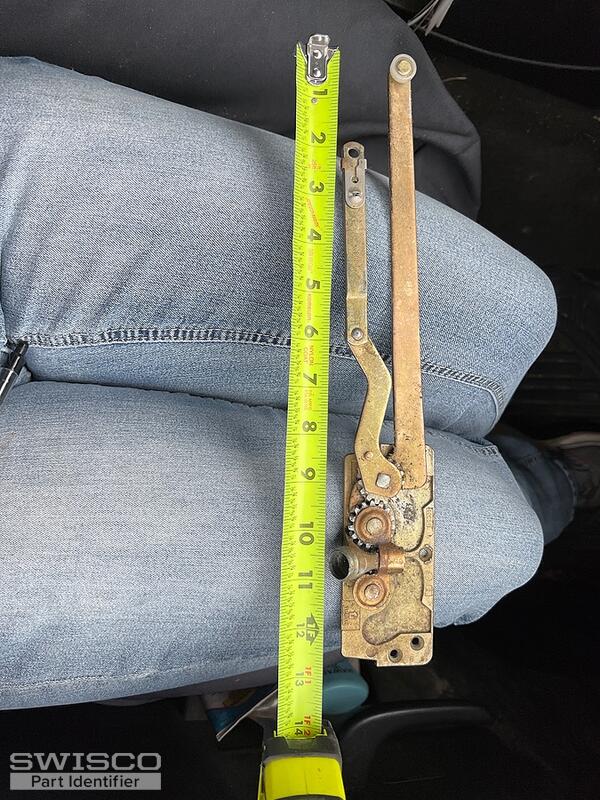

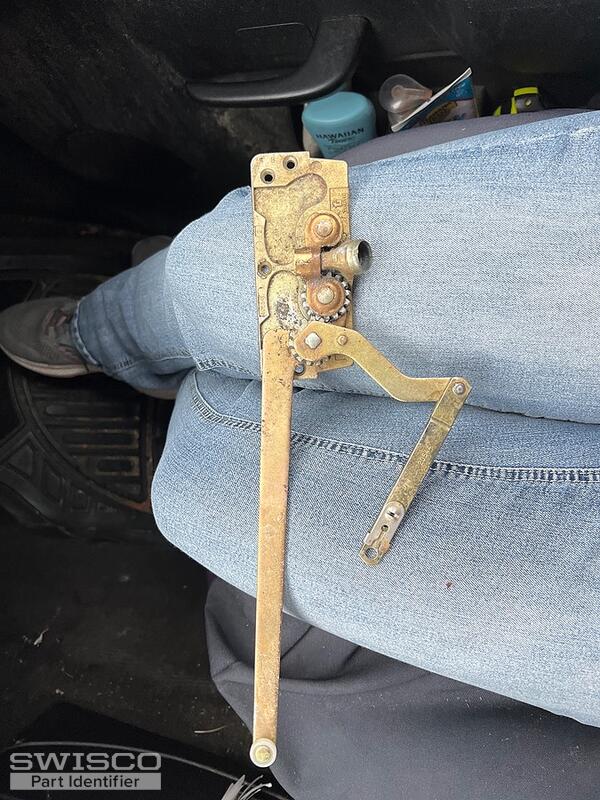

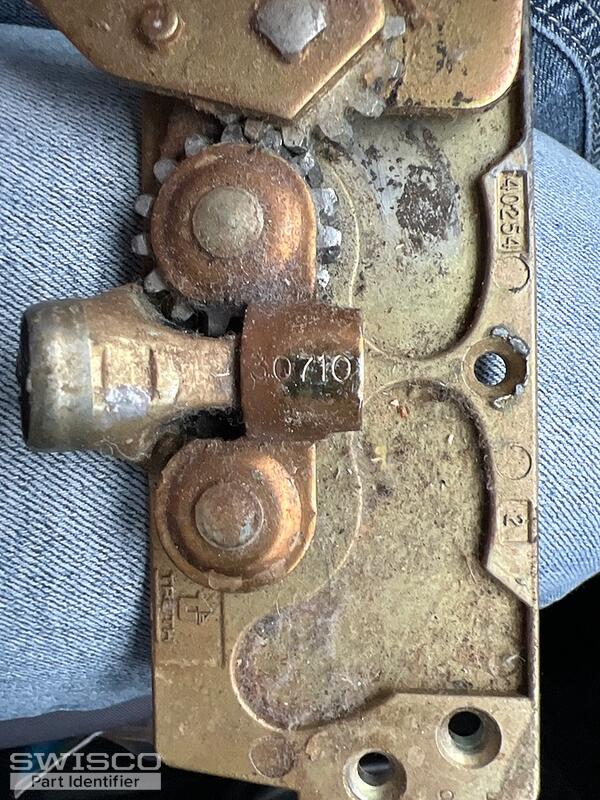

I am looking for a truth brand dual arm window crank replacement I need about 4 of them. The long arm is 9-3/8" long and the short arm is 7-5/8" long. The base plate is 4-7/8" x 2-1/16".
Can you please help me find these parts?

Jasmine · Accepted Answer

Hey there,

Thanks for posting! The operator you have looks like the 39-031 EntryGard Dual Arm Operator. The opposite handed version is the 39-032.

I believe your short link may have a 4-7/16" length. Be sure to double check and compare the dimensions below to confirm that this is the correct replacement.

I've also tagged a few of the compatible handles and covers below.

Dimensions for 39-031
